built-iN cutout DimeNsioNs
“ISLaNd” StrUCtUrE CoNfIGUratIoN optIoNS
There are many available options for locating the major components of your Island
structure.Your major components are:
1)
The Built in Grill
2)
Gas supply enclosure
3)
Optional Side burner accessory
The 3 common options (A, B, C) are illustrated in the “Island Structure Configuration
Options” table.
note: Gas line limitation
The gas supply hose from grill manifold to gas supply bulkhead must not exceed 58"
(147cm). The 3/8 (9.52mm) Side Burner accessory hose (not included) must not exceed
58 (147cm).
note: iF YoU HaVe PURCHaseD a siDeBURneR:
If you have purchased a Side Burner accessory with your Summit
®
gas grill, Weber
®
recommends that you read the
SUmmIt
®
bUILt-IN SIdEbUrNEr INStaLLatIoN/
owNEr’S GUIdE before designing your “island” structure.
C
A
B
3
3
3
1
1
1
2
2
2

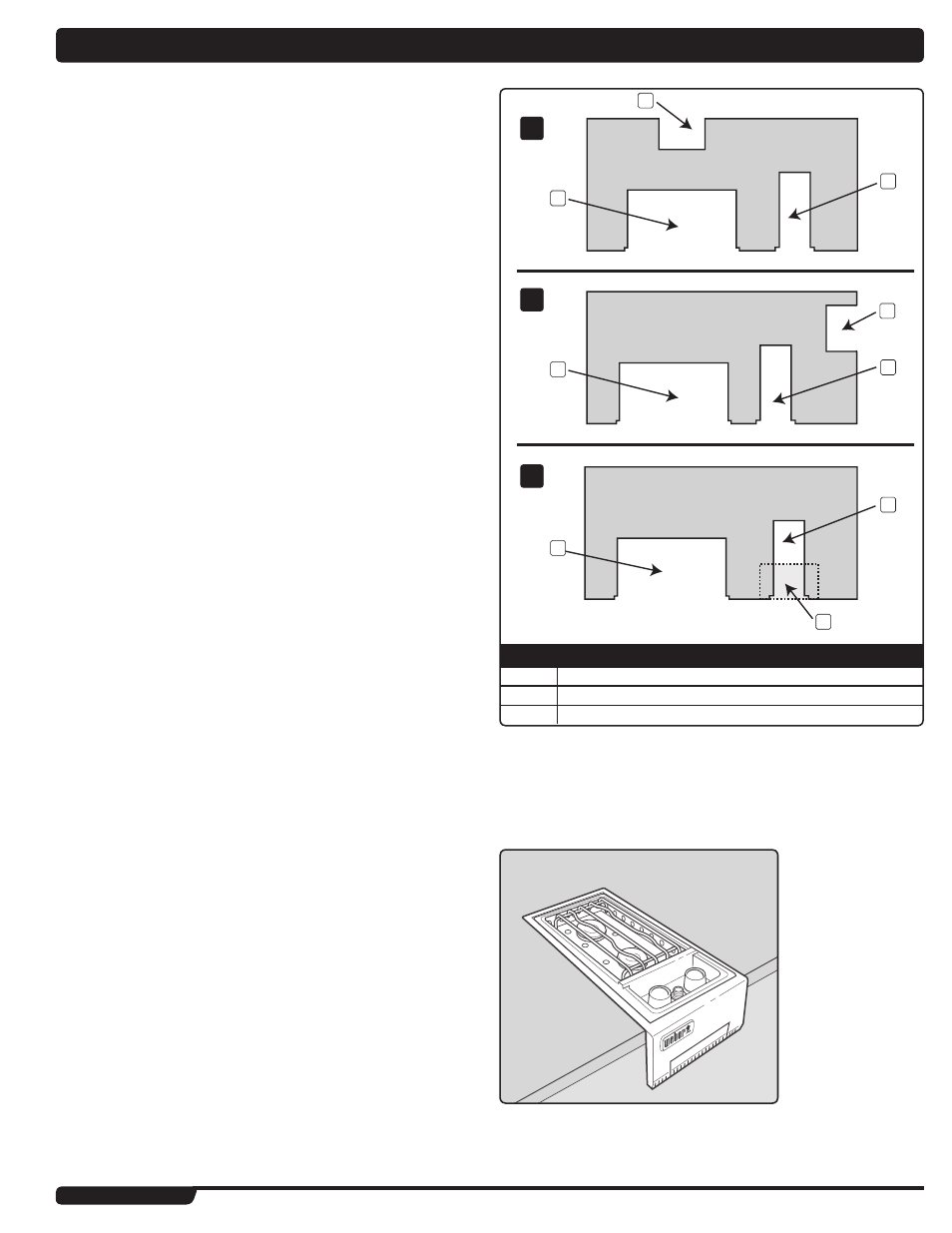

“islaND” structure coNFiGuratioN oPtioNs
1
Summit
®
4-burner/6-burner grill
2
Gas supply
3
Optional sideburner accessory
