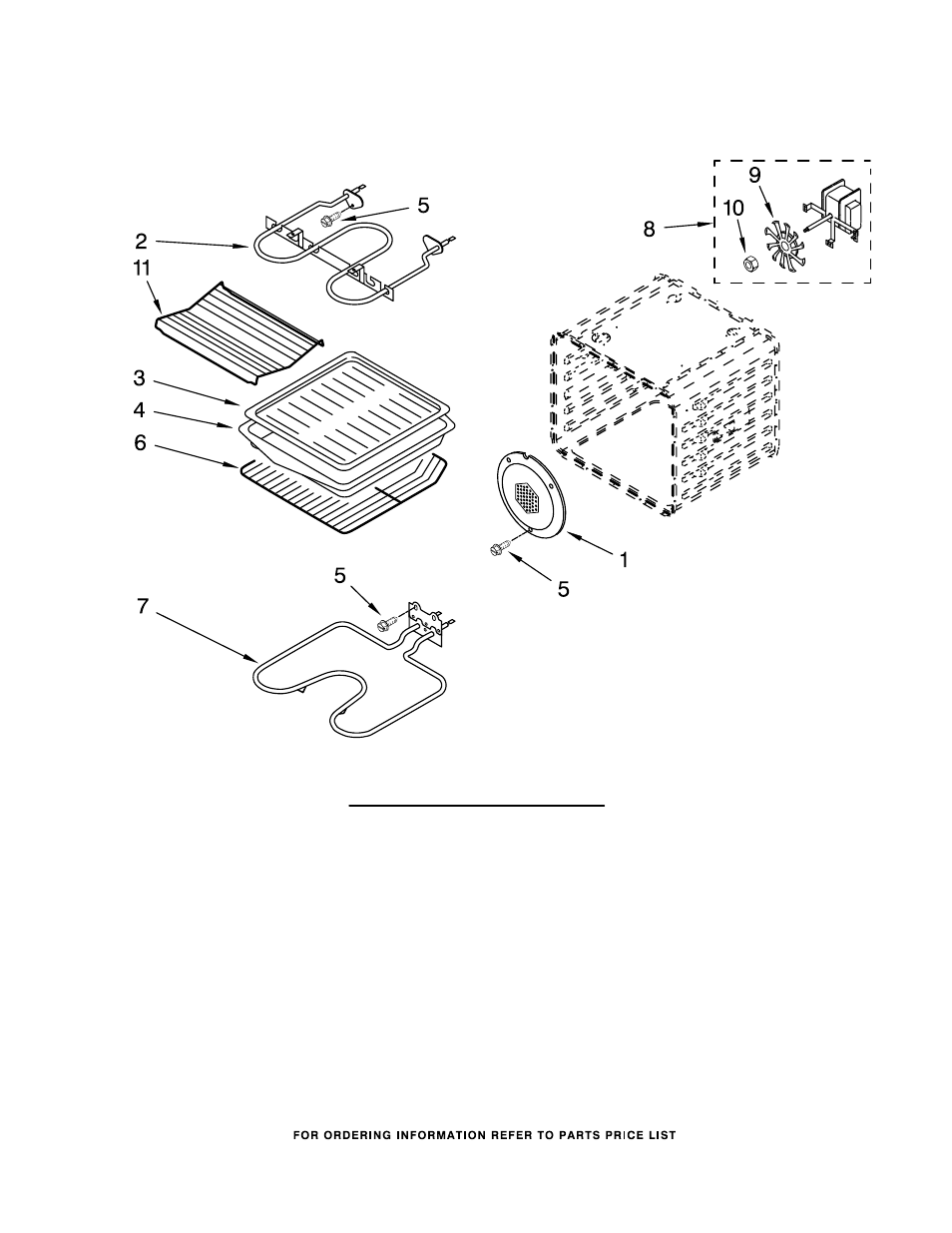

INTERNAL OVEN PARTS
7
For Models: GY398LXPB02, GY398LXPQ02, GY398LXPT02, GY398LXPS02
(Black) (White) (Biscuit) (S.Steel)
8186756
Illus. Part
No. No. DESCRIPTION
1
4448988 Cover, Fan
2
9760771 Element, Broil
3
4457277 Grill, Broiler
4
4457276 Pan, Broiler
5
4449154 Screw
6
4448717 Rack, Oven
7
9760766 Element, Bake
8
4451583 Motor, Convection
9
4452226 Blade, Fan
10
4452227 Nut
11
3181534 Rack, Roasting
