Weider 831.14622.0 - Manual (Page 22)

22

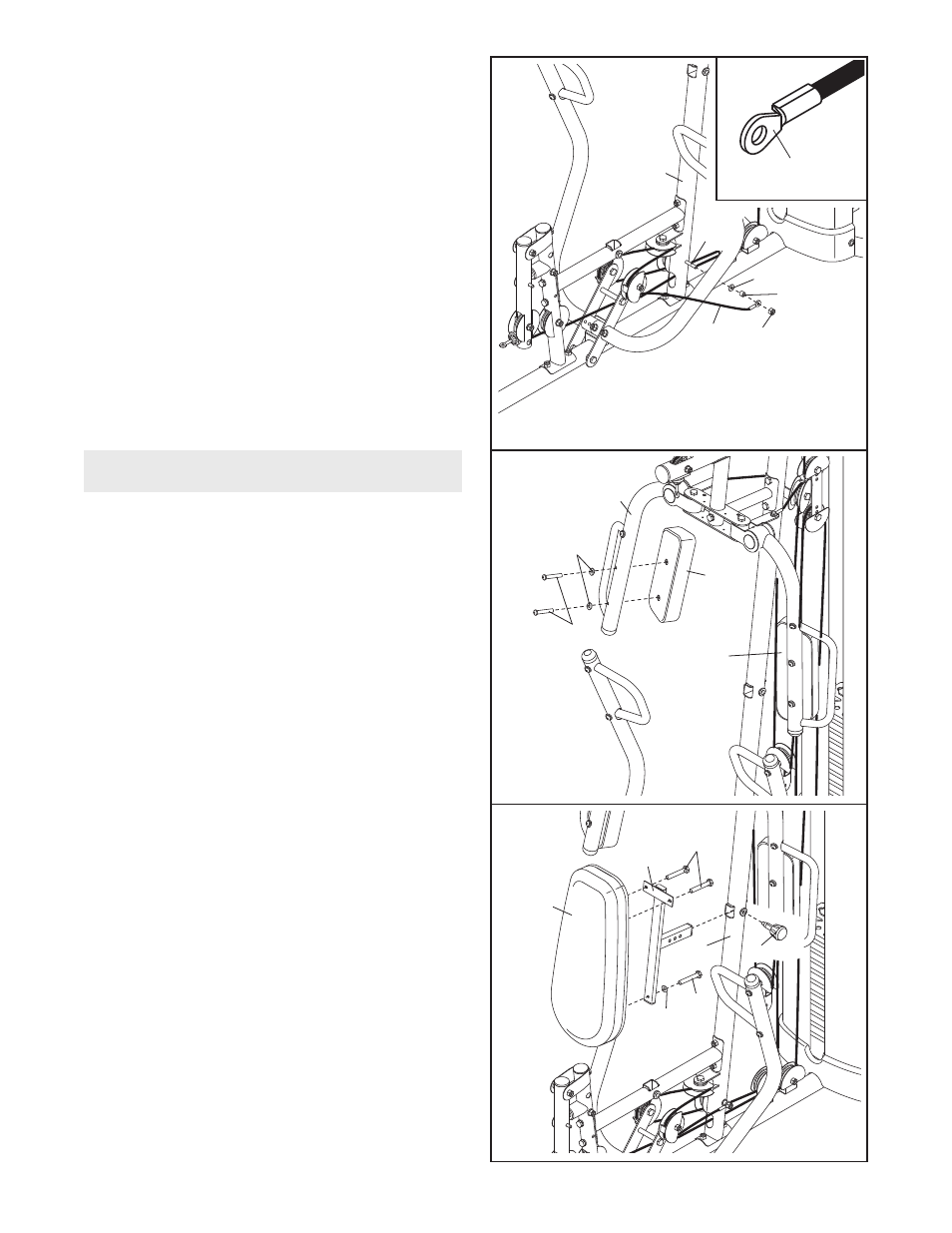

39. Attach the Leg Lever Cable (51) to the Upright (2)
with the M10 x 120mm Bbolt (115), an M10
Washer (80), a 7mm Spacer (111), and an M10
Nylon Locknut (77).
Make sure the flat edge of
the Cable is against the Spacer.
40. Attach the Right Butterfly Pad (35) to the Right
Butterfly Arm (26) with two M6 x 60mm Button
Screws (91) and two M6 Washers (114).
Repeat this step for the Left Butterfly Pad (34).
41. Attach the Backrest (31) to the Backrest Frame
(7) with two M6 x 16mm Screws (88), an M6 x
32mm Screw (89), and an M6 Washer (114).
Insert the Backrest Frame (7) into the Upright (2)
and tighten the Backrest Adjustment Knob (53)
into the Upright.
Make sure the Adjustment
Knob passes through one of the holes in the
Backrest Frame.
39
40
26
35
34
114
91
2
51
77
80
111
41
114
89
53
2
7
88
31
Seat Assembly
Flat Edge
115
