Weider 831.159820 User Manual
Page 15

15

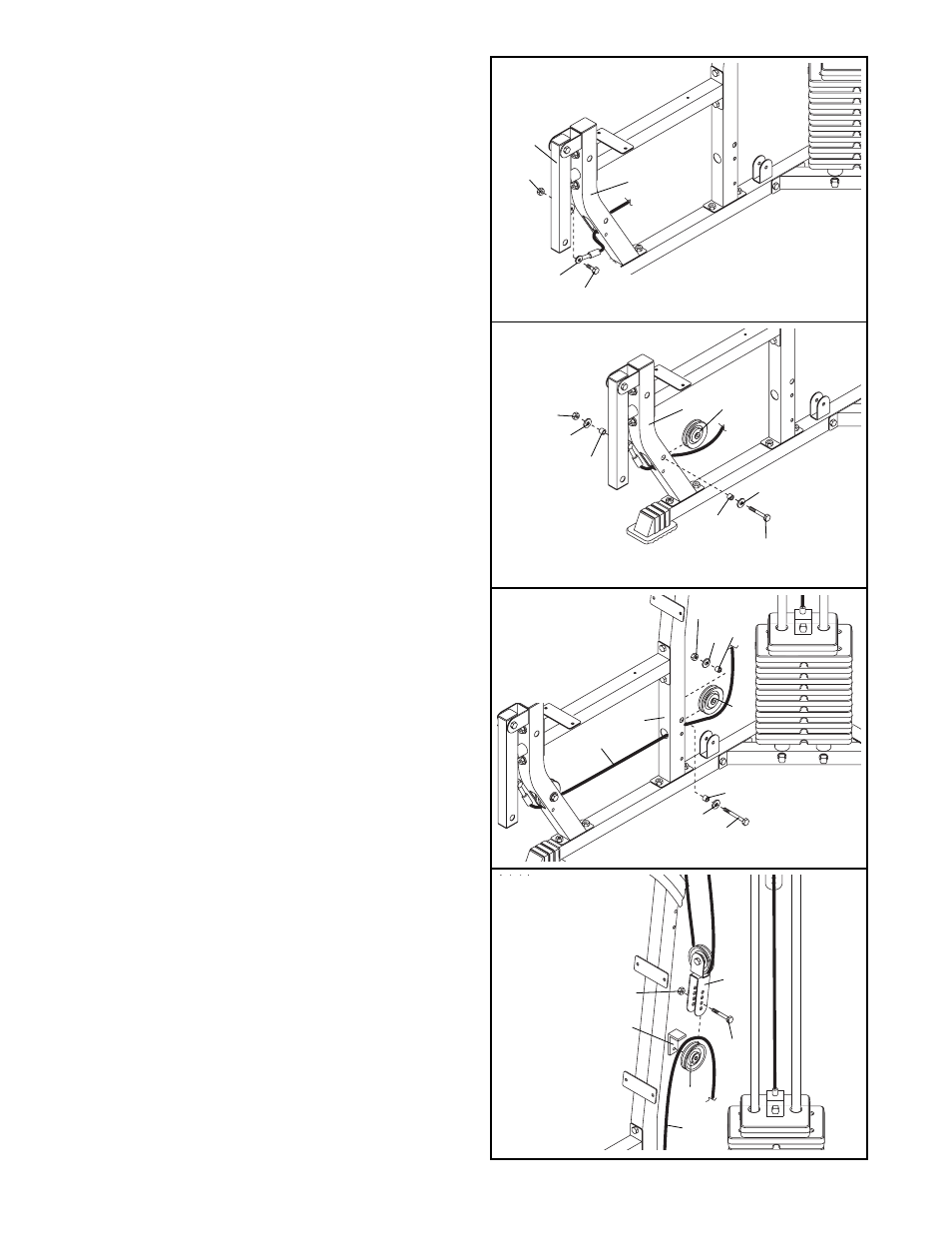

35. Route the Leg Lever Cable (96) through the Right
Upright (6) and around a 3 1/2” Pulley (38).
Attach the Pulley inside the Upright with a 3/8” x
2 3/4” Bolt (81), two 3/8” Washers (75), two 1/2”
Spacers (34), and a 3/8” Nylon Locknut (70).
36. Wrap the Leg Lever Cable (96) around a 3 1/2”
Pulley (38). Attach the Pulley and a Cable Trap
(91) to the second set of holes from the bottom of
the indicated Double “U”-Bracket (56) with a 3/8”
x 2” Bolt (62) and a 3/8” Nylon Locknut (70). Be
sure the Cable Trap is turned to hold the
Cable in the groove of the Pulley.
34. Attach a 3 1/2” Pulley (38) inside the Right Leg
(73) with a 3/8” x 2 3/4” Bolt (81), two 3/8”
Washers (75), two 1/2” Spacers (34), and a 3/8”
Nylon Locknut (70).
33. Locate the Leg Lever Cable (96). Route the
eyelet end of the Cable through the Right Leg
(73) and attach it to the Leg Lever (4) with a 5/16”
x 1” Shoulder Bolt (78) and a 5/16” Nylon Locknut
(71).
73
4
71
78
96
33
34
34
81
73
38
75
75
70
34
75
34
38
6
96
81
34
35
96
62
38
91
56
70
36
75
70
