Weider 831.150280 - Manual (Page 7)

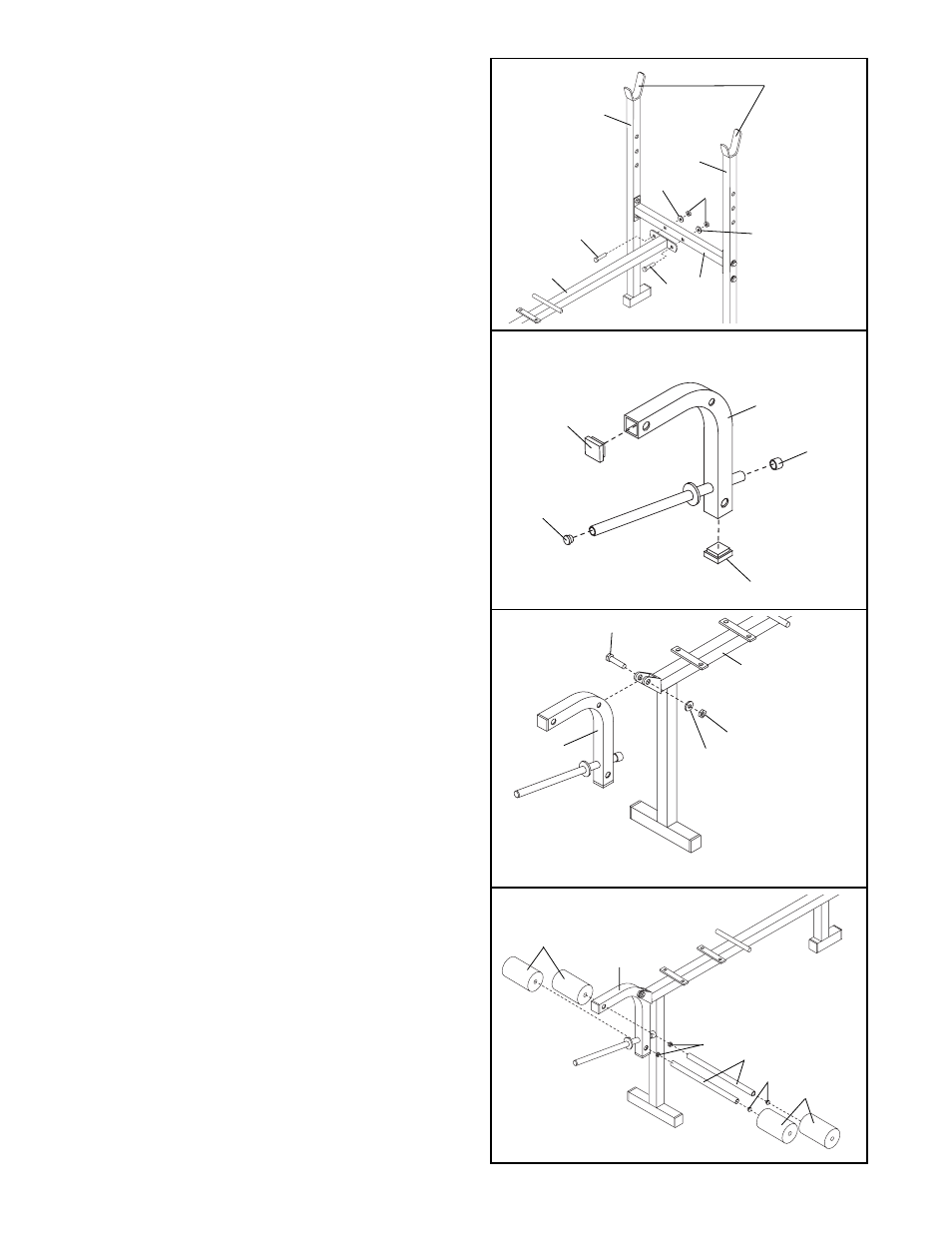

3. Be sure that the Uprights (1) are oriented as
shown. The high side of the weight rests must be
on the side indicated. Attach the Frame (2) to the
Crossbar (3) with two M8 x 57mm Bolts (14), two M8
Washers (12) and two M8 Nylon Locknuts (13).
4. Tap a 30mm Square Inner Cap (22) into each end
of the Leg Lever (4).
Tap a 1” Round Inner Cap (24) into the indicated
end of the weight tube. Tap the 1” Angled Round
Cap (20) onto the other end of the weight tube.
5. Lubricate the M10 x 63.5mm Bolt (18). Attach the
Leg Lever (4) to the Frame (2) with the Bolt, the
M10 Washer (25), and the M10 Nylon Locknut (19).
6. Tap two 3/4” Round Inner Caps (9) into each Pad
Tube (10). Insert the Pad Tubes into the holes in
the Leg Lever (4). Slide two Foam Pads (23) onto
each Pad Tube.
3
1
2
22
24
25
9
10
9
4
23
23
19
2
4
4
20
22
3
14
12
12
13
14
6
5 18—Lubricate
4
7
High Side of
Weight Rests
1
