9

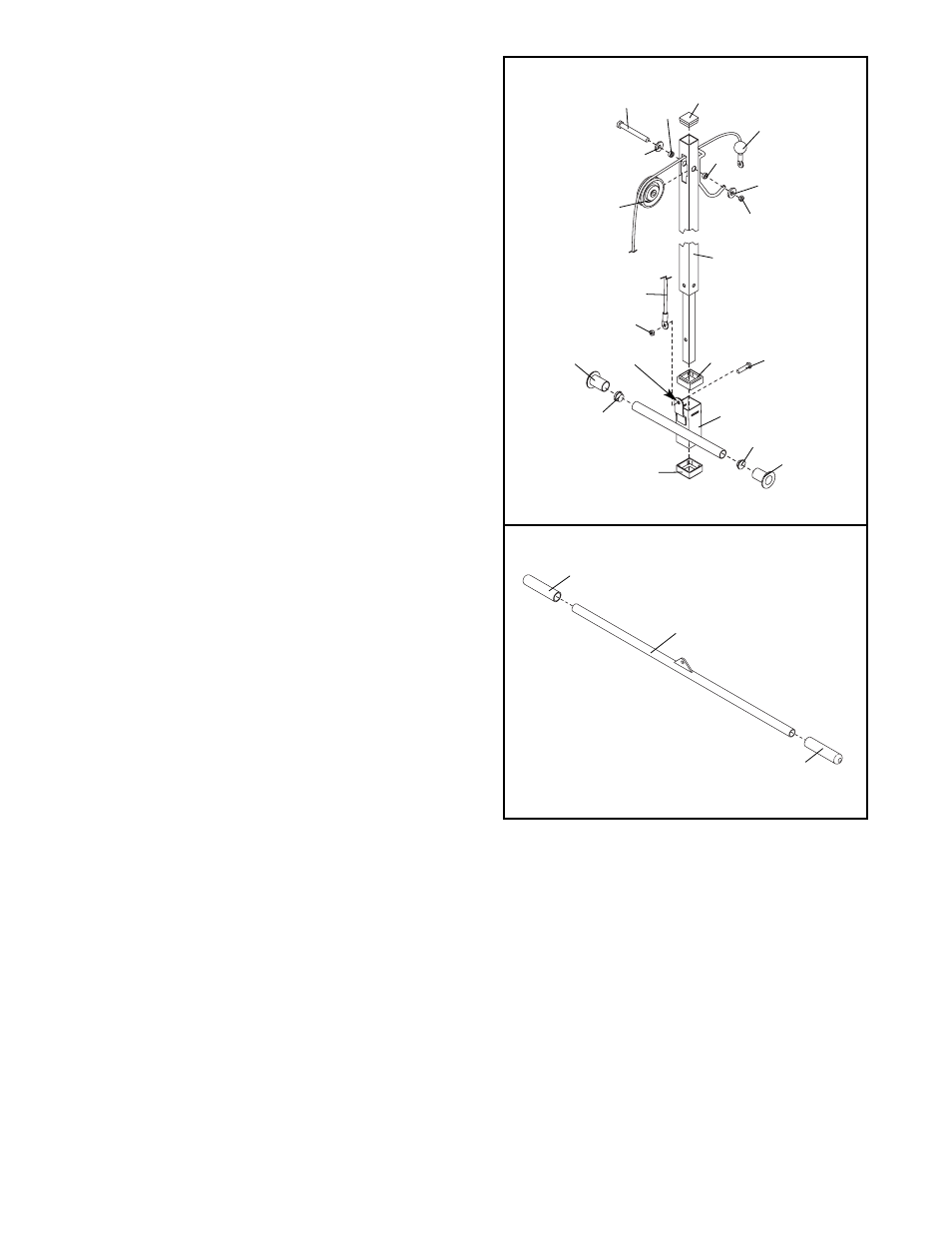

10. Press a 45mm Square Inner Cap (43) into the top
of the Lat Tower (40).
route the Cable (46) through the slot in the Lat
Tower (40) and around a 4 1/2” Pulley (44). Attach
the Pulley inside the Lat Tower with an M10 x
64mm Bolt (12), two M10 Washers (29), two 10mm
Spacers (45), and an M10 Nylon Locknut (11).
Press two 2” Square Bushings (23) into the top and
bottom of the Weight Carriage (41). Press two 1”
Round Inner Caps (21) into the ends of the tube on
the Weight Carriage. Slide a Weight Stop (34) onto
the tube. Insert an M10 x 19mm Bolt (48) into the
bracket on the Weight Carriage.
Slide the Weight Carriage (41) onto the Lat Tower
(40), with the bracket on the side shown.
Attach the Cable (46) to the M10 x 19mm Bolt (48)
with an M10 Nylon Locknut (11).
10
48
11
41
34
34
43
Bracket
45
45
12
46
46
44
29
29
23
23
40
11
11. Wet the ends of the Lat Bar (49) with soapy water.
Slide the two Handgrips (50) onto the ends of the
Lat Bar.
12. Make sure all parts of the weight bench are
properly tightened. The use of all remaining
parts will be explained in ADJUSTMENTS, begin-
ning on the following page.
11
50
50
49
21
21
