Weider WEBE13100 User Manual
Page 8

8

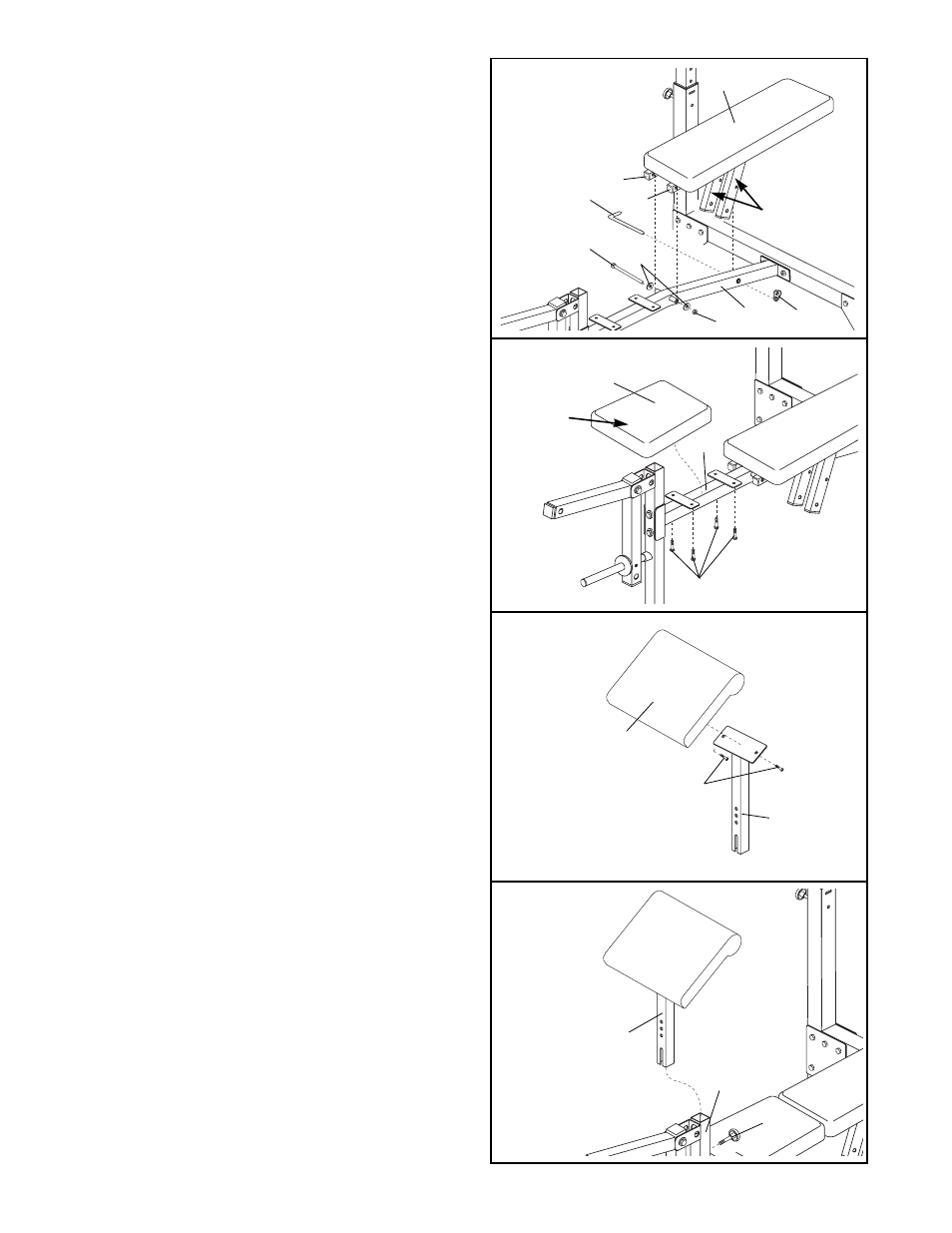

7.
Lubricate the M10 x 178mm Bolt (17). Attach the
Backrest Tubes (5, 42) to the Frame (2) with the
Bolt, two M10 Washers (24), and an M10 Nylon
Locknut (19).
Secure the Backrest (6) to the Frame (2) by
inserting the Adjustment Pin (32) through one of
the three sets of holes in the adjustment tubes.
Secure the Adjustment Pin with the Pin Clip (43).
Make sure the Adjustment Pin (32) is com-
pletely inserted through both adjustment
tubes.
8.
With the wide end of the Seat (11) positioned as
shown, attach the Seat to the brackets on the
Frame (2) with four M6 x 16mm Screws (15).
2
32
42
5
19
43
24
17ÑLubricate
Adjustment
Tubes
6
7
2
11
Wide
End
15
27
26
15
8
9
9.
Attach the Curl Pad (27) to the Curl Post (26) with
two M6 x 16mm Screws (15).
10. Slide the Curl Post (26) into the Front Leg (8).
Align one of the adjustment holes in the Curl Post
with the adjustment hole in the Front Leg. Fully
tighten the M10 x 48mm Adjustment Knob (33)
into the adjustment hole in the Front Leg.
26
8
33
10
