YPbPr
Connection
(Component)

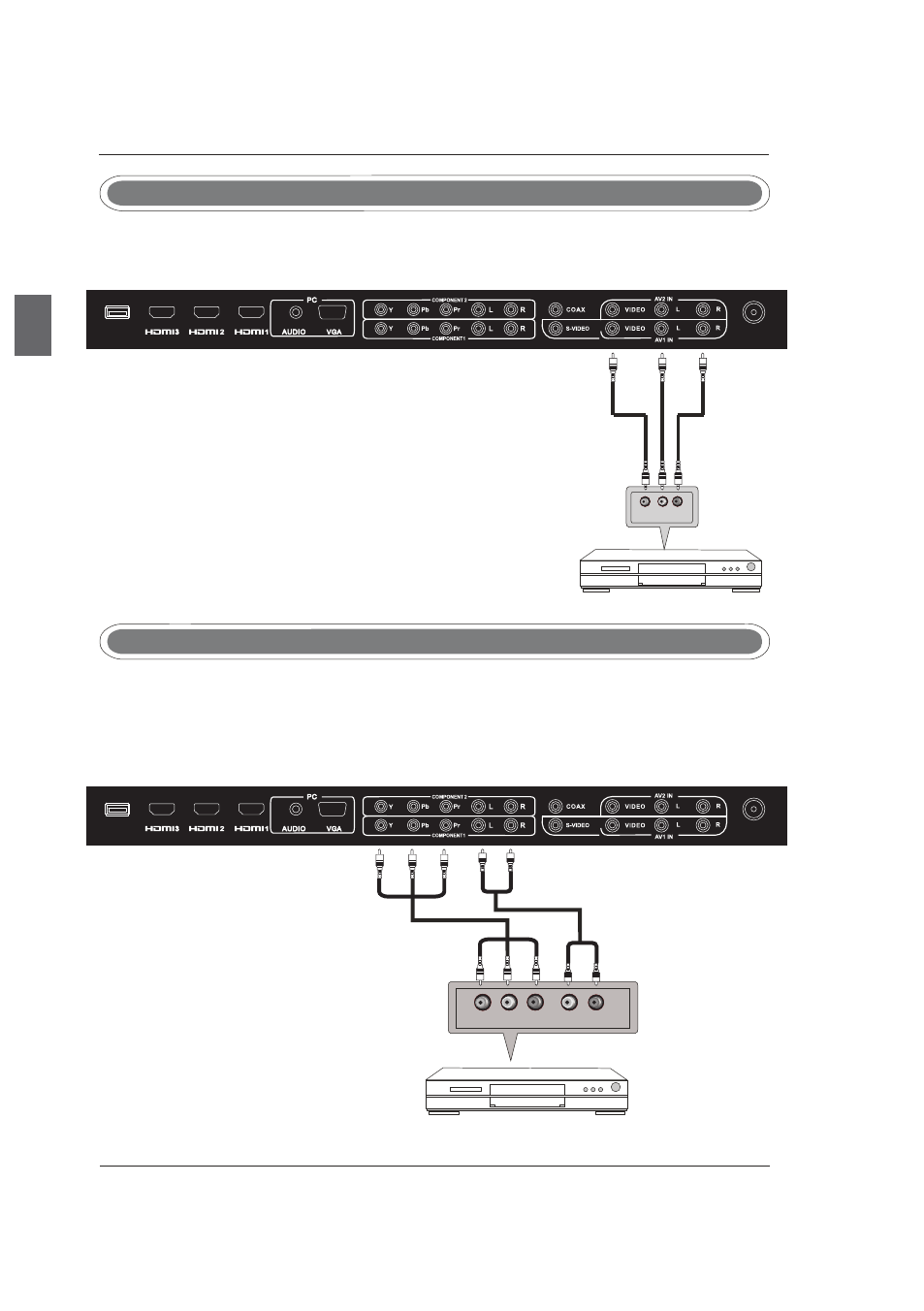

Connect the YPbPr output of the DVD or VCR to the YPbPr input on the set. The picture quality is
improved; compared to connecting a regular VCR to the video input. Connect the Audio output of
the DVD or VCR to the Audio input jacks on the set using the RCA cable.
Match the jacks colors :Y is green,Pb is blue,Pr is red,Audio left is white and Audio right in red.
Select component input source using the SOURCE button on the remote control.
Connect the VIDEO and AUDIO output jack of the DVD or VCR to the VIDEO jacks on the set using
the RCA cable. Match the jack colors: Video is yellow, Audio left is white, and Audio right is red.
Select the AV input source using the SOURCE button on the remote control.
AV Connection
Video Cable
VIDEO
VIDEO
R
R
L
L
DVD or VCR
DVD or VCR Back
DVD or VCR
DVD or VCR Back
YPbPr cable
AUDIO cable
Y
Pb
Pr
L
R
TV Back
TV Back
E
n
g
lis
h
