12

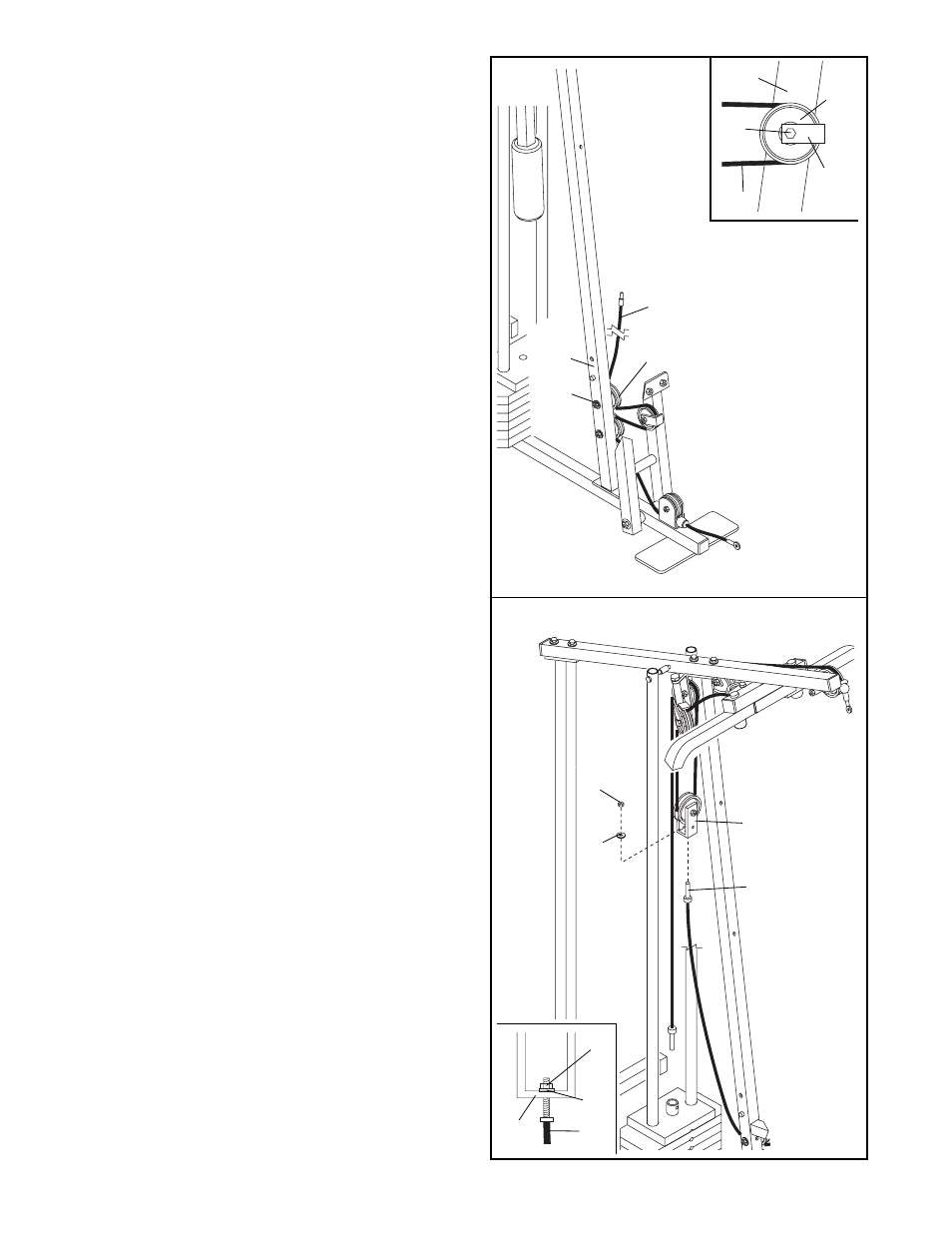

22. Route the Short Cable (58) around the 90mm
Pulley (15) attached to the upper hole in the Front
Upright (42). See the inset drawing. Be sure
that the Cable Trap (66) is turned to hold the
Cable in place and that the Cable is routed
around the Pulley as shown. Tighten the M10
Nylon Locknut (21) and the M10 x 95mm Bolt
(71).
23. Attach the end of the Short Cable (58) to the
Long “U”-Bracket (57) with an M8 Nylon Locknut
(3) and an M8 Washer (8). See the inset draw-
ing. Do not overtighten the Nylon Locknut; it
should be threaded onto the end of the Cable
so only a couple of threads are showing
above the nut.
22
42
58
15
21
71
58
Inset shows view
from other side
42
66
15
23
57
3
8
58
57
3
8
58
