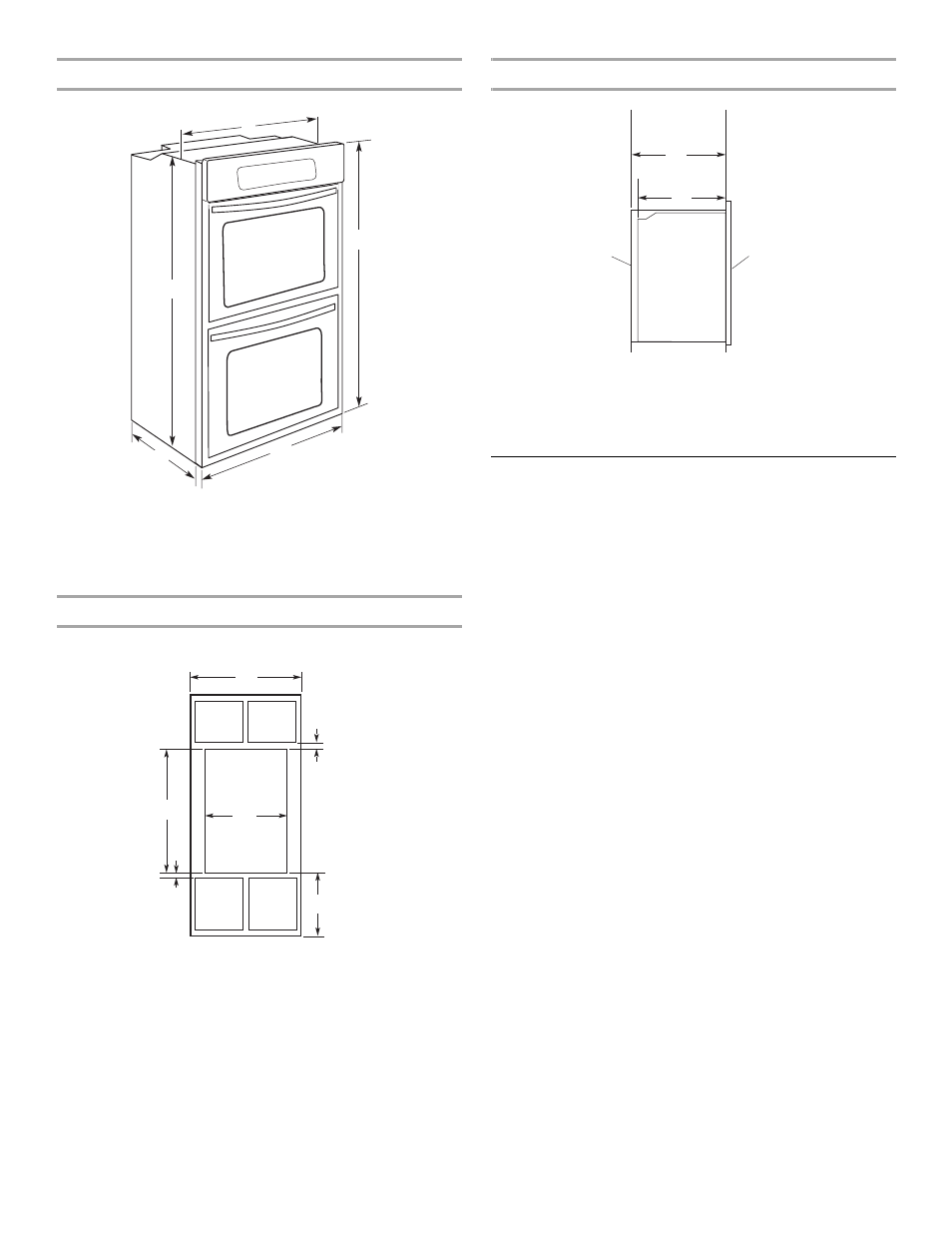

Product Dimensions - Double Oven
Cabinet Dimensions - Double Oven
Double Oven Installed in Cabinet
Cabinet Side View - Double or Single Oven
Electrical Requirements
If codes permit and a separate ground wire is used, it is
recommended that a qualified electrical installer determine that
the ground path and the wire gauge are in accordance with local
codes.
Check with a qualified electrical installer if you are not sure the
oven is properly grounded.
This oven must be connected to a grounded metal, permanent
wiring system.
Be sure that the electrical connection and wire size are adequate
and in conformance with the National Electrical Code, ANSI/
NFPA 70-latest edition or CSA Standards C22.1-94, Canadian
Electrical Code, Part 1 and C22.2 No. O-M91-latest edition, and
all local codes and ordinances.
A copy of the above code standards can be obtained from:
National Fire Protection Association
One Batterymarch Park
Quincy, MA 02269
CSA International
8501 East Pleasant Valley Road
Cleveland, OH 44131-5575
Electrical Connection
To properly install your oven, you must determine the type of
electrical connection you will be using and follow the instructions
provided for it here.
■ Oven must be connected to the proper electrical voltage and
frequency as specified on the model/serial number rating
plate. The model/serial number rating plate is located at the
bottom right-hand oven surface. See the following illustration.
A. 22 ¹⁄₄" (56.5 cm) max. recessed width
B. 46 ⁵⁄₁₆" (117.6 cm) max. overall height
C. 23 ⁷⁄₈" (60.6 cm) overall width
D. 22 ⁵⁄₈" (57.5 cm) max. recessed depth
E. 44 ⁵⁄₈" (113.4 cm) recessed height
A. 24" (61 cm) min. cabinet width
B. 1 ¹⁄₂" (3.8 cm) top of cutout to bottom of upper
cabinet door
C. 17" (43.2 cm) min. bottom of cutout to floor
D. 22
³⁄₈" (56.8 cm) cutout width
E. 1 ¹⁄₂" (3.8 cm) min. bottom of cutout to top of
cabinet door
F. 45 ³⁄₈" (115.3 cm) cutout height
A
B
D
E
C
A
B
C
D
E
F
A. 24"(61 cm) min. cutout depth
B. 22
⁵⁄₈" (57.5 cm) recessed oven depth
C. Oven front
D. Recessed oven
E. Cabinet
