Side Burner Maintenance
(2)
(3)
(7)
(6)
(5)
(4)
(1)
(3)
(2)
(1)
ƽ WARNING: All gas controls and supply valves
should be in the OFF position.
Make sure black wire is connected between igniter and
electrode. Make sure white wire is connected between
igniter and ground. Check that igniter lock nut is tight.
Note - If the igniter works loose, carefully tighten the
igniter lock nut with an adjustable wrench or pliers.

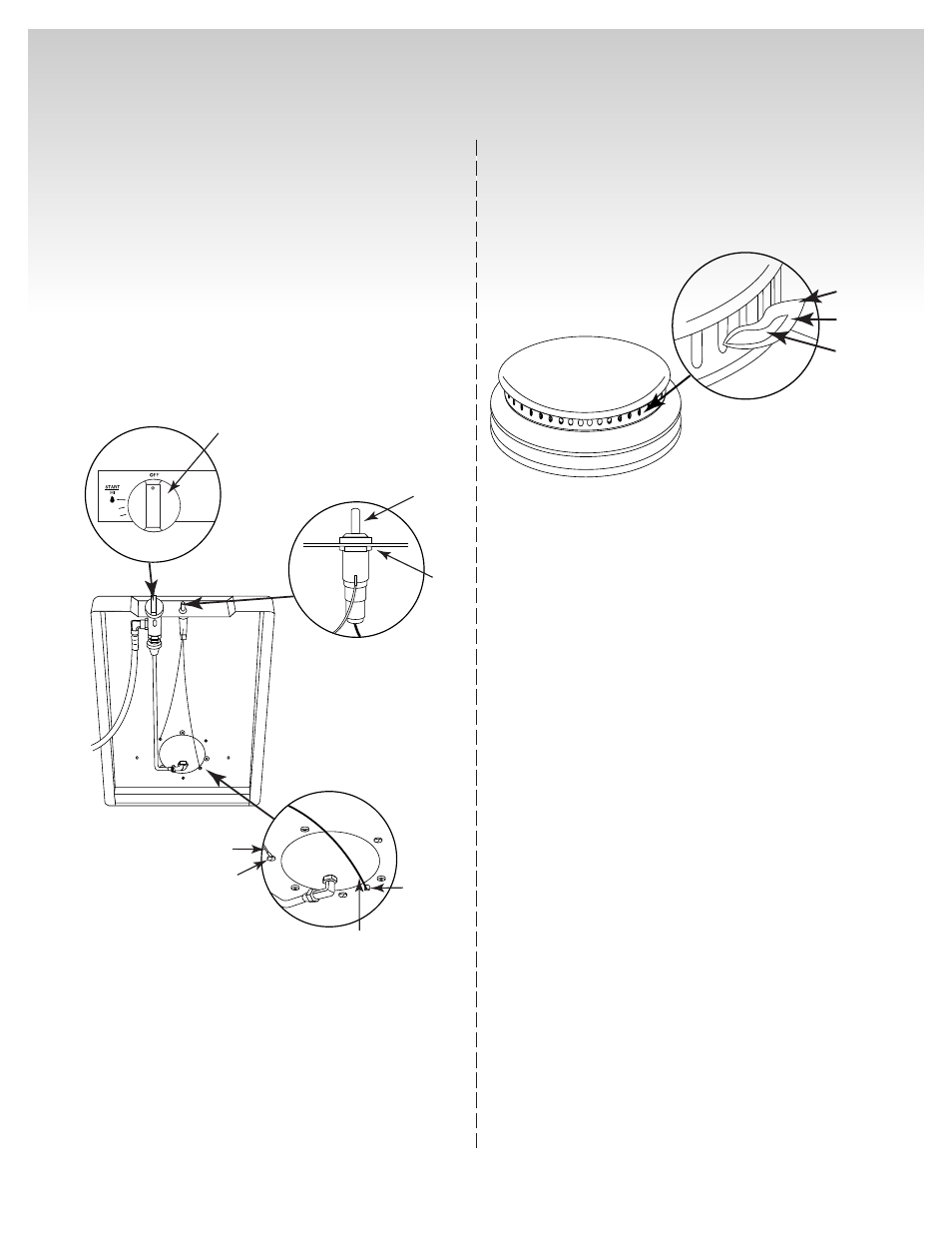

1) Burner Control Knob
2) Igniter Button
3) Igniter Lock Nut
4) White Wire
5) Ground
6) Black Wire
7) Electrode
The Platinum Series II side burner has been factory
set for the correct air and gas mixture. The correct
flame pattern is shown.
1) Tips occasionally flicker yellow
2) Light blue
3) Dark blue
