Weider WEBE03320 - Manual (Page 11)

1
2
3 4
4
5
6
7
8
9
9
9
9
10
11
11
11
12
12
12
12
13
13
14
15
24
24
16
19
19
25
26
23
18
18
27
19
17 20
19
19
19
19 20
21
25
20
22
22
16
22
28
27
29
11
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of the user’s manual for information about ordering replacement parts.
Key No. Qty. Description Key No. Qty. Description
1 1 Frame
2 1 Front Leg
3 1 Rear Leg
4 2 Stabilizer
5 1 Backrest Frame
6 1 Pivot Bracket
7 1 Backrest
8 1 Seat
9 4 Foam Pad
10 2 Pad Tube
11 4 19mm Round Inner Cap
12 4 50mm Round Outer Cap
13 4 32mm Square Inner Cap
14 1 45mm Square Inner Cap
15 1 25mm x 50mm Inner Cap
16 4 M6 x 45mm Bolt
17 2 M10 x 60mm Bolt
18 4 M10 x 60mm Carriage Bolt
19 7 M10 Nylon Locknut
20 4 M10 Washer
21 1 Locking Pin
22 4 M6 Washer
23 1 M10 x 85mm Bolt
24 4 M6 x 16mm Bolt
25 2 M10 x 25mm Bolt
26 2 M8 x 65mm Bolt
27 3 M8 Nylon Locknut
28 1 M4 x 16mm Screw
29 1 M8 x 25mm Bolt
# 1 User’s Manual
# 1 Exercise Guide

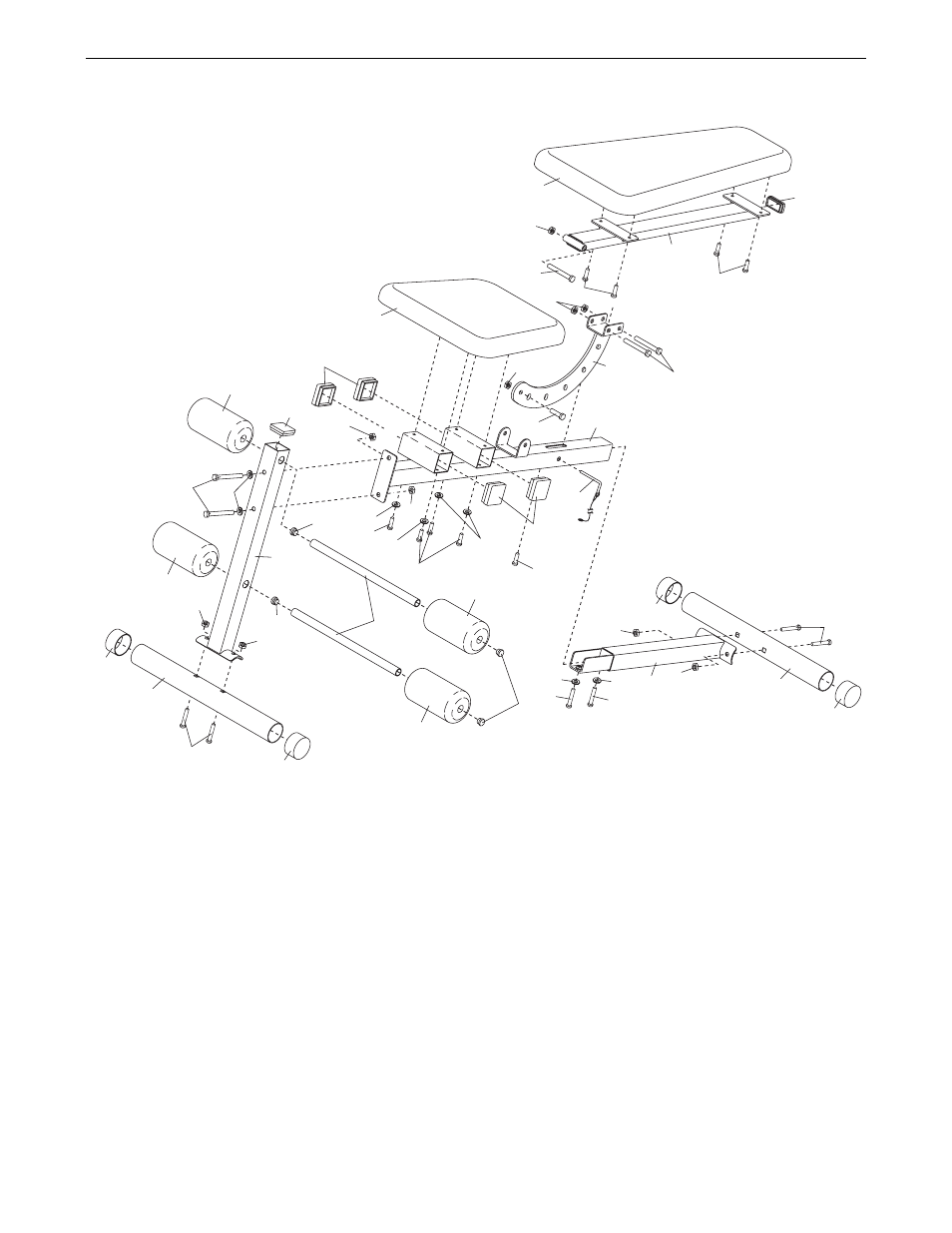

PART LIST/EXPLODED DRAWING
—Model No. WEBE03320 R0602A
