5

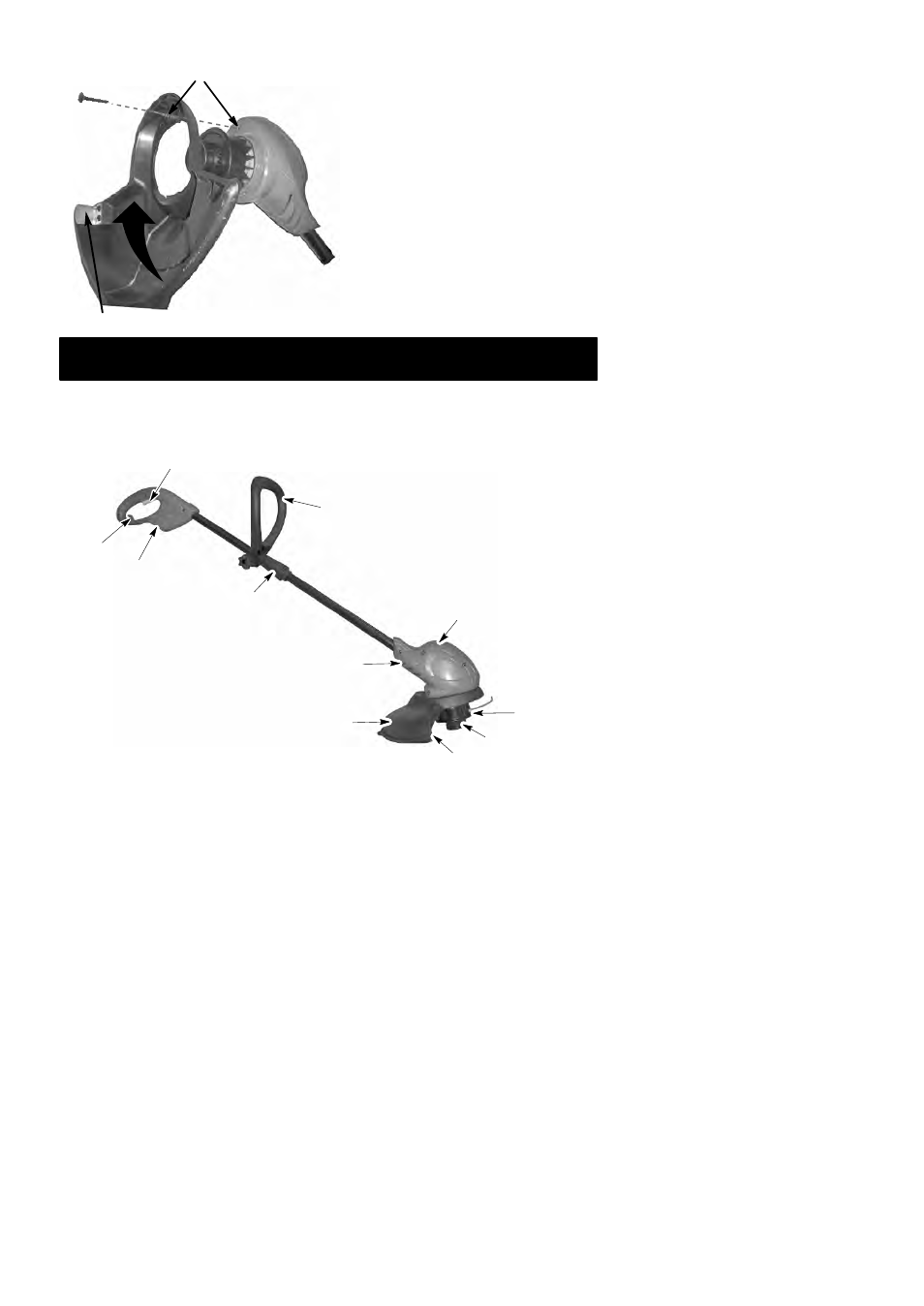

ALIGN INSTALLATION HOLES
Holes
OPERATION
KNOW YOUR TRIMMER
READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERATING YOUR UNIT.
Compare the illustrations with your unit to familiarize yourself with the location of the various controls
and adjustments. Save this manual for future reference.
RECESSED PLUG
The RECESSED PLUG is where you attach
your extension cord to the unit.
TRIGGER SWITCH
The TRIGGER SWITCH is used to turn on the
unit. Squeeze the trigger switch to operate the
unit. Release to stop.
LINE LIMITER BLADE
The LINE LIMITER BLADE cuts the cutting
line to the proper cutting length.
ASSIST HANDLE
The ASSIST HANDLE is used to help hold
and guide the unit.
TRIMMER HEAD
The TRIMMER HEAD holds cutting line and
rotates during operation.
TAP BUTTON
The TAP BUTTON is used to advance the
cutting line during operation and to remove
the spool during line replacement.
CAUTION: Sharp line limiter blade
Trigger Switch
Cord
Retainer
Recessed
Plug
Assist Handle
Locking
Sleeve
Assembly
Air
Vents
Motor Housing
Debris Shield
Line Limiter Blade
Tap Button
Trimmer Head
with 0.065 in.
Trimmer Line
Bolt
Twist shield in this
direction to assemble
