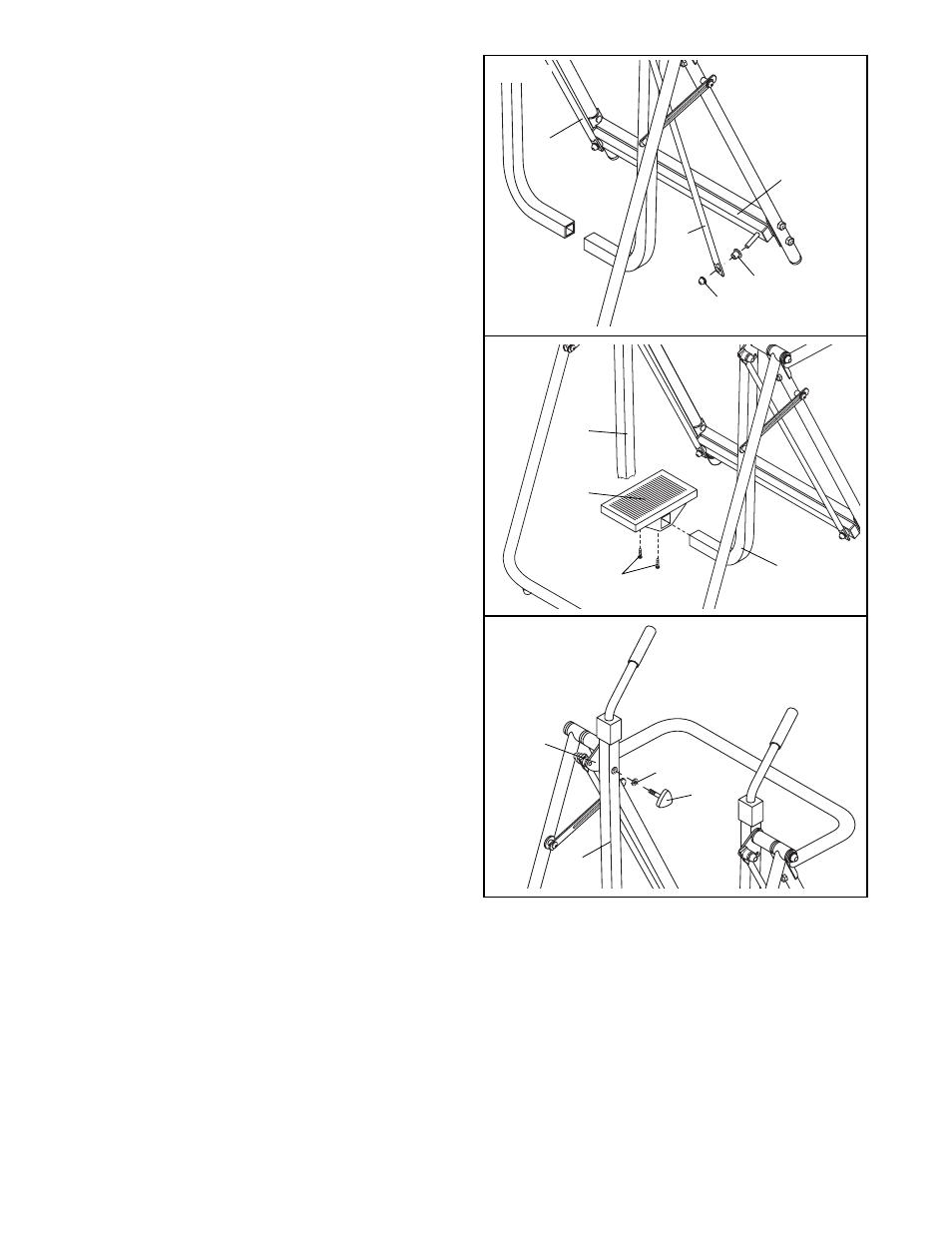

4. Make sure that there is a Link Arm Bushing (14) in
the lower end of the Right Link Arm (31). Slide the
Right Link Arm onto the indicated pin on the
Rocker Arm (9). Tap a 3/8Ó Axle Cap (21) onto the
pin.
Attach the Left Link Arm (7) to the Rocker Arm (9)
in the same manner.
5. Slide a Pedal (26) onto the Right Leg (5). Attach
the Pedal with two #8 x 3/4Ó Screws (28).
Attach a Pedal (not shown) to the Left Leg (4) in
the same manner.
6. Slide the Lock Washer (16) onto the Storage Knob
(30). Insert the Storage Knob into the hole near
the top of the Left Leg (4). Tighten the Storage
Knob into the Link Arm Plate (6).
31
7
9
26
5
4
28
16
30
4
6
14
21
Fig. 5
Fig. 6
Make sure that all parts are properly tightened before you use the EASY STRIDE.
