Page 9

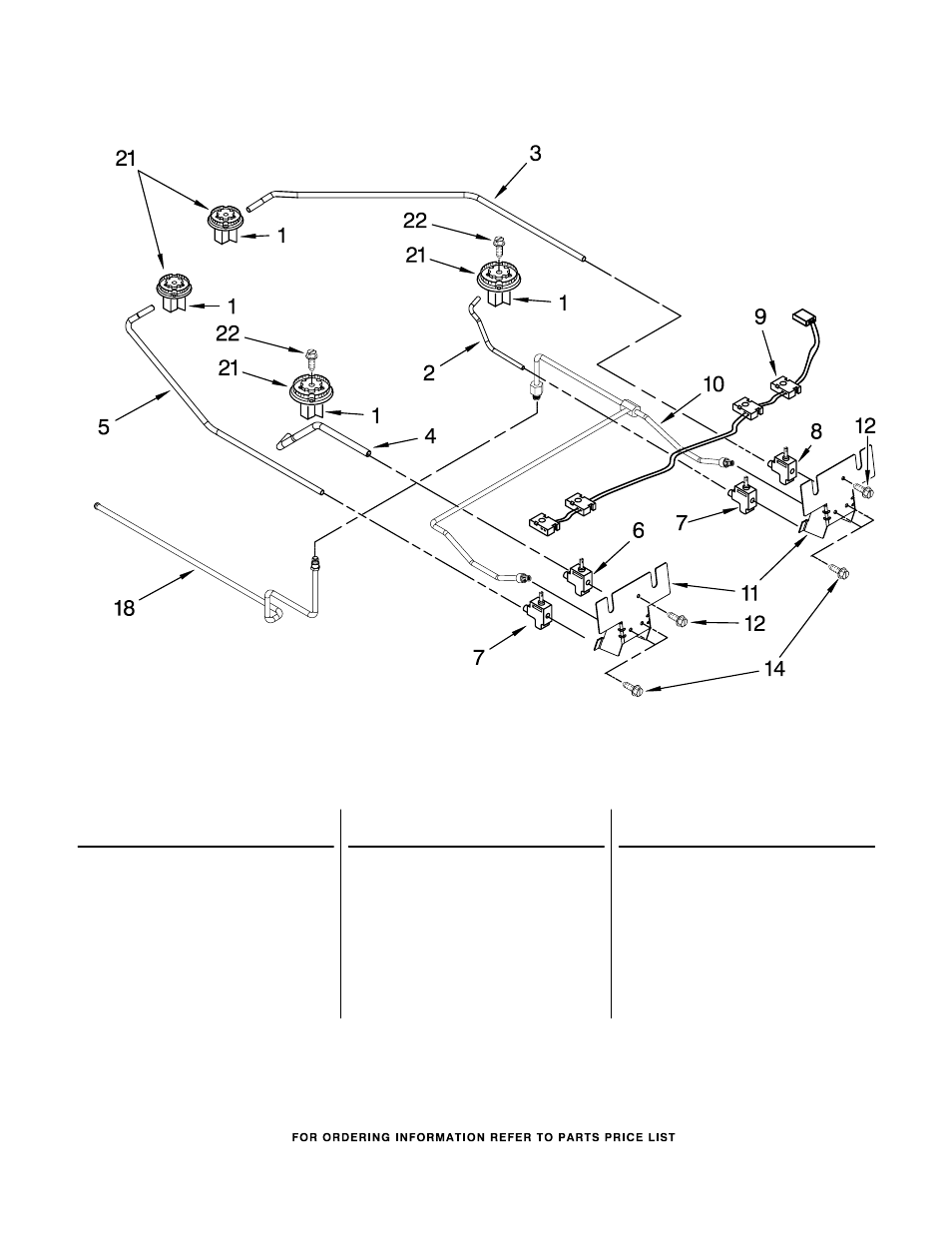

COOKTOP BURNER PARTS
9
For Models: GW395LEPB04, GW395LEPQ04, GW395LEPT04, GW395LEPS04
(Black) (White) (Biscuit) (S.Steel)
8186755
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1
Burner Base
w/Orifice
W10110375 Small (2)
W10110376 Large
W10110377 Turbi
2
9756827 Tubing, Burner(RF)
3
9756828 Tubing, Burner(RR)
4
9759759 Tubing, Burner(LF)
5
9756829 Tubing, Burner(LR)
6
4456818 Valve, Turbi
7
4456816 Valve, Burner
Small (2)
8
4456817 Valve, Burner
Large
9
9756822 Spark Switch &
Harness Assembly
10
4453755 Tube, Manifold
11
9756803 Manifold
12
3196537 Screw
14
8523704 Bolt, Valve (4)
18
4453754 Tubing
GDS to Manifold
21
Head, Burner
8286181 Small (2)
8286182 Large (1)
9762553 Turbi (1)
22
3368921 Screw, 7−18 x .750
