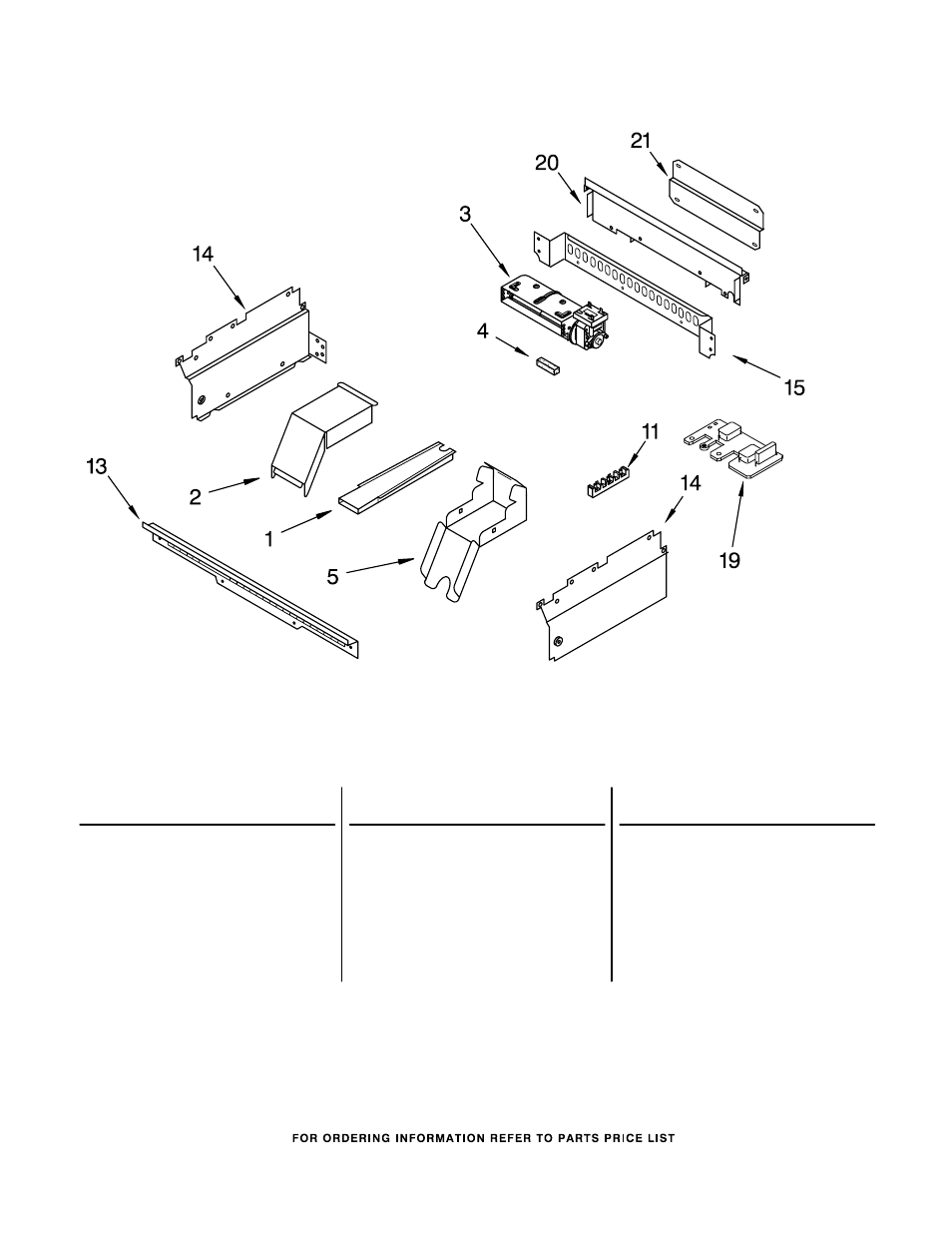

TOP VENTING PARTS
7
For Models:RS696PXGB14, RS696PXGQ14
(Black) (Designer White)
8186251
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1
4451759 Vent, Exhaust
4449040 Screw
2
4455178 Elbow, Vent−Top
3
4455334 Blower
4
4451758 Block, Foam
5
4455177 Elbow, Vent−Bottom
11
4449868 Block, Terminal
3400080 Screw
13
4448549 Vent,
(Control Panel)
4450038 Screw
14
Side, Control Compt.
4451535 Right
4451536 Left
4449809 Screw
15
9759135 Back, Control
4449809 Screw
19
4451985 Suppressor
20
3191842 Cover, Rear
21
4451407 Plate, Support
4452260 Spacer, Foam
