Part identification chart – Weider WEBE09910 User Manual
Page 6
Key No. Qty.
Description
Key No. Qty.
Description
Key No. Qty.
Description
1 1
Backrest
Frame
2 1
Base
3 1
Adjustment
Frame
4 1
Backrest
5 4
Spring
Clip
6 1
Press
Plate
7 1
Pivot
Frame
8 2
Rear
Stabilizer
9 2
Front
Stabilizer
10 2
Ab
Handlebar
11 1
Ab
Frame
12 1
Ab
Leg
13 1
Large
Seat
14
1
Large Support Plate
15 1
Seat
Frame
16
2
1 1/8” Round Inner Cap
17
2
Long Cover Sleeve
18 1
Angled
Cap
19 1
End
Plate
20 1
Support
Plate
21 1
Handlebar
22 2
Grip
23
8
2” Round Outer Cap
24
1
1 1/2” Square Inner
Cap
25 2
25-lb.
Band
26 1
Adjustment
Pin
27 1
Metal
Bushing
28 2
10-lb.
Band
29
1
Small Seat
30
2
1” x 2” Inner Cap
31
8
5/16” x 2 1/2” Carriage
Bolt
32
2
5/16” x 3” Carriage Bolt
33
2
5/16” x 1 3/4” Bolt
34 16
5/16”
Nylon
Locknut
35 10
5/16”
Washer
36
1
3/8” Nylon Locknut
37
1
3/8” x 2 3/4” Bolt
38
4
1/4” Washer
39
1
1/4” x 1/2” Screw
40
4
1/4” x 3/4” Screw
41
2
5/16” x 1 3/4” Carriage
Bolt
42
4
5/16” x 2” Bolt
43
1
1/4” x 2” Screw
44
1
1/4” Nylon Locknut
45
1
1/4” x 2” Carriage Bolt
46
2
5/16” Nylon Jamnut
47
2
1/4” x 3/4” Type F
Screw
48
2
Short Cover Sleeve
49
1
Slider Bushing
50
2
1/4” x 1 1/2” Screw
# 1
User’s
Manual
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover of the
user’s manual for information about ordering replacement parts.

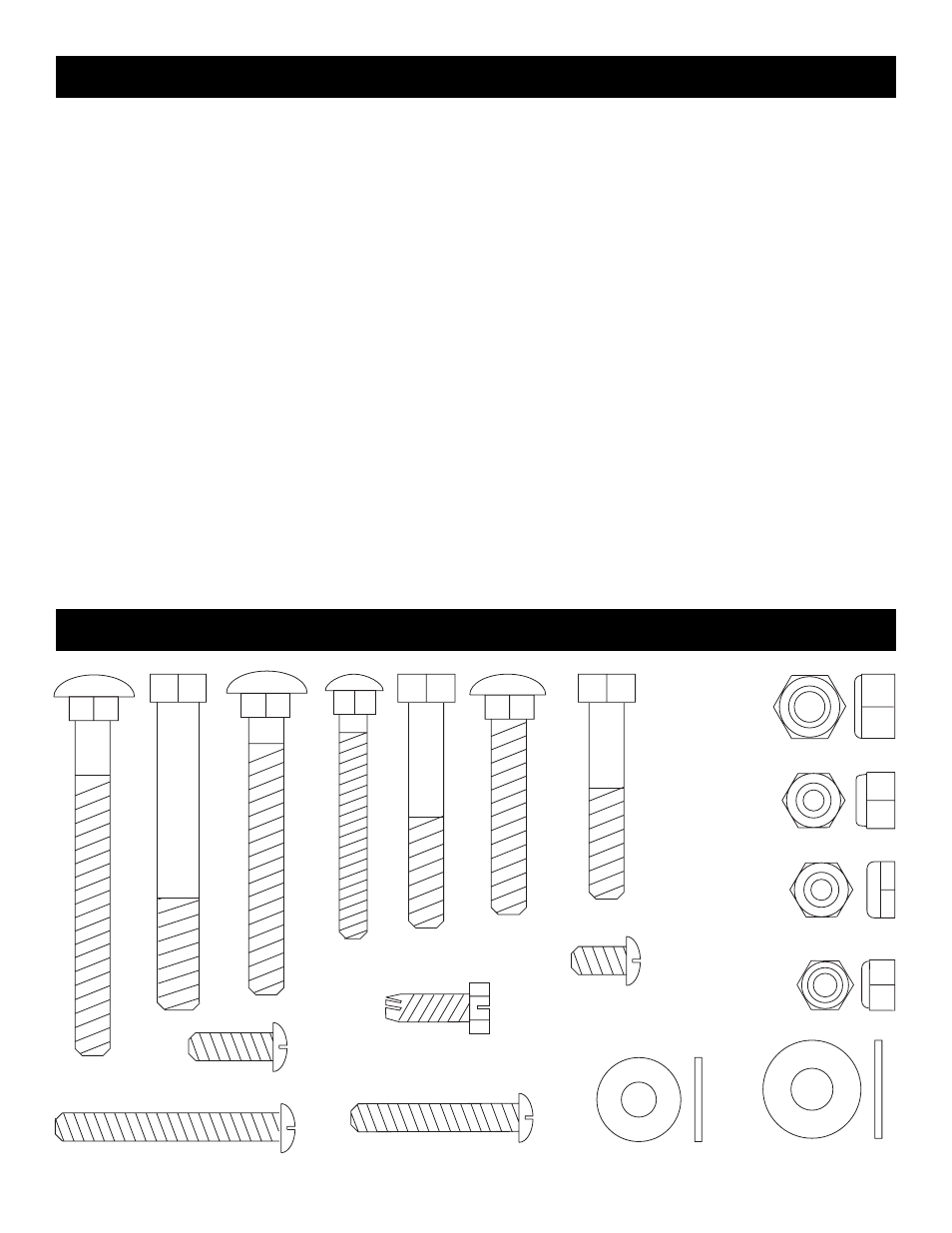

5/16" x 1 3/4" Carriage Bolt (41)
5/16" x 2 1/2" Carriage Bolt (31)
5/16" x 3" Carriage Bolt (32)
5/16" x 2" Bolt (42)
1/4" x 1/2"
Screw (39)
1/4" Washer (38)
3/8" Nylon
Locknut (36)
1/4" Nylon
Locknut (44)
1/4" x 3/4" Screw (40)
1/4" x 2" Carriage Bolt (45)
1/4" x 2" Screw (43)
5/16" Nylon
Locknut (34)
1/4" x 1 1/2" Screw (50)
1/4" x 3/4"
Type F Screw (47)
5/16" Washer (35)
5/16" Nylon
Jamnut (46)
5/16" x 1 3/4" Bolt (33)
3/8" x 2 3/4" Bolt (37)
Part List—Model No. WEBE09910
R0401A
Part Identification Chart
