16

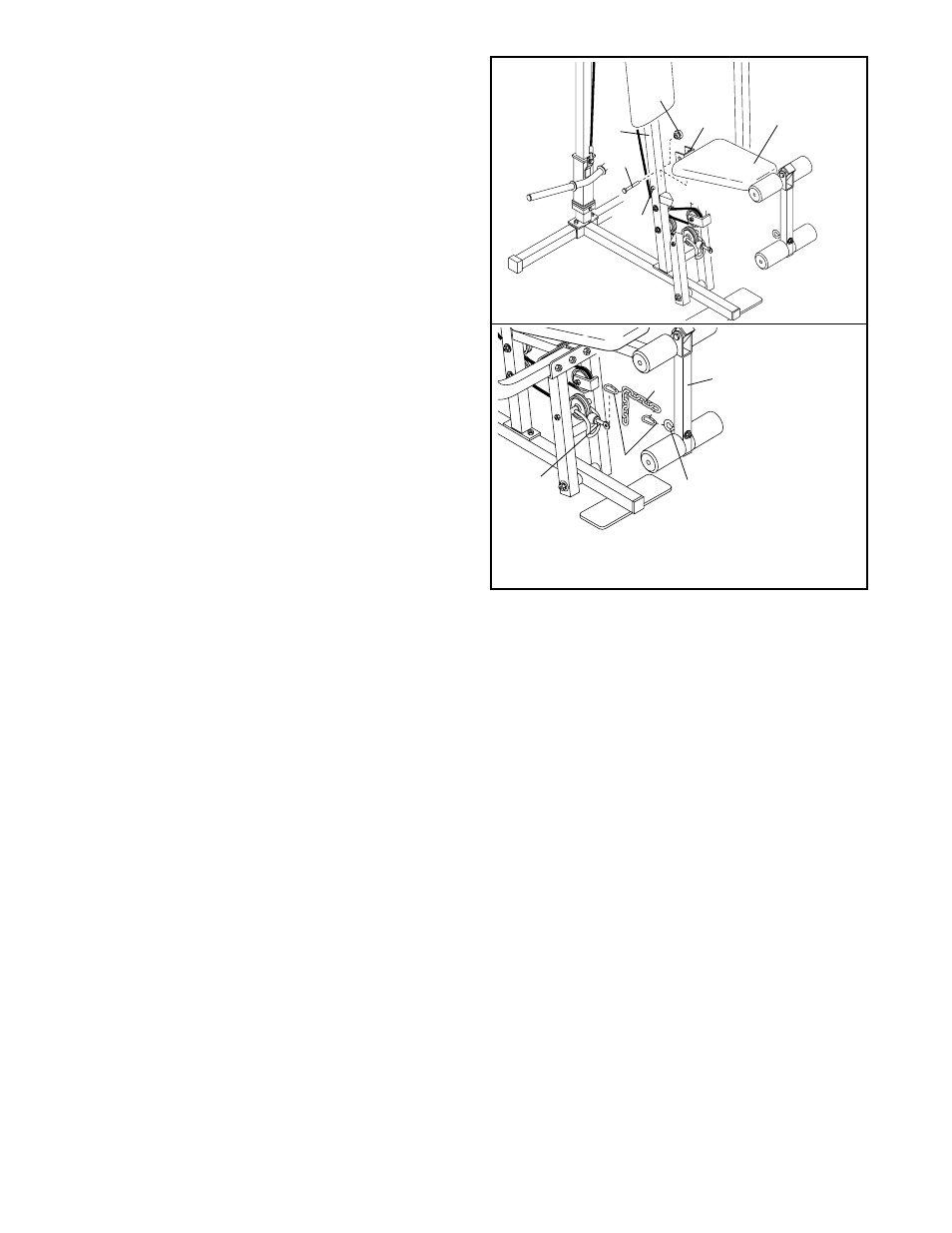

ATTACHING AND REMOVING THE SEAT
Set the bracket on the Seat Frame (36) onto the indi-
cated pins on the Front Upright (42). Attach the Seat
Frame to the Front Upright with the 5/16” x 2 3/4”
Carriage Bolt (14) and the Seat Knob (40).
For some exercises, the Seat (13) must be removed.
First, be sure that the chain is not attached to the leg
lever. Next, remove the Seat Knob (40) and the 5/16”
x 2 3/4” Carriage Bolt (14) from the Seat Frame (36).
Lift the Seat Frame off the Front Upright (42).
ATTACHING THE LEG LEVER TO THE LOW
PULLEY STATION
To use the Leg Lever (29), the seat must be attached
to the front upright (see ATTACHING AND REMOV-
ING THE SEAT above).
Attach one end of the Chain (52) to the Eyebolt (35)
with a Cable Clip. Attach the Chain (52) to the Short
Cable (23) with a Cable Clip (53). Note: Be sure the
Eyebolt is positioned vertically on the Leg Lever.
40
36
42
13
Pin
52
53
23
29
35
14
