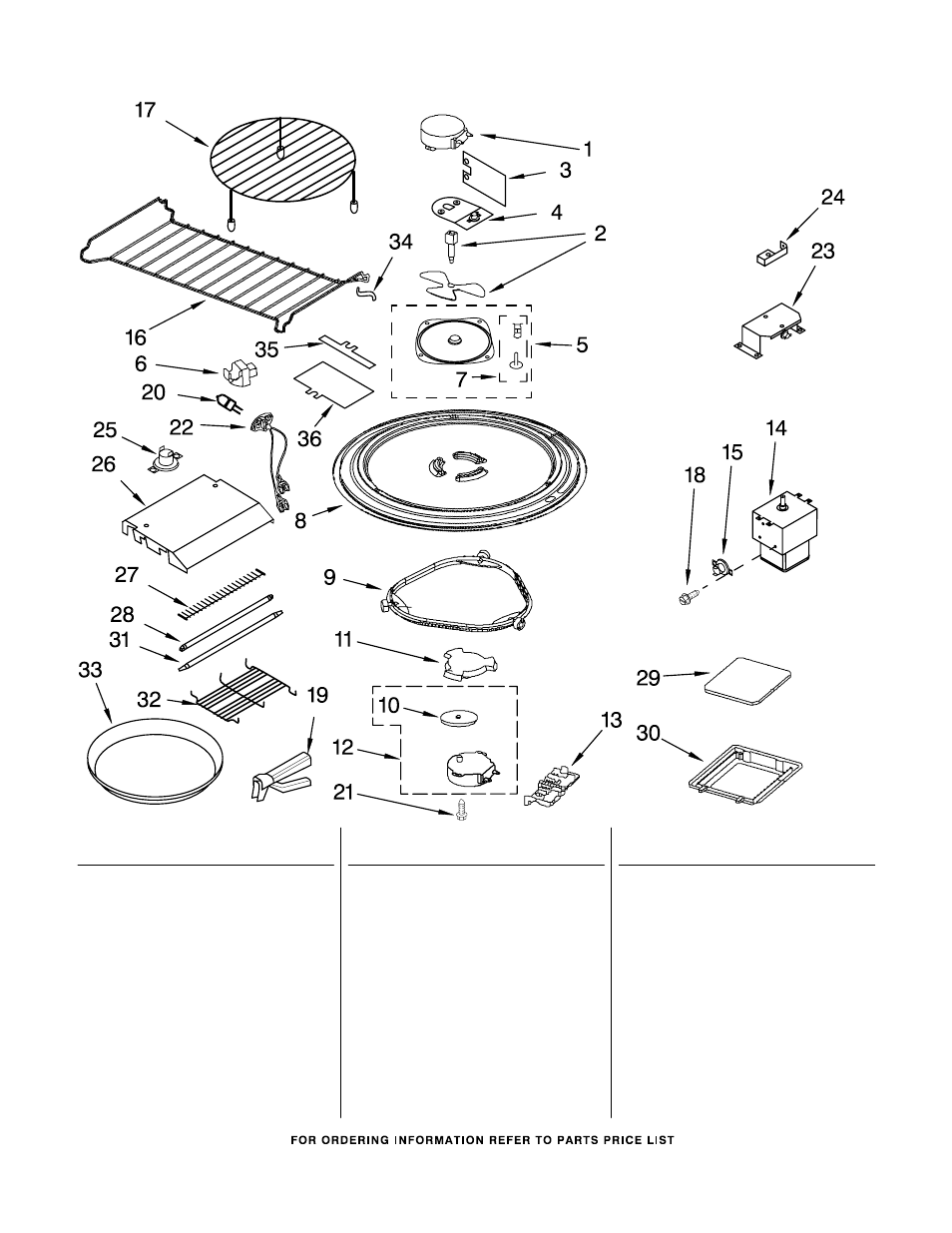

MAGNETRON AND TURNTABLE PARTS
6
For Models: GH6177XPQ1, GH6177XPT1, GH6177XPB1, GH6177XPS1
(White) (Biscuit) (Black) (Stainless Steel)
8205852
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1
8205044 Motor, Stirrer
2
8205202 Stirrer
Shaft/Blade
3
8184485 Shield, Nomex
4
8184585 Thermostat/Bracket
5
8185059 Cover, Inlet
Includes Nails
and Bushings
6
4393849 Hook, Rack (4)
7
8184549 Nails/Bushings
(5 of each)
8
4393799 Turntable
9
8205778 Ring, Turntable
10
8184109 Spacer, Waterproof
11
8205779 Driver, Turntable
12
8183953 Motor, Turntable
13
4393756 Cover, Terminal
14
8184139 Magnetron
15
8184951 Thermostat
16
8205042 Rack
17
8184862 Grill
18
4393838 Screw
19
8204652 Handle,
Crisper Plate
20
8185188 Halogen Light
21
4393832 Screw
22
8204669 Socket,
Halogen Light
23
8184586 Thermostat/Bracket
24
8184669 Bracket, Plug
25
8204995 Thermostat
26
8185060 Grill, Insulation
Plate
27
8184837 Browner, Halogen
28
8184838 Quartz Tube,
Soft Start
29
8169499 Glass, Lamp
30
8169646 Frame, Glass
31
8184839 Heater, Quartz
32
8205239 Cover, Protector
33
8204983 Plate, Crisp
34
8205039 Spacer
35
8185175 Shield, Front
36
8185176 Shield, Rear
