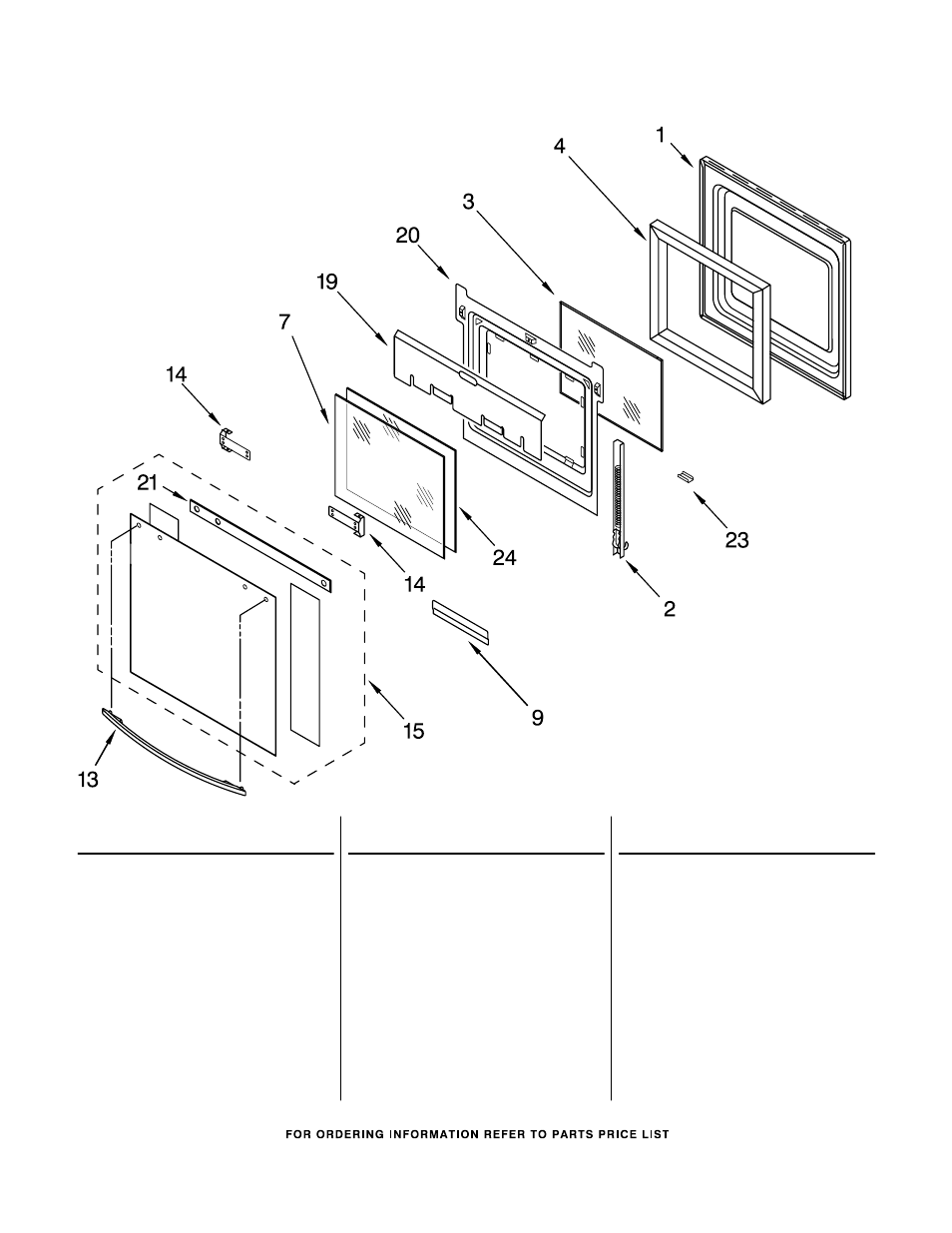

OVEN DOOR PARTS
5
For Models:RS675PXGB9, RS675PXGQ9, RS675PXGT9
(Black) (White) (Biscuit)
8185948
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
NOTE: The screws and nuts
required to attach a part are
listed immediately following
that part.
1
4455618 Door Liner
2
Hinge, Door
8300571 R.Side
8300572 L.Side
4449743 Screw
3
4449259 Glass, Inner
4
4451722 Insulation, Door
7
4449263 Glass, Inner (2)
9
4451668 Retainer, Glass
4449809 Screw
13
Door Handle
4448855 White
4452860 Biscuit
4448854 Black
14
4450813 Bracket, Handle
4451040 Screw
15
Door Assembly,
Glass
4452066 White
4452859 Biscuit
4452065 Black
19
4450362 Shield, Heat
4449809 Screw
20
8300778 Retainer, Glass
4449809 Screw
21
8300820 Seal, Door Top
23
Retainer, Clip
4450864 White
4452119 Biscuit
4450863 Black
24
4455257 Glass, Inner
