Page 10

10
GAS INSTRUCTIONS
REINSTALL CONTROL PANEL
Parts required: control panel, screws, and burner control knobs.

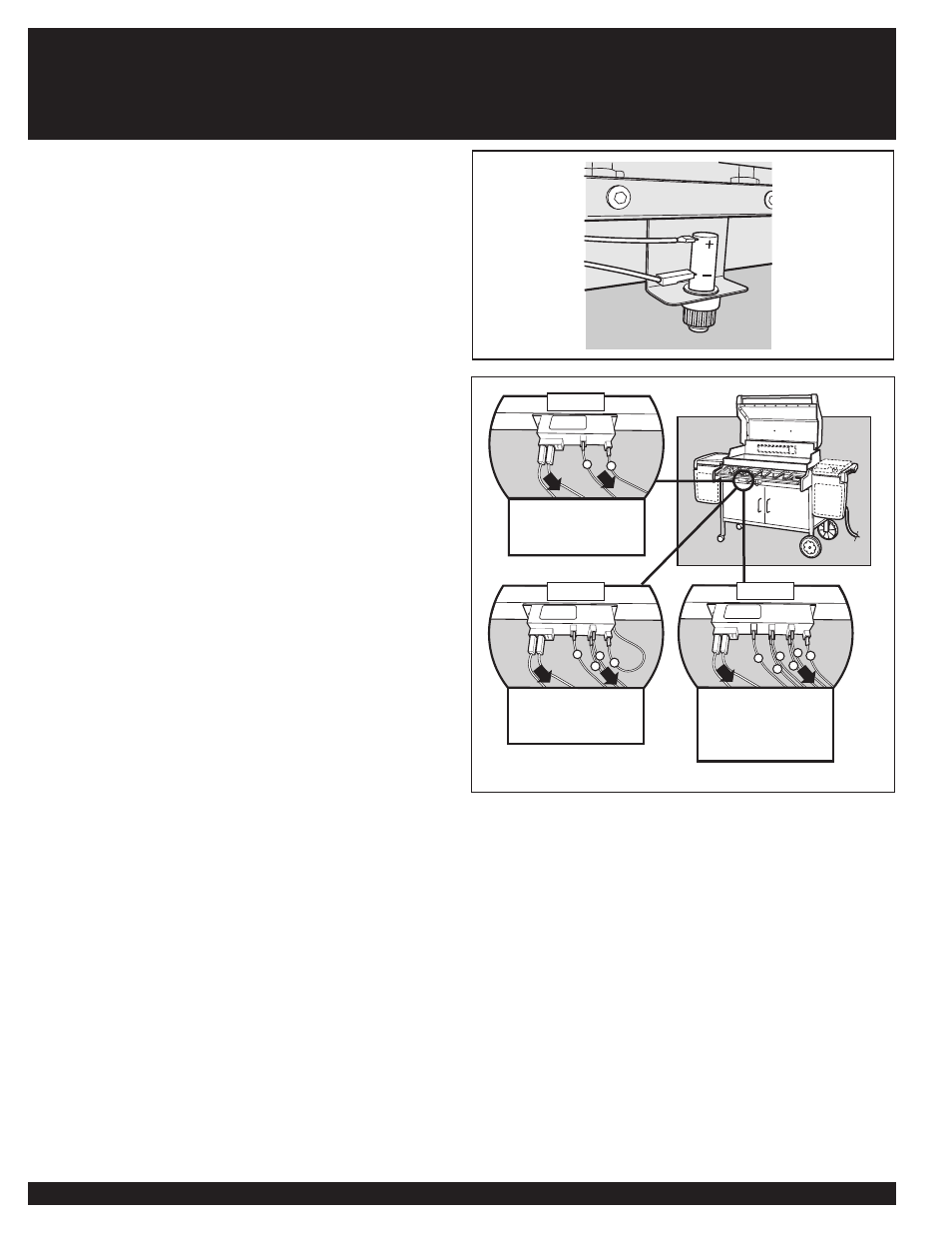

Place the control panel back onto the control panel brackets on either side of
the front of the cooking box.
Line up screws with screw holes on both the control panel and control panel
brackets. Tighten screws.
Reinstall burner control knobs & igniter wires (if necessary).
Place corresponding control knobs down onto the valve stems. From the
underside of the control panel, replace the two wires (1, 2) of each igniter.
a = Blue Tab with Black Wire
b = Yellow Tab with Black Wire
c = White Tab with Black Wire
d = Solid White Wire
e = Solid Blue Wire
f = Grounding
Wire
- +
b
- +
a
c
d
e
f
Gold D4
- +
- +
a
b
a = Yellow Tab with Black Wire
b = White Tab with Black Wire
Gold A4
a = Yellow Tab with Black Wire
b = White Tab with Black Wire
c = Solid White Wire
d = Grounding Wire
- +
- +
c
b
a
d
Gold B4
(1)
(2)
