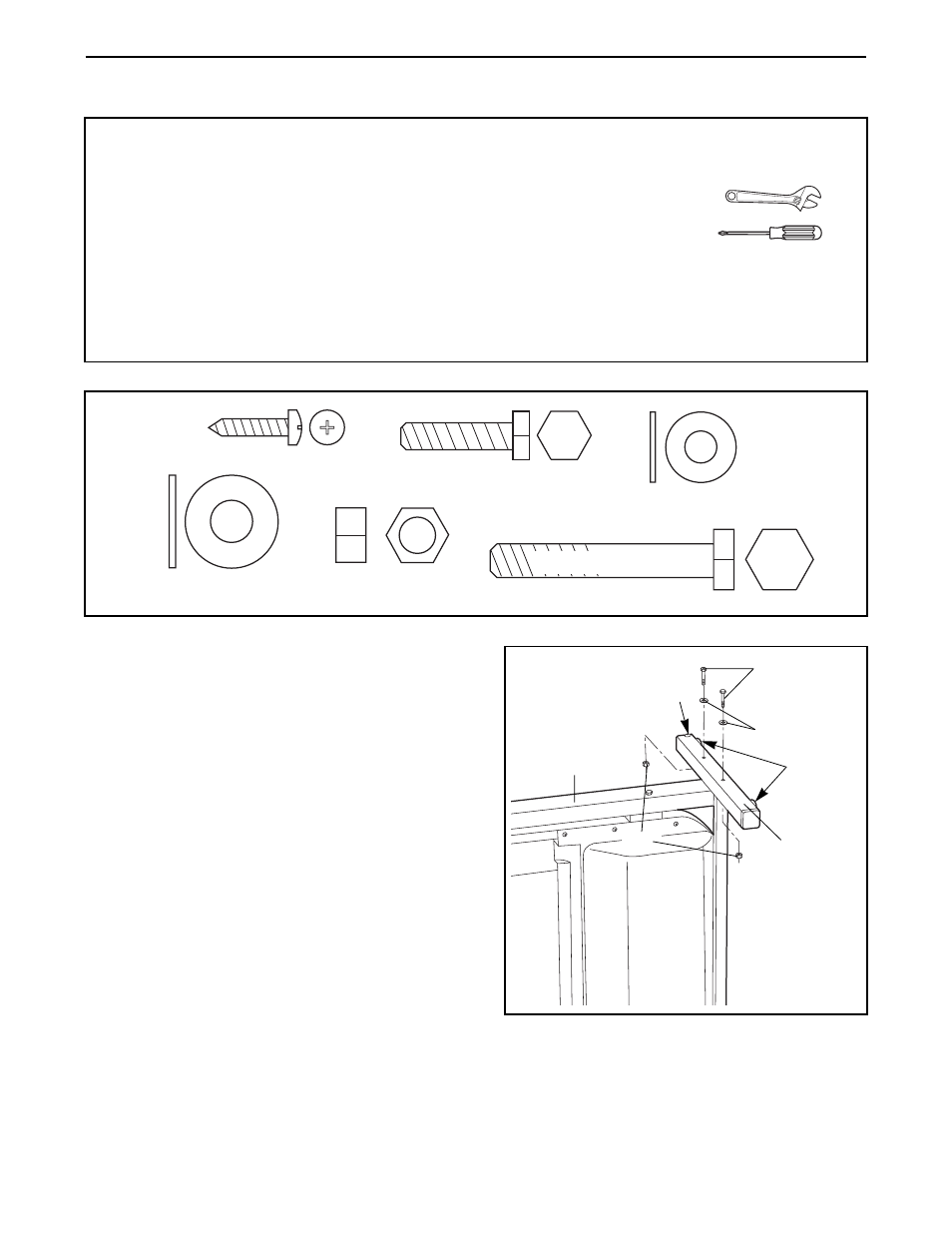

1. Note that the Right Handrail and the Console Base
(not shown) are connected to the treadmill by a Wire
Harness. During assembly steps 1 through 3, be
careful not to pull on or damage the Wire Harness.
With the help of a second person, carefully lay the
treadmill on its side. Position one of the Base Legs
(38) on the base of the Upright (31) as shown. Make
sure that the Base Leg Pads (41) and the Front
Wheel (39) are in the indicated positions. Attach the
Base Leg with two 3/8Ó x 2Ó Bolts (43), two 3/8Ó
Washers (35) and two 3/8Ó Nuts (34).
Carefully turn the treadmill onto its other side.
Assemble the other Base Leg (38) as described.
With the help of a second person, carefully raise the
treadmill to the upright position so that both Base
Legs (38) are resting flat on the floor.
1
5
ASSEMBLY
Before beginning assembly, carefully read the
following information and instructions:
¥ Assembly requires two people.
¥ Place all parts in a cleared area and remove the
packing materials; do not dispose of the packing
materials until assembly is completed.
¥ As you assemble the treadmill, be sure that all
parts are oriented as shown in the drawings.
The following tools (not included) are required
for assembly:
¥ Two (2) adjustable wrenches
¥ One (1) phillips screwdriver
Assembly will be more convenient if you have the
following tools: A socket set, a set of open-end or
closed-end wrenches, or a set of ratchet wrenches.
43
35
41
38
39
31
34
1/4Ó Washer (51)Ð4
3/8" Washer (35)Р4 3/8У Nut (34)Р4
1/4У x 1Ó Bolt (23)Р4
3/8У x 2Ó Bolt (43)Ð4
Screw (10)Р8
