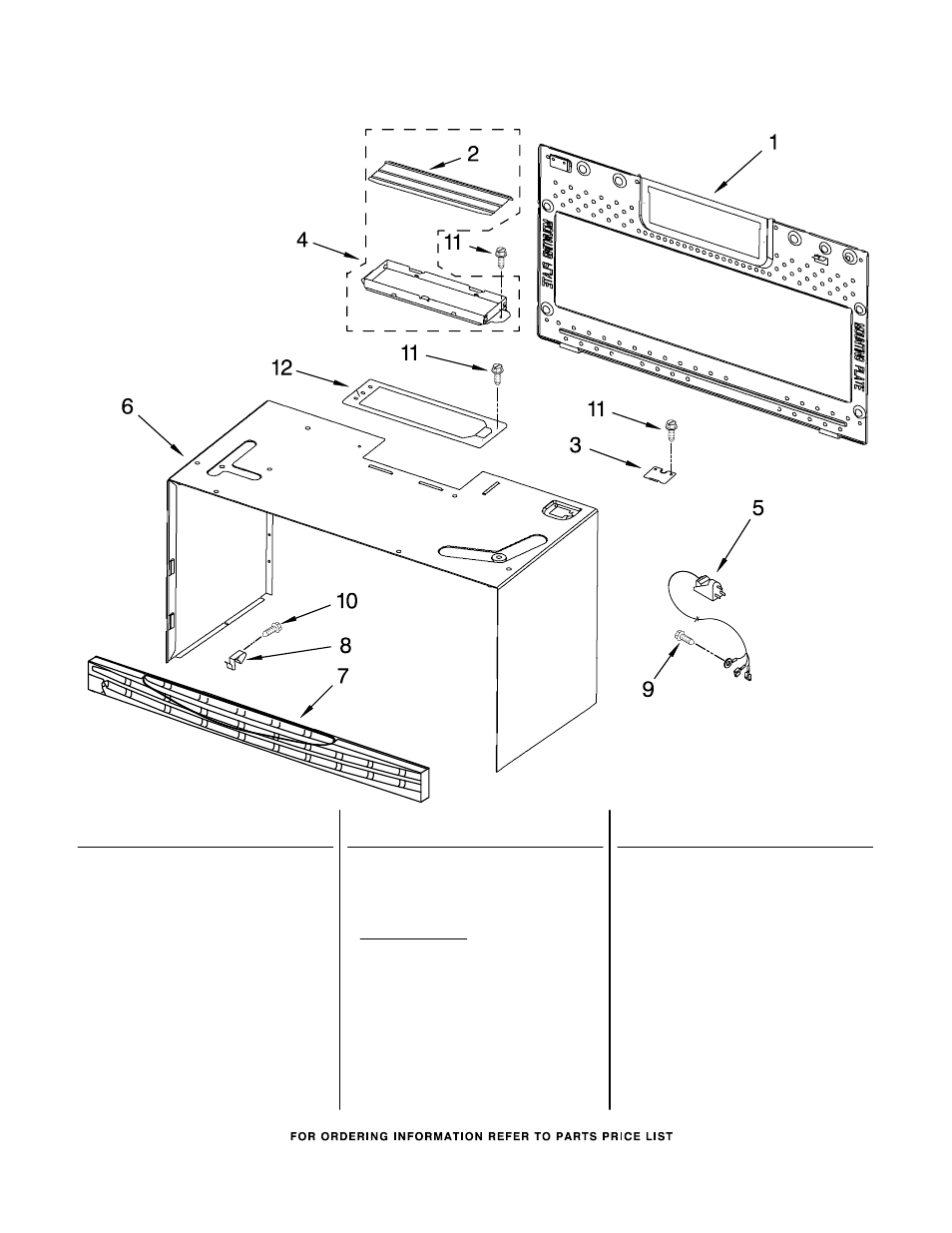

CABINET AND INSTALLATION PARTS
7
For Models: GH5184XPQ4, GH5184XPB4, GH5184XPT4, GH5184XPS4
(WHITE) (BLACK) (BISCUIT) (STAINLESS)
8188453
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1 8206315 Plate, Mounting
2 8205741 Door, Damper
3 8184897 Lid, Power Cord
4 8206442 Frame, Damper
5 8205640 Cord, Power
6 Case, Outer
8205397 White
8205398 Black
8205399 Biscuit
7 Grille, Vent
8205214 White
8205215 Black
8205216 Biscuit
8205217 Stainless
8 8184190 Clip, Grille
9 4393836 Screw
10 8169475 Screw
11 4393472 Screw
12 W10110597 Plate, Damper
Miscellaneous
8205947 Installation,
Hardware
8184781 Template, Upper
8169704 Screw, Top Mountng
W10114260 Harns−Wire
AC Line Filter
W10114261 Harns−Wire, Main
W10114262 Harns−Wire
Lamp/TT
W10110602 Harns−Wire
Filter Capacitor
W10110600 Harns−Wire
Magnetron
W10114263 Harns−Wire
Ground, Inverter
W10110601 Harns−Wire
Ground, Main
W10111830 Harns−Wire
Ground, Hum Sensor
8205014 Harns−Wire
PCB to Inverter
W10114264 Harns−Wire
Cavity Therm 1−2
W10114265 Harns−Wire
Cavity Therm 2−3
