Assembly – Weslo WLEL36070 User Manual

Page 6

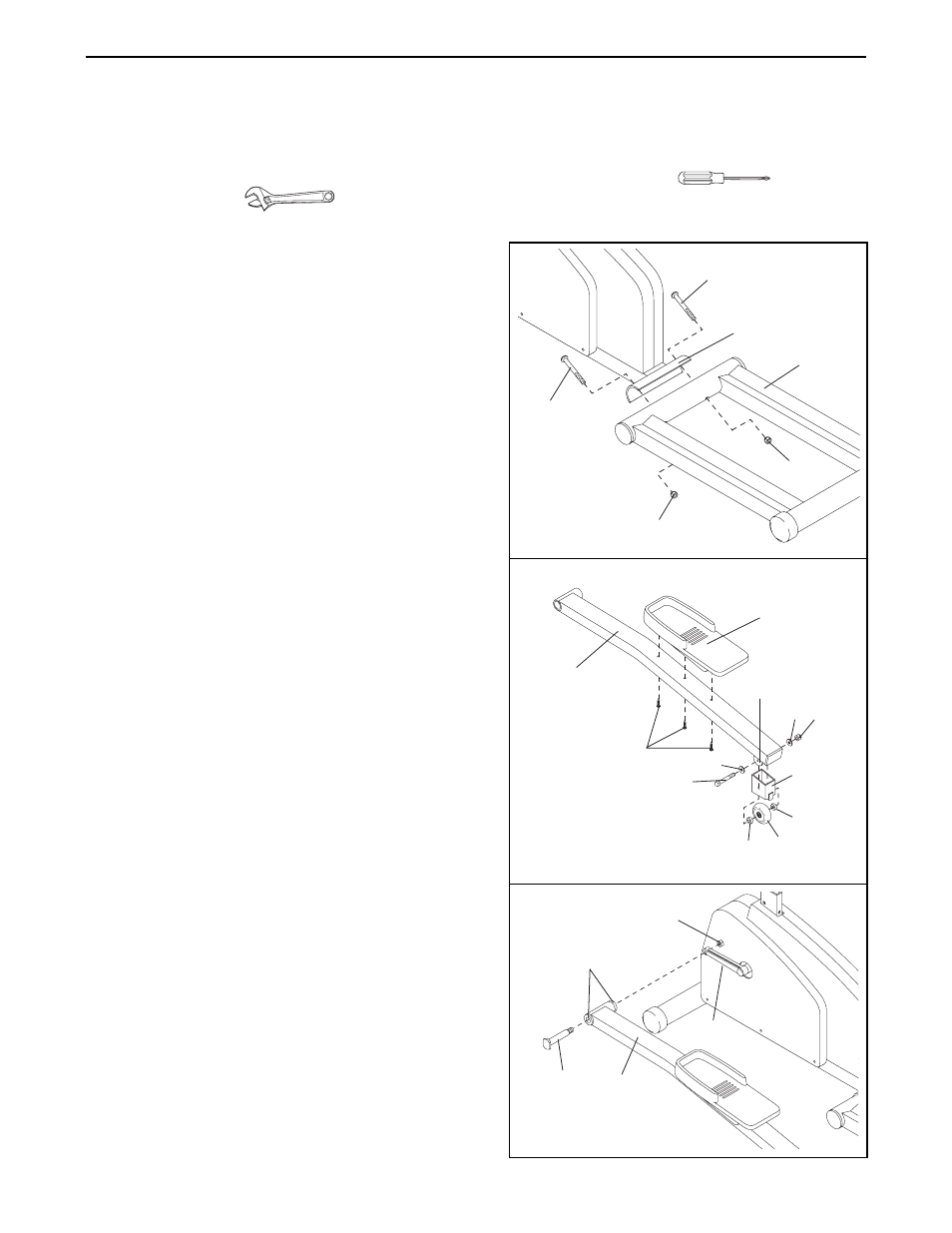

1. Position the Stabilizer (4) against the saddle on the

Frame (1). Insert two M10 x 75mm Button Head Bolts
(45) through the Frame and the Stabilizer. Tighten
M10 Nylon Locknuts (46) onto the Button Head Bolts.

2. Attach a Pedal (9) to the Left Pedal Arm (7) with three

M4 x 16mm Screws (51).

If there is not a Wheel (60) on the Left Pedal Arm (7),
attach one in the following way: Hold a Wheel Cover
(59) inside of the bracket on the Left Pedal Arm (7).
Insert an M8 x 55mm Hex Head Bolt (63) with an M8
Washer (74) into one side of the bracket and the
Wheel Cover. Slide a Wheel Spacer (79), a Wheel
(60), and another Wheel Spacer onto the end of the
Bolt. Insert the Bolt through the other side of the
Wheel Cover and the bracket. Tighten an M8 Nylon
Locknut (64) with an M8 Washer (74) onto the Bolt.

Assemble the Right Pedal Arm (not shown) in the
same way.

3. Insert a Pedal Bolt (36) through the bushings in the

Left Pedal Arm (7). Using the included flat wrench,
tighten the Pedal Bolt into the left arm of the Crank
(38). Next, back the Pedal Bolt out of the Crank a
quarter of a turn. While holding the Pedal Bolt sta-
tionary, tighten a 1/2Ó Nylon Locknut (37) onto it.

Attach the Right Pedal Arm (not shown) in the same
way.

ASSEMBLY

Place all parts of the WESLO

ECLIPSE in a cleared area and remove the packing materials. Do not dispose

of the packing materials until assembly is completed.

In addition to the included allen wrench and flat wrench, a phillips screwdriver and two
adjustable wrenches are required for assembly.

Bracket

Bushings
