25

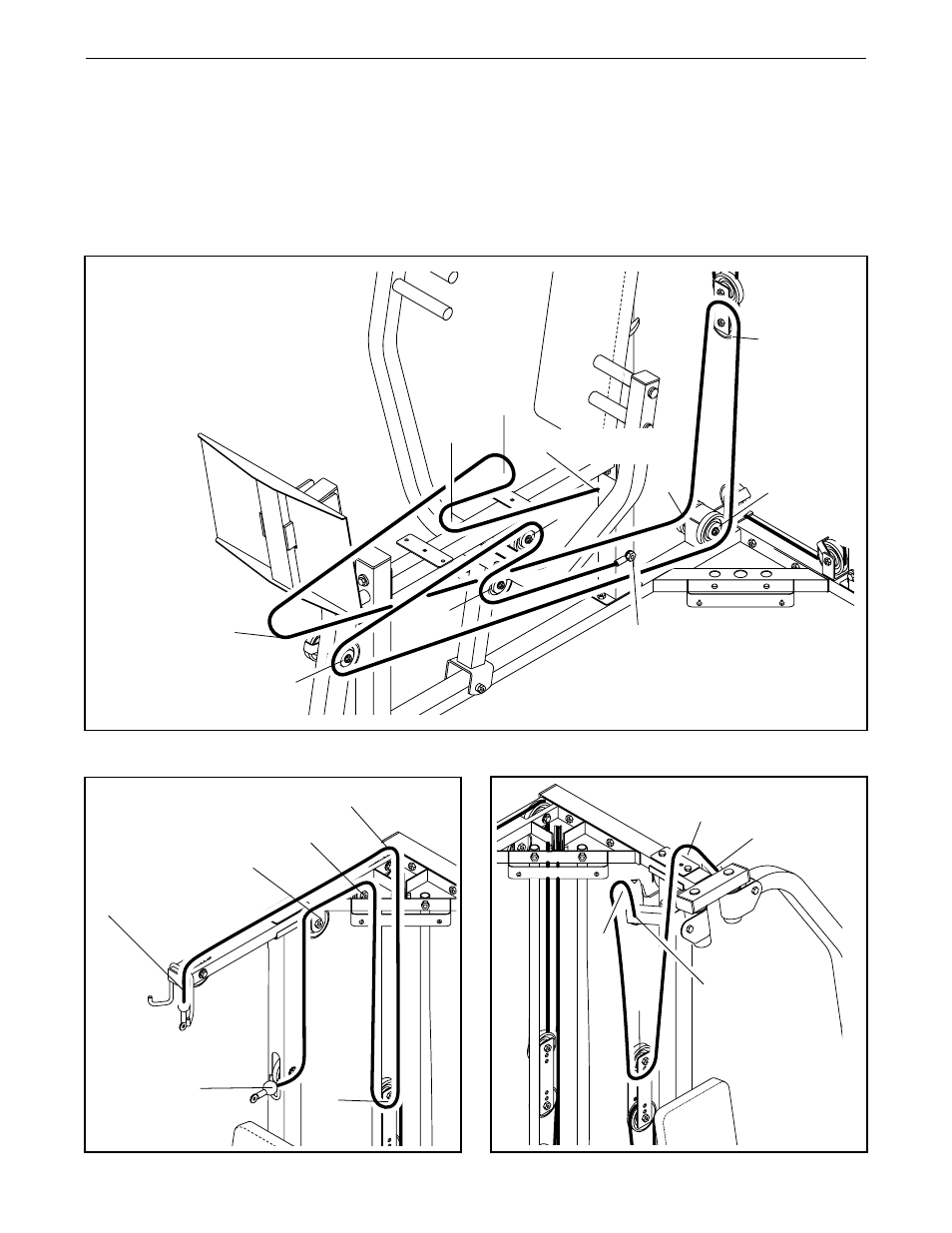

CABLE DIAGRAMS
The cable diagrams on this page and the next page show the proper routing of the Leg Press Cable (75), the Ab
Cable (47), the Butterfly Cable (73), and the Weight Cable (72). Use the diagrams to be sure that the Cables
have been assembled correctly. The starting and ending points of each Cable have been labeled. The numbers
show the proper route for each Cable. IMPORTANT: If the Cables have not been correctly routed, the
weight system will not function properly and damage may occur.
Butterfly Cable (73)
Leg Press Cable (75)
2
4
1—Right Arm
3
5—Left Arm
10
8
9
3
7
6
2
1—Press Upright
4
5
Ab Cable (47)
6—Ab Pulley
1—High Pulley
2
3
4
5
11—Press Upright
