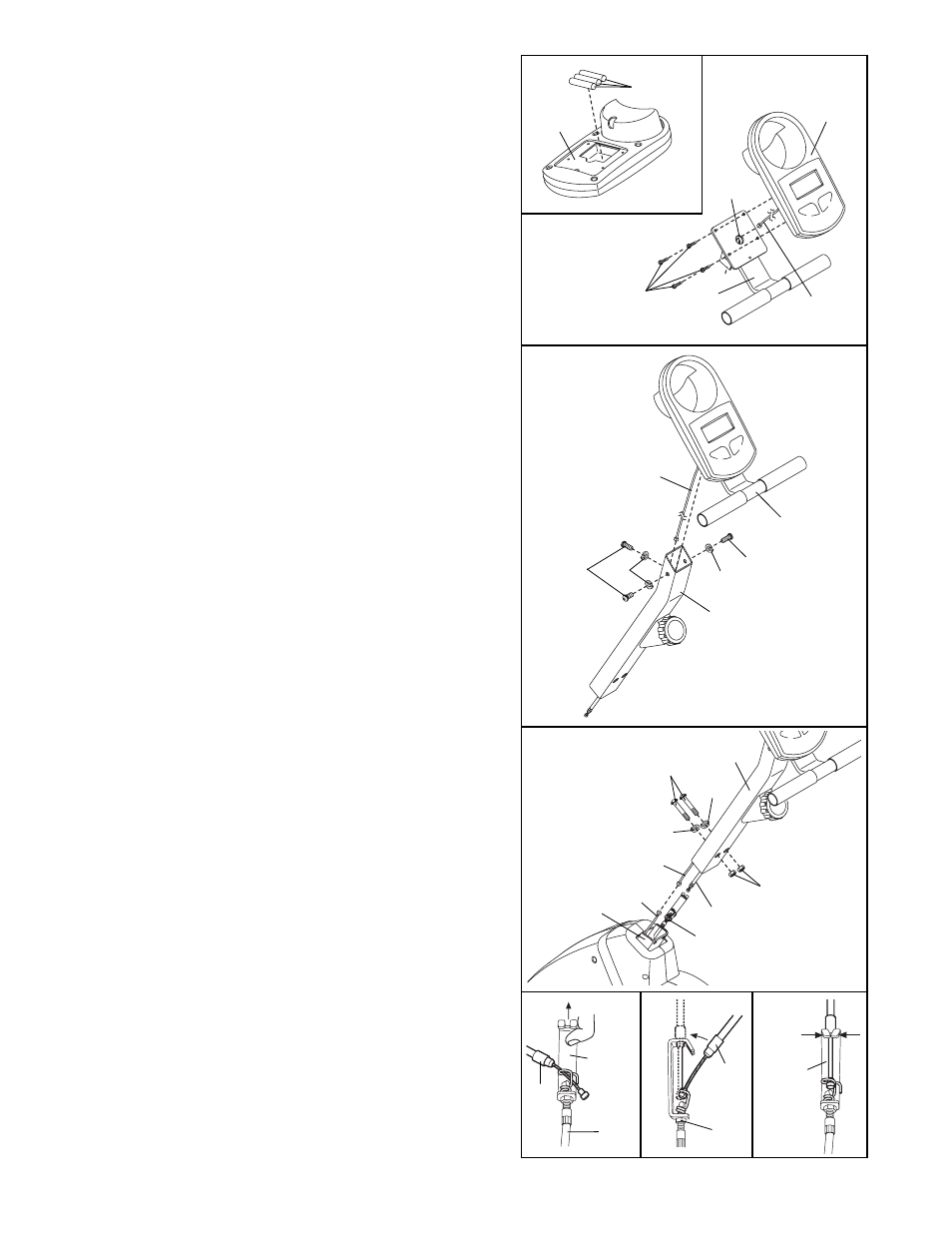

9. While another person holds the Handlebar (15) near
the Upright (13), insert the console wire down through
the Upright. Attach the Handlebar to the Upright with
three M8 x 15mm Button Screws (34) and three M8
Split Washers (42). Be careful to avoid pinching the
console wire. Note: The console wire is longer than
shown.
9
10
45
1
10
59
42
42
43
34
34
42
42
15
Console
Wire
13
13
Console Cable
Console Wire
10. While another person holds the Upright (13) in the
position shown, connect the console wire to the Reed
Switch Wire (43). Next, connect the console cable to
the Lower Cable (45) in the following way:
• See drawing A. Pull up on the metal bracket on the
Lower Cable (45), and insert the tip of the console
cable (CC) into the wire clip inside the metal bracket
as shown.
• See drawing B. Firmly pull up the console cable (CC)
and slide it into the top of the metal bracket as
shown.
• See drawing C. Using pliers, squeeze the prongs on
the upper end of the metal bracket together.
Push the excess wire and cable down into the Frame
(1), and insert the Upright (13) into the Frame. Be care-
ful to avoid pinching the wires and cables. Attach
the Upright to the Frame with two M8 x 48mm Bolts
(59), two M8 Split Washers (42), and two M8 Nylon
Locknuts (10).
A B C
45
CC
CC
Metal
Bracket
Metal
Bracket
45
15
16
Hole
Console
Wire
Batteries
49
16
8
8. The Console (16) requires three AA batteries (not
included); alkaline batteries are recommended. Insert
three batteries into the Console as shown. Make sure
that the batteries are oriented as shown by the
markings inside the Console.
Hold the Console (16) near the Handlebar (15). Insert
the console wire down through the indicated hole in
the Handlebar. Note: The console wire is longer than
shown.
Attach the Console (16) to the Handlebar (15) with
four M4 x 16mm Screws (49). Be careful to avoid
pinching the console wire.
