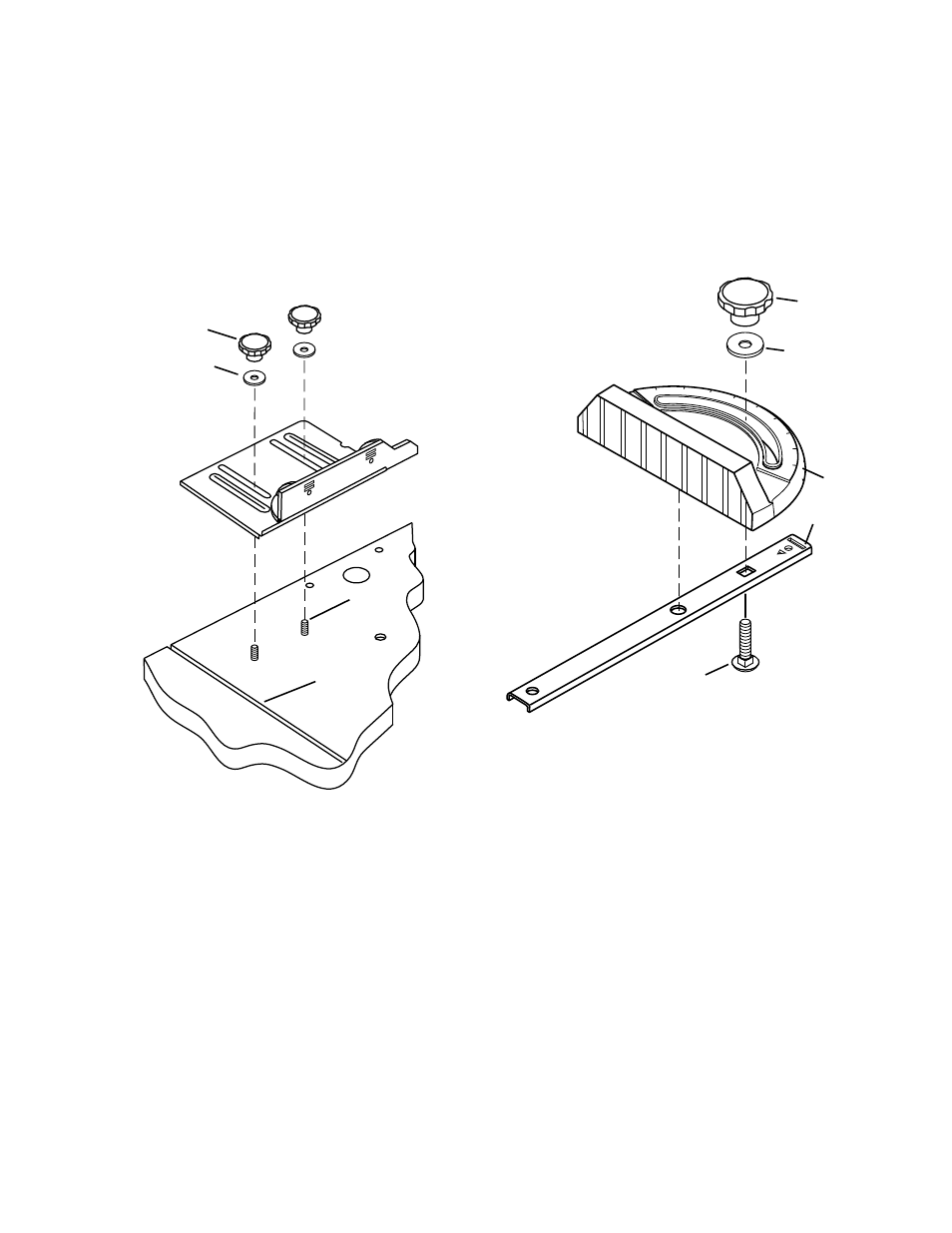

3. Assemble miter guide head (M) and
miter bar (N) with carriage bolt (Z),
washer (U), and knob (L).
See Figure 7.
Figure 7
60
45
30
15
0
15
30
45 60
L
U
N
Z
M
2. Attach fence assemblies to table with
washers (U) and knobs (L). Make
sure that the turned down flange fits
snugly against inside wall of provided
groove in tabletop. See Figure 6.
U
L
Figure 6
R
groove
