Weslo WLEL45070 User Manual
Page 11

HOW TO ADJUST THE DRIVE BELT
If the Drive Belt (32) slips as you exercise on the
ECLIPSE II, the Drive Belt should be adjusted. To
adjust the Drive Belt, the side shield must first be
removed. Refer to the instructions on page 10 and
remove the side shield.

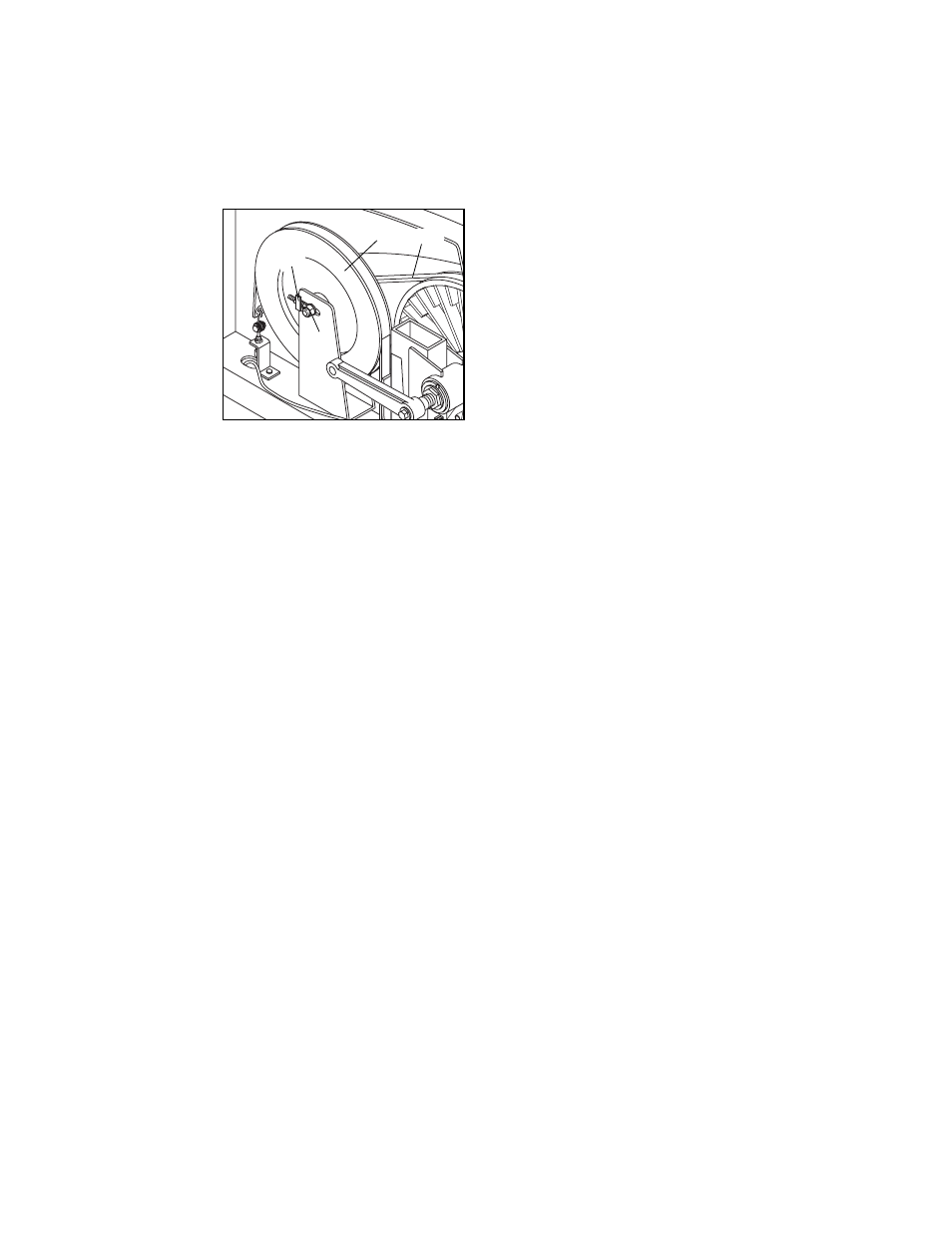

Next, loosen the
two 3/8Ó Nylon
Jam Nuts (23)
(there is one on
each side of the
Flywheel [20]).
To tighten the
Drive Belt (32),
turn the two
1/4Ó Nylon
Locknuts (26)
clockwise; to
loosen the Drive
Belt, turn the Nylon Locknuts counterclockwise. Make
sure that the Flywheel is straight and retighten the 3/8Ó
Nylon Jam Nuts (23). When the Drive Belt is properly
adjusted, reattach the side shield and the crank arms.
11
20
23
26
32
