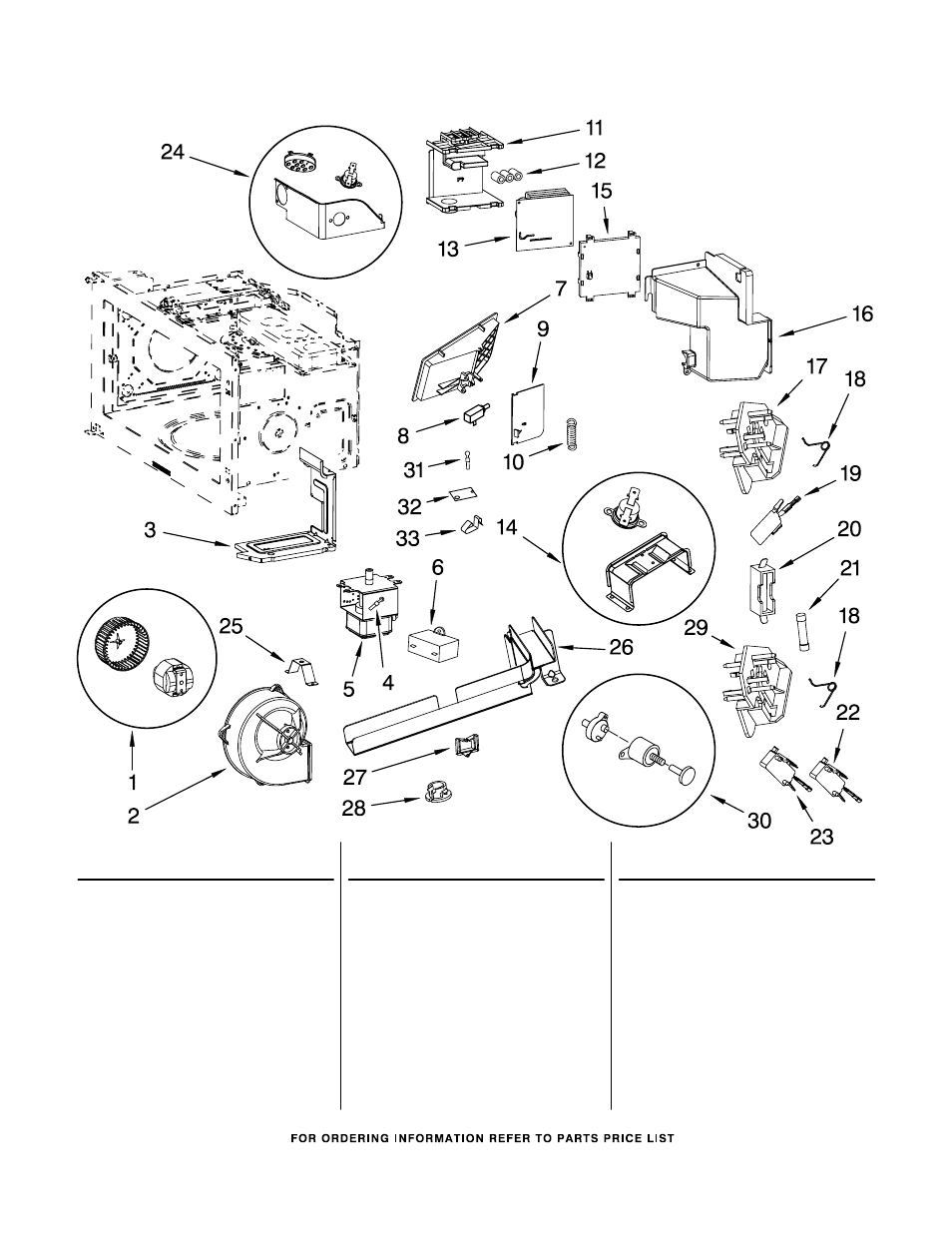

INTERIOR AND AIR FLOW PARTS

5

For Models: GH7208XRQ0, GH7208XRB0, GH7208XRS0, GH7208XRT0

(White) (Black) (Stainless Steel) (Biscuit)

8206221

Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION

1

8206075 Fan Motor Assy

2

8206076 Housing, Fan

3

8206077 Plate, Divider

4

8206078 Thermistor,

Magnetron

5

8206079 Magnetron

6

8206080 Motor, Capacitor

7

8206081 Housing, Valve

8

8206082 Solenoid

9

8206083 Lid, Valve

10

8206084 Spring, Valve

11

8206085 Cover, Inverter

12

8206086 Ferrite Ring

13

8206087 Inverter

14

8206035 Thermostat,

Base Assembly

15

8206089 Holder, Inverter

16

8206090 Air Guide,

Magnetron

17

4393595 Support, Interlock

18

8206091 Spring, Interlock

19

4393697 Switch, Micro

(Secondary)

20

8184312 Holder, Fuse

21

4393308 Fuse

22

4393598 Switch, Micro

(Monitor)

23

4393599 Switch, Micro

(Primary)

24

8206026 Humidity Sensor

& Thermostat Assy

25

8206031 Support, Air Guide

26

8206036 Protector, Wire

27

8206037 Clip, Saddle

28

8206038 Clip, Round

29

8206209 Support, Interlock

30

8206210 Piston Assembly

31

8206023 Sensor,

Temperature

32

8206224 Cover

33

8206223 Clip, Sensor
