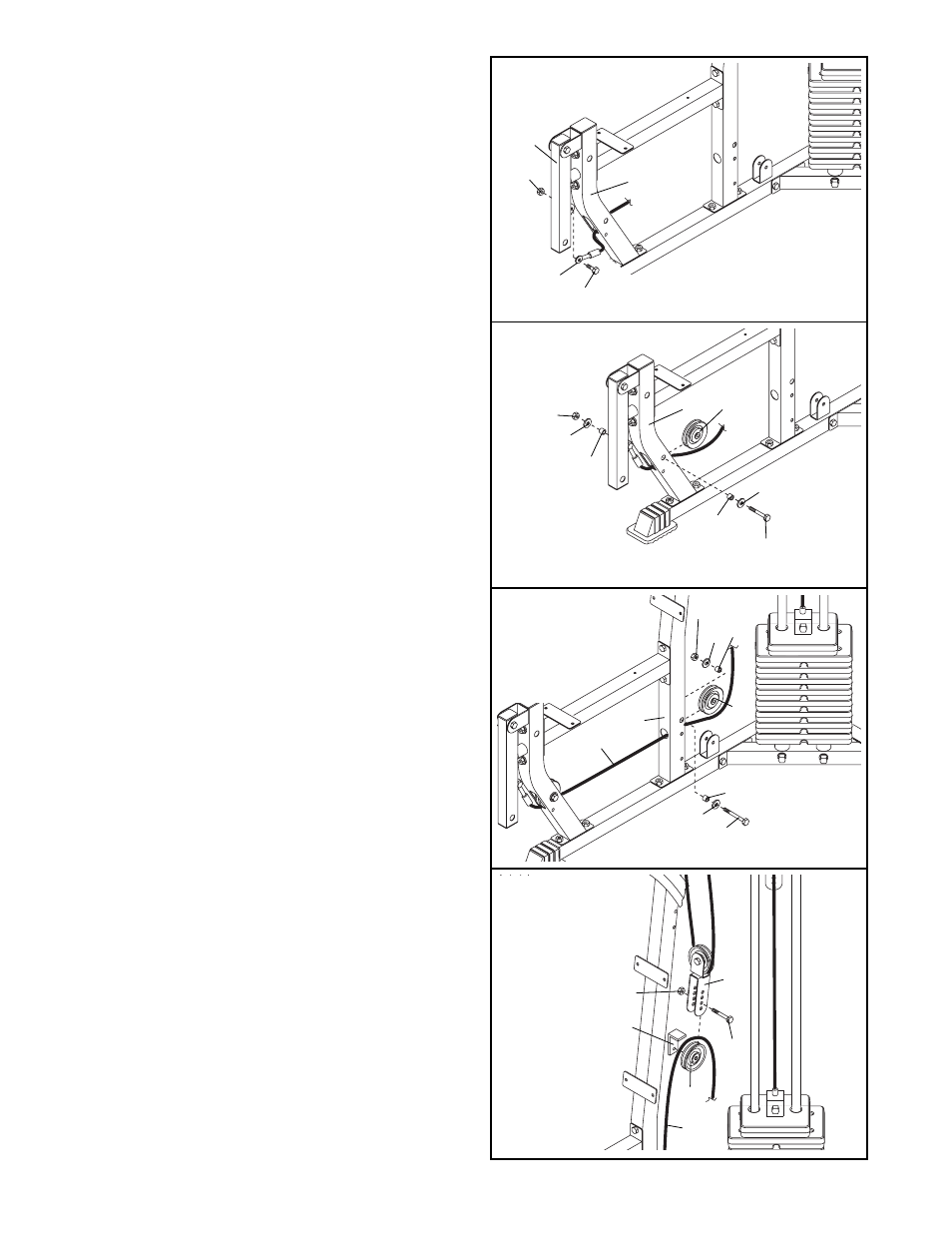

35. Route the Leg Lever Cable (96) through the Right
Upright (6) and around a 3 1/2” Pulley (38).
Attach the Pulley inside the Upright with a 3/8” x
2 3/4” Bolt (81), two 3/8” Washers (75), two 1/2”
Spacers (34), and a 3/8” Nylon Locknut (70).
36. Wrap the Leg Lever Cable (96) around a 3 1/2”
Pulley (38). Attach the Pulley and a Cable Trap
(91) to the bottom set of holes in the indicated
Double “U”-Bracket (56) with a 3/8” x 2” Bolt (62)
and a 3/8” Nylon Locknut (70). Be sure the
Cable Trap is turned to hold the Cable in the
groove of the Pulley.
34. Attach a 3 1/2” Pulley (38) inside the Right Leg
(73) with a 3/8” x 2 3/4” Bolt (81), two 3/8”
Washers (75), two 1/2” Spacers (34), and a 3/8”
Nylon Locknut (70).
33. Locate the Leg Lever Cable (96). Route the
eyelet end of the Cable through the Right Leg
(73) and attach it to the Leg Lever (4) with a 5/16”
x 1” Shoulder Bolt (78) and a 5/16” Nylon Locknut
(71).
