N o t e b o o k D r i v e D o c k v 4 U s e r M a n u a l
- 1 -
Notebook DriveDock™ v4
USER’S MANUAL
Revised May 21, 2007
Features
• Dual, daisy-chainable FireWire ports
• USB 2.0 mini port
• Bus powered through FireWire, plus two options for
external power
• LEDs show when unit is receiving power as well as
power output status
• Host-detection LEDs indicate connection to either
FireWire or USB host
Installation Instructions
1.
Check the accessories packaged with your Notebook DriveDock. Please contact WiebeTech if any items are
missing or damaged. The box should contain:
NBDDv4
NBDD8v4
Notebook DriveDock unit
1
FireWire 400 cable
1
Hard drive screws
4
Rubber bumpers
6
Manual and Warranty information
(on CD)
Notebook DriveDock unit
1
FireWire 800 cable
1
Hard drive screws
4
Rubber bumpers
6
Manual and Warranty information
(on CD)
2.

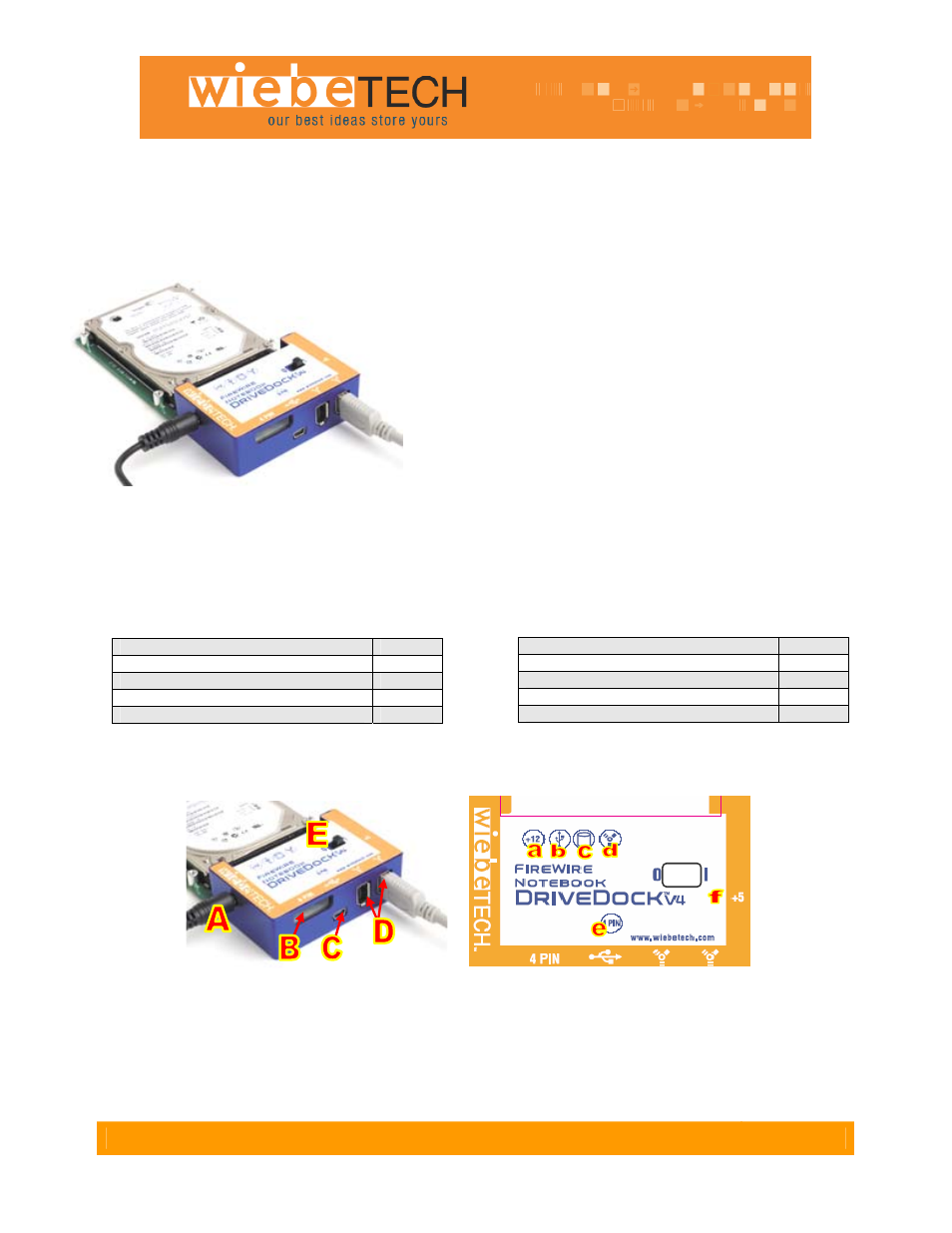

Take a moment to familiarize yourself with the parts of your new Notebook DriveDock. This will aid you in
the remaining steps. (FireWire 400 ports will be FireWire 800 ports on NBDD8v4)
A
+12V power input from optional AC
adapter
B
DC input for 4-pin power connector
C
USB 2.0 mini port
D
Dual FireWire Ports
E
Power switch (On / Off)
LEDs:
a +12V DC power input is present
b Unit is connected to USB host
c Hard drive access
d Unit is connected to FireWire host
e 4-pin power input is present
f +5V Power output to drive
