10
9
8
7
6
5
4 3 2 1
12
14
13
11
Menu Touch Key
for entering
menu functions
of thermostat
Temperature
UP/Down Touch Key
used for modifying
setpoint as well as to
navigate the menus
Desired Temperature
or Setpoint
Time of Day
System
Setting
Touch Key
Fan
Touch Key
to select
fan setting
Indicates when
thermostat is calling
for Heating or Cooling
Day of Week
Room
Temperature
Home Screen Displa
y
T
ouc
h K
e
ys f
or Pr
ogramming
and Configuration Items

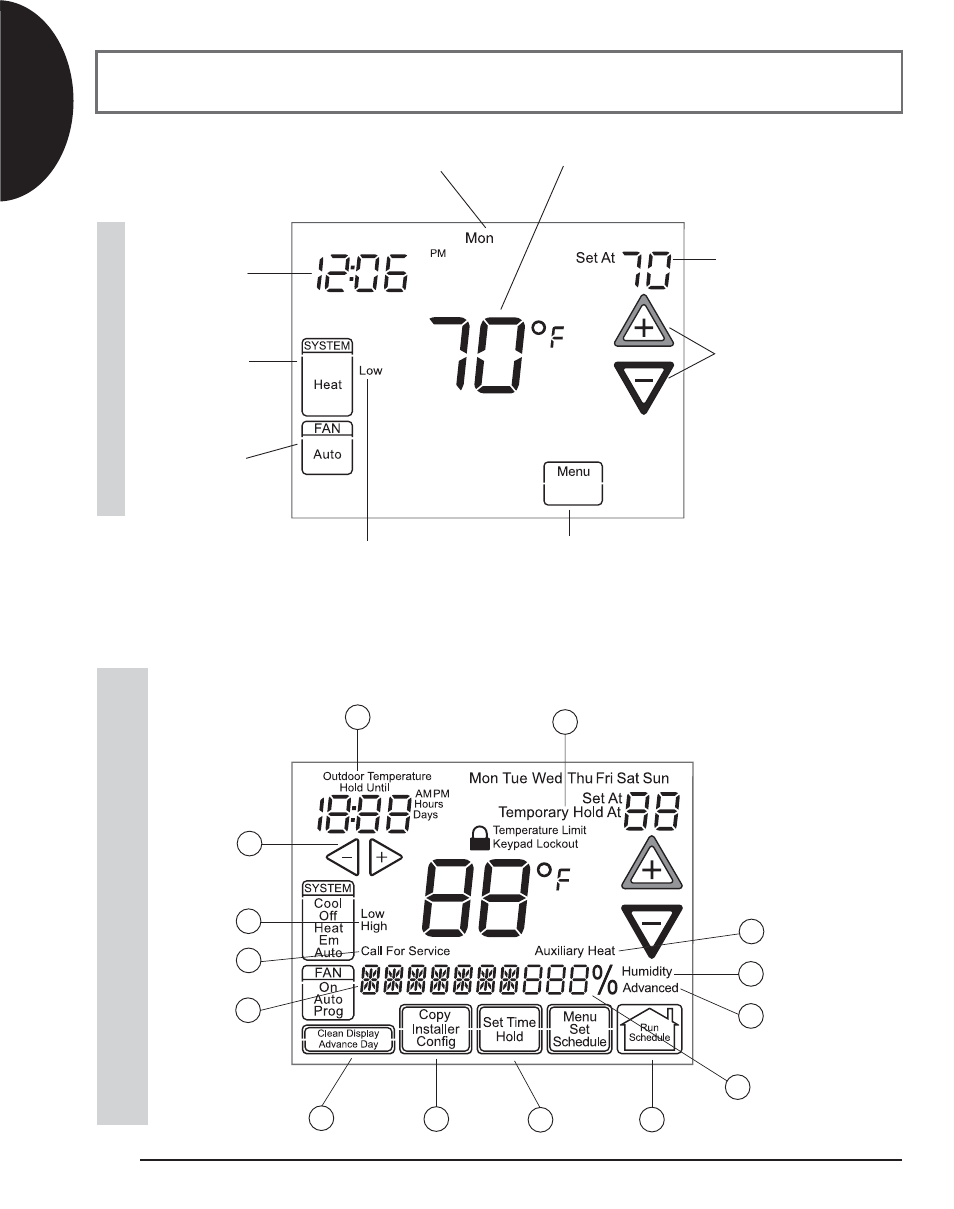

TOUCHSCREEN THERMOSTAT DISPLAY OVERVIEW
4
Display of All Possible Icons and Touch Keys Used by Thermostat
O
VERVIEW
