21

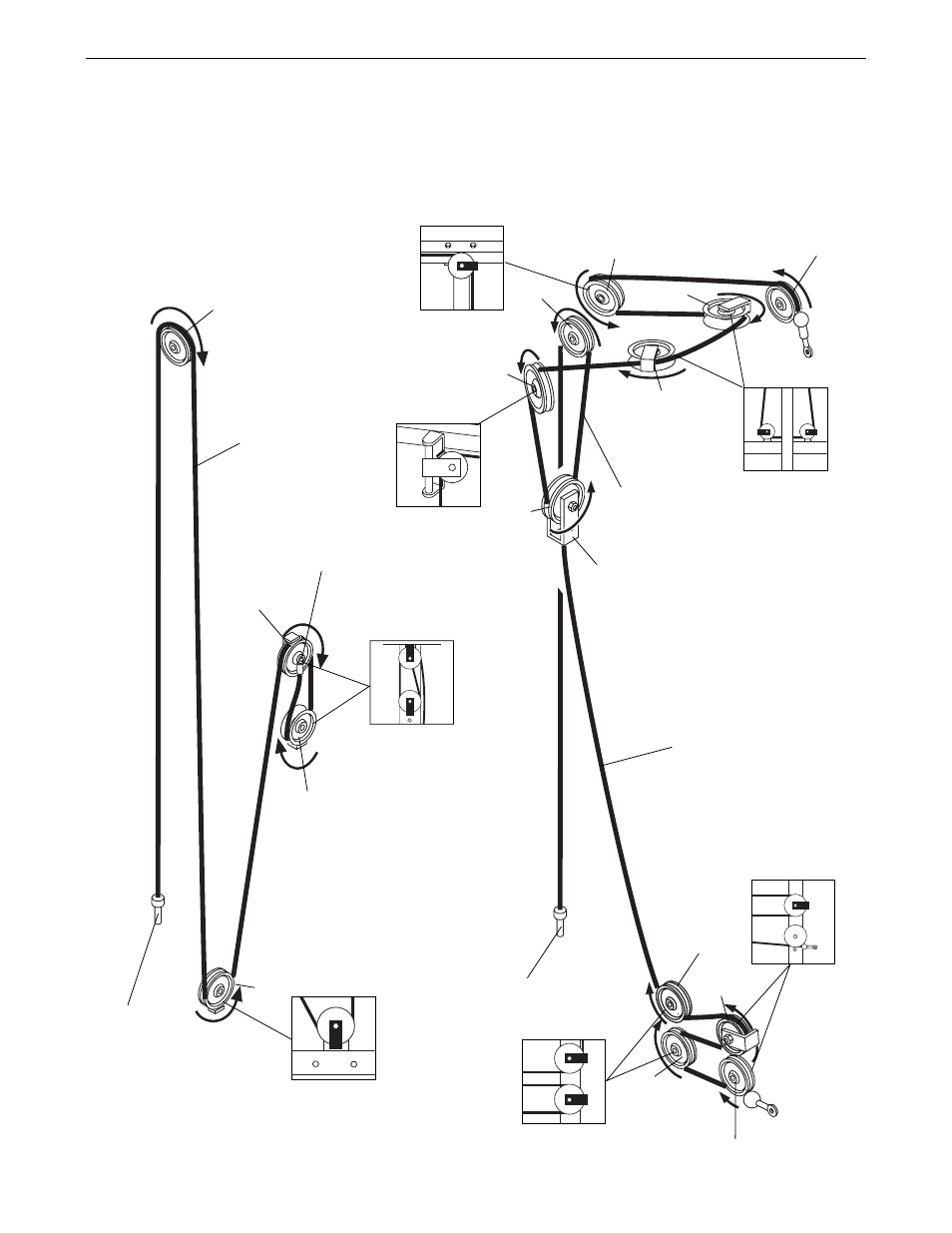

CABLE DIAGRAM
The cable diagram below shows the proper routing of the Long Cable (72), the Medium Cable (58), and the
Short Cable (23). Use the diagram to be sure that the three cables and cable traps have been assembled cor-
rectly. If the cables have not been correctly routed, the weight system will not function properly and damage may
occur. The insets show the proper positioning of the cable traps; the cable traps should be positioned so that the
cables will not come off the pulleys.
Be sure that the cable traps do not touch or bind the cables.
Short Cable (23)
Long Cable (72)
Medium
Cable (58)
1—Rear Weight
Stack
2
3
1—Low Pulley
2
3
4
5—Long “U”-Bracket
TOP VIEW
1—High Pulley 2
3
4
7
6
8—Front Weight
Stack
5
4
5
6—Squat Arm
Bracket
