Top venting, Top venting parts – Whirlpool GY398LXPB03 User Manual
Page 8

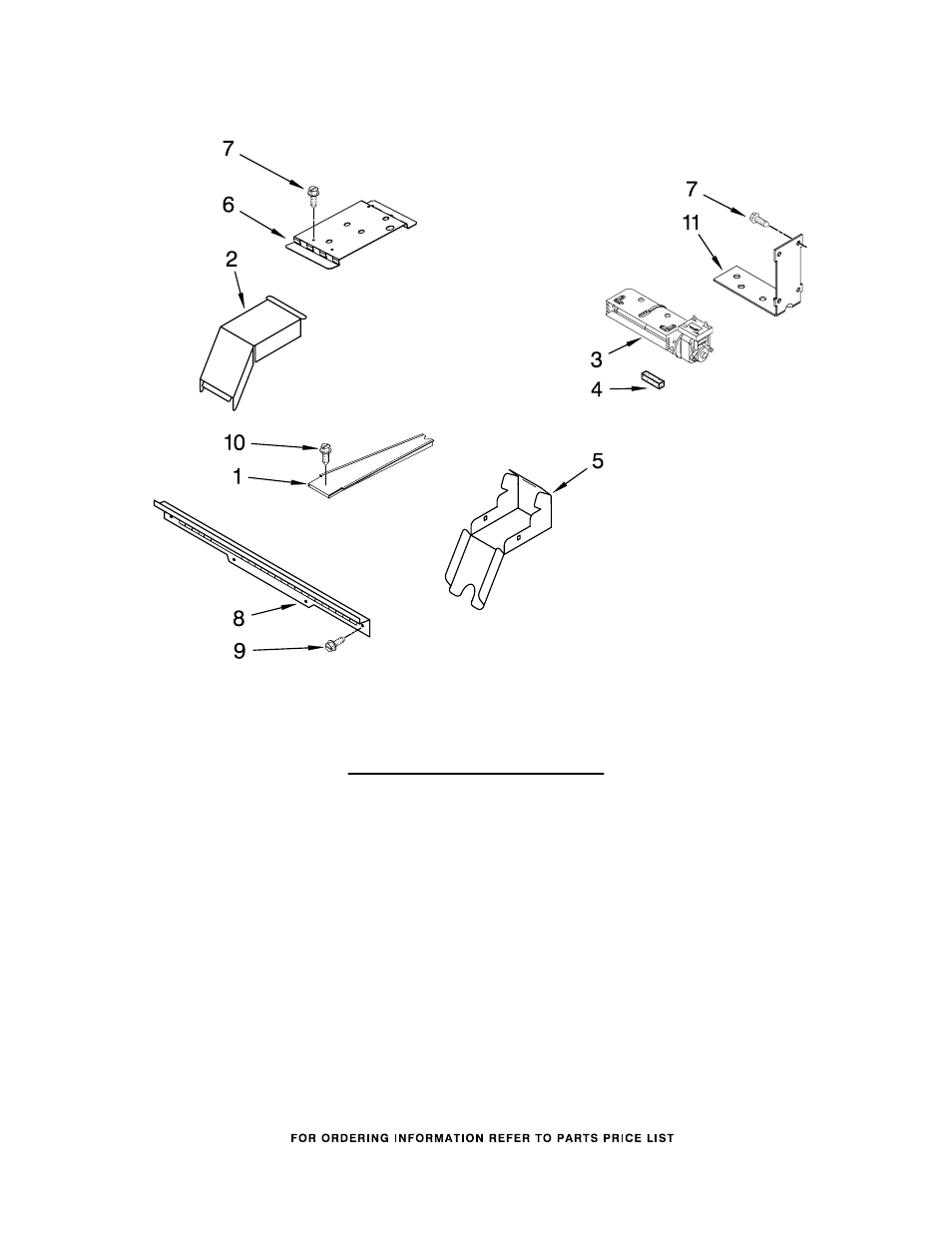

TOP VENTING PARTS
8
For Models: GY398LXPB03, GY398LXPQ03, GY398LXPS03
(Black) (White) (Stainless)
W10129039
Illus. Part
No. No. DESCRIPTION
1
4451759 Vent, Exhaust
2
4455178 Elbow, Vent Top
3
9759320 Blower
4
4451758 Block, Foam
5
4455177 Elbow, Vent Bottom
6
9759938 Bracket, Terminal
Box
7
4449809 Screw (2)
8
9757118BL Vent, Control
Panel
9
4450038 Screw
10
4449040 Screw
11
4455352 Bracket, Blower
