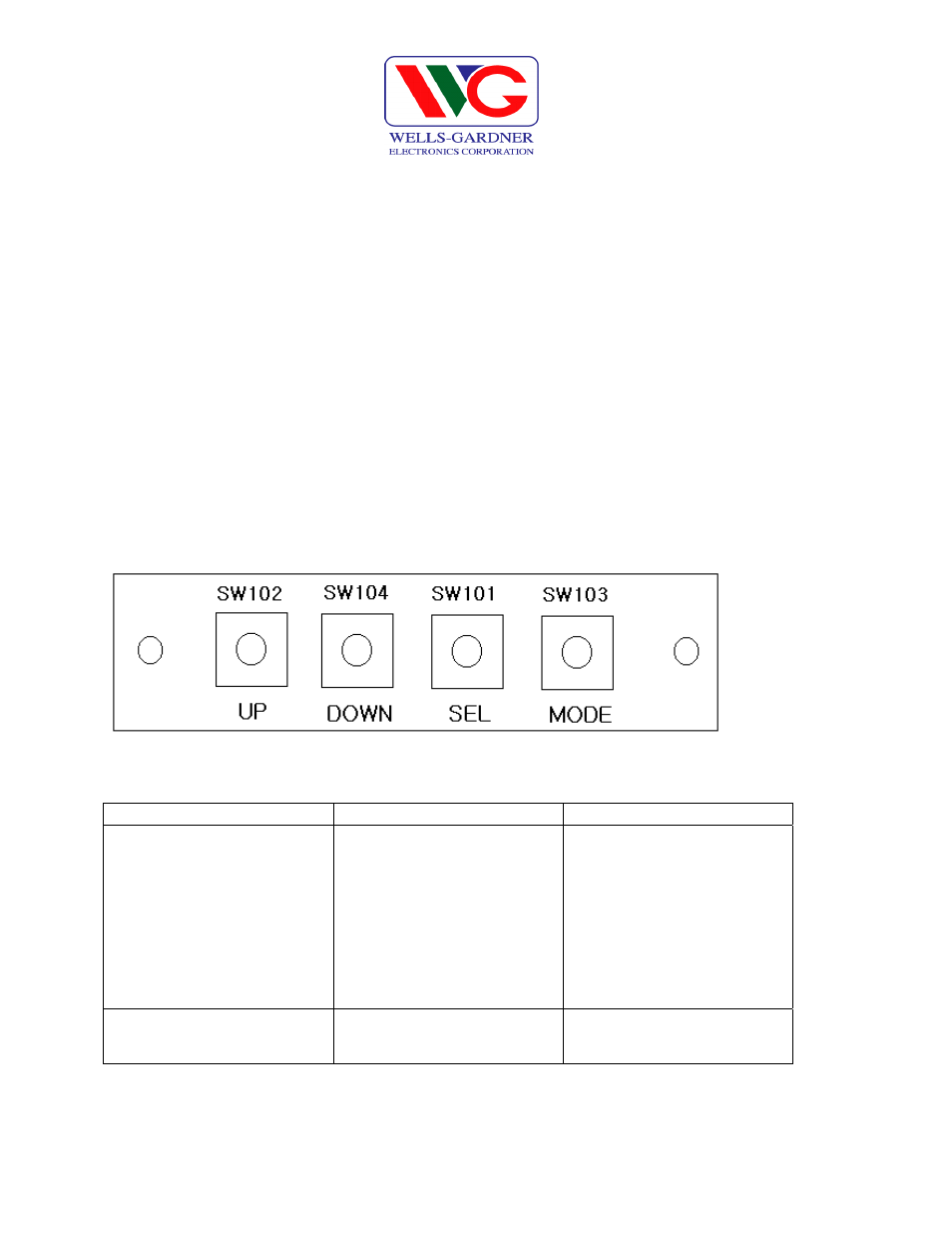

CONTROLS AND ADJUSTMENTS:

There are four switches on the control panel. Adjustable controls allow the best display
status for individual requirements.

6-1. Key

Function.

①

MODE/EXIT

MODE – Call the Main-Menu OSD

②

SEL

SEL – Call the Sub-Menu OSD

③

DOWN/UP

When the Main-Menu is displayed, you can select each function using

these keys.
When the Sub-Menu is displayed, you can change the amplitude of
the selected function of the screen using these keys.

6-2.

O.S.D. CONTROL METHOD.
User Adjustment.

Location Adjustment

Method

Function

CUSTOMER
CONTROL
PCB

OSD CONTROL

Brightness
Contrast
Horizontal Position
Horizontal Size
Vertical Position
Vertical Size
Side Pincushion
Trapezoid
Pin Balance
Parallelogram

MAIN PCB

VR control, VR501
VR301
FBT

Sub-Bright
H.V. Adjustment*
Focus and Screen

*NOTE: (FACTORY ADJUSTED AND EPOXYED)
