TERMINALS
12
English

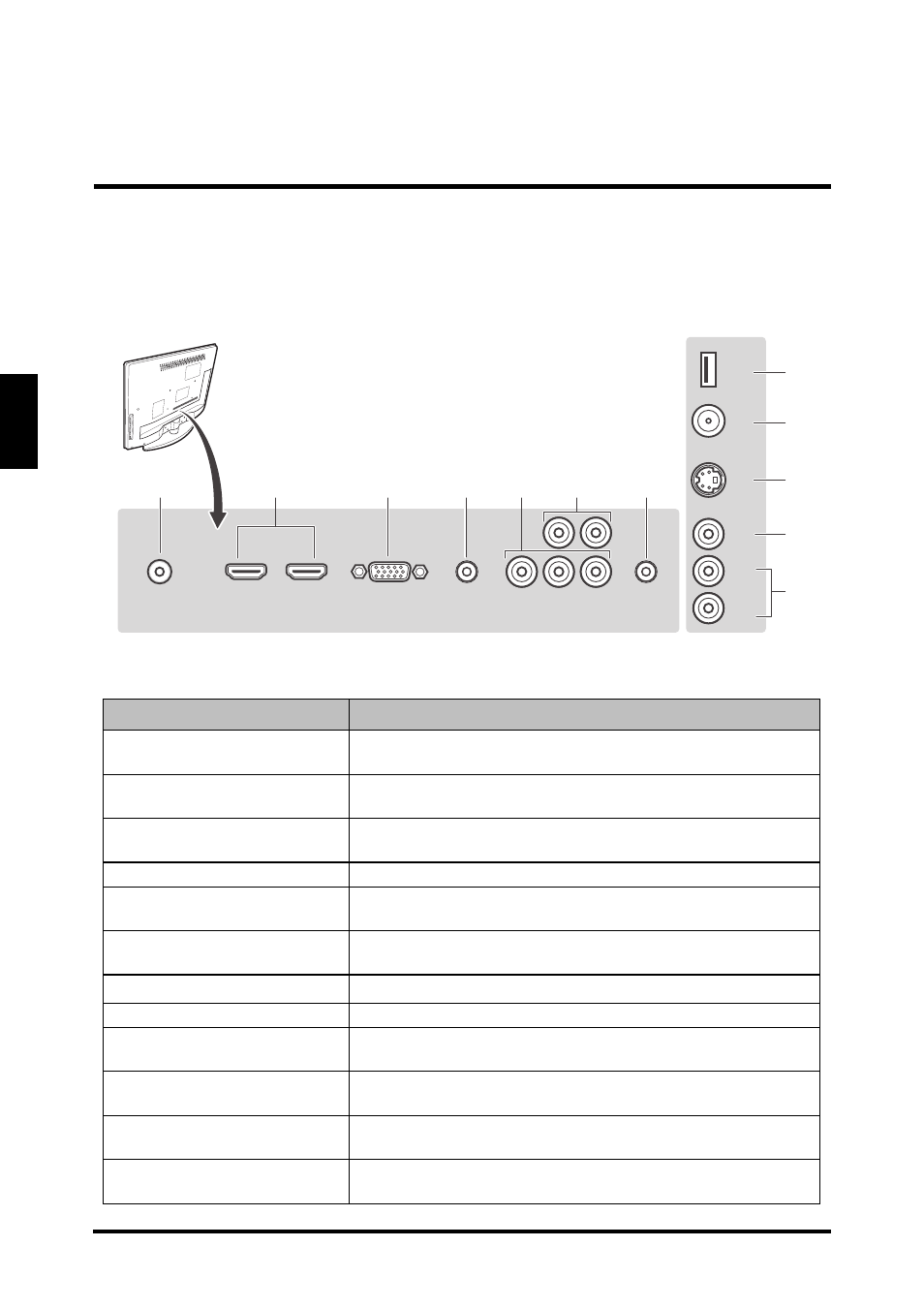

TERMINALS
Item Function
1. DC in
Connects the AC adapter from this outlet to a
power source.
2. HDMI 1/2
Connects to an external AV device such as a
VCR, DVD player, set-top box, or game system.
3. VGA
Connects to a computer or other device with a
VGA output using a 15-pin VGA cable.
4. Audio in Connects to the audio out port of a computer.
5. Component input
(Video)
Connect to an external AV device such as a VCR,
DVD player, set-top box, or game system.
6. Component input
(Audio)
Connect to an external AV device such as a VCR,
DVD player, set-top box, or game system.
7. Audio out Connect to an audio output device.
8. USB Service port For service only.
9. TV tuner
Connects the LED TV to an antenna or cable
service.
10. S-Video input
Connect to an external AV device such as a VCR,
DVD player, set-top box, or game system.
11. Composite input
(Video)
Connect to an external AV device such as a VCR,
DVD player, set-top box, or game system.
12. Composite input
(Audio)
Connect to an external AV device such as a VCR,
DVD player, set-top box, or game system.
USB
ANT
.
S-VIDEO
Y - Pb - Pr
R
-
L
-
A
V
VGA OUT
R - L AUDIO
IN
AUDIO
HDMI 2 HDMI 1 DC IN
1 3 4 7
8
9
10
11
12
2 5 6
