RIDING MOWER - -CATALOG NO. WE261

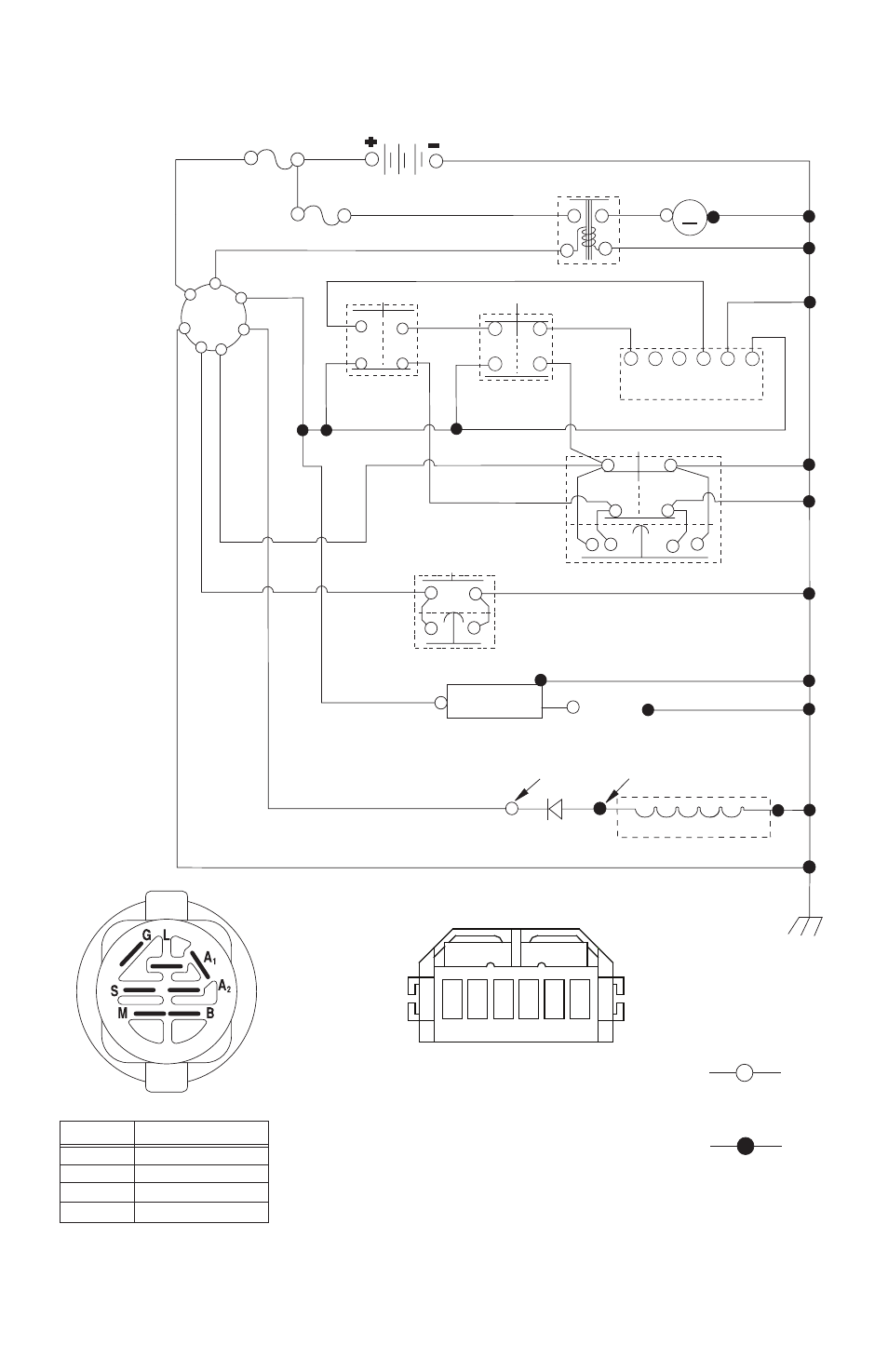

SCHEMATIC
BATTERY
FUSE-40A
RED
RED
WHITE
BLACK/WHITE
RED
GREEN
YELLOW
BLACK/WHITE
BLACK
BLACK
GRAY
BLACK
RELAY
M
STARTER
CLUTCH / BRAKE
(PEDAL UP)
SEAT SWITCH
(NOT OCCUPIED)
IGNITION
UNIT
S
M B
G A1
A2 L
REVERSE SWITCH
SPARK PLUG
GAP
NOT IN REVERSE
SHORTING CONNECTOR
ATTACHMENT CLUTCH
(CLUTCH OFF)
REMOVABLE
CONNECTIONS
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED CLIPS
WERE REMOVED FOR SERVICING OF
UNIT, THEY SHOULD BE RE-INSTALLED
TO PROPERLY SECURE YOUR WIRING.
IGNITION SWITCH
CIRCUIT POSITION
OFF
B+A1
RUN/OVERRIDE
B + S + A1 START
M+G+A1
B+A1 RUN
“MAKE”
L+A2
NON-REMOVABLE
CONNECTIONS
STATOR
DIODE
28 VOLTS AC MIN. @ 3600 RPM
(CHARGING SYSTEM DISCONNECTED)
CHARGING SYSTEM OUTPUT
. 5 AMP DC @ 3600 RPM
SCH21
STARTER
FUSE-5A
SAFETY START MODULE
A B F D E C
RED RED
BLACK/WHITE
BLACK
WHITE
WHITE
BLACK
BLACK/WHITE
BLACK
A B D C E F
SAFETY START MODULE
VIEWED FROM MATING SIDE
