Weider WEBE07920 - Manual (Page 6)

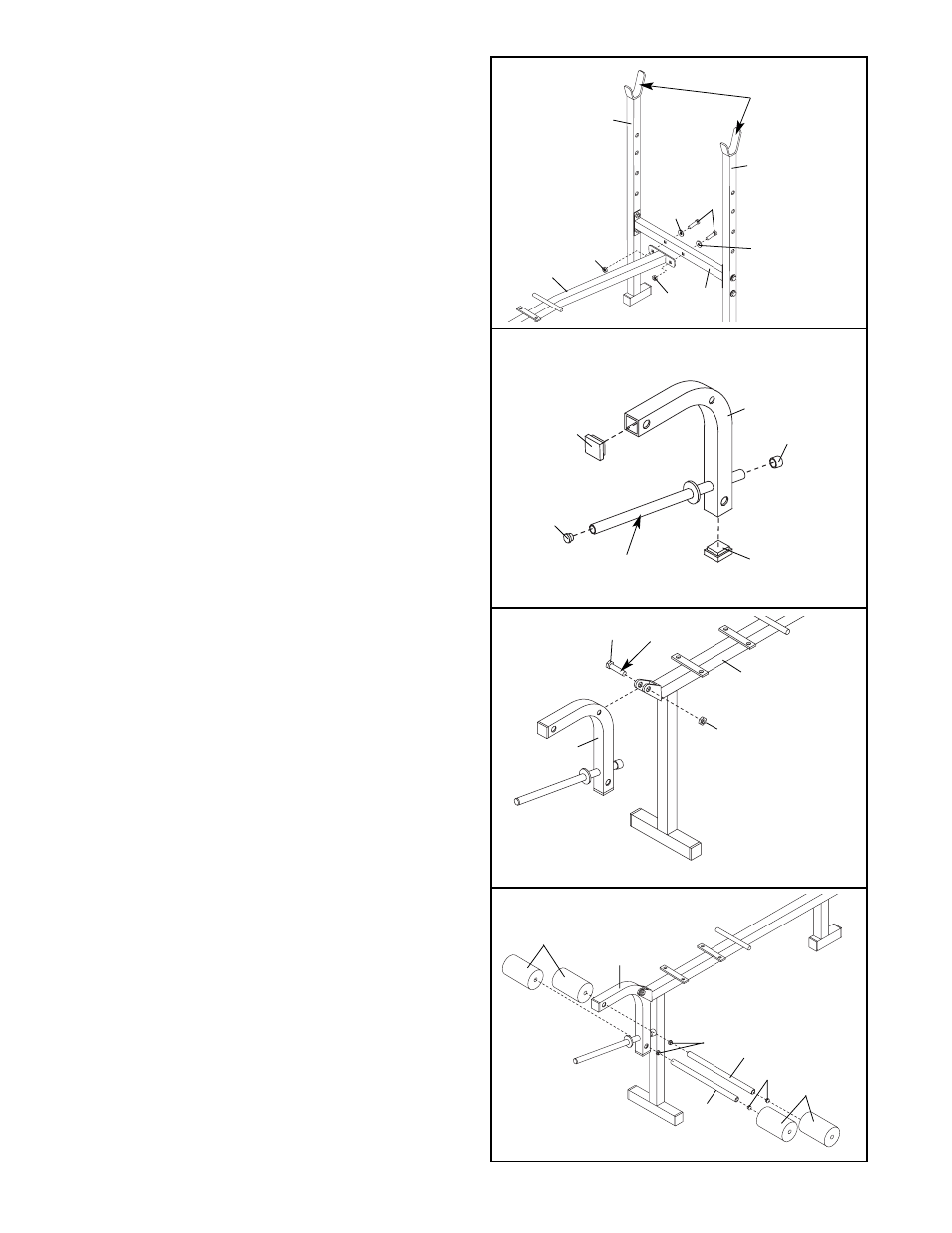

3. Be sure that the Uprights (1) are oriented as
shown; the high side of the weight rests must
be on the side indicated. Attach the Frame (2) to
the Crossbar (3) with two M8 x 55mm Bolts (14),
two M8 Washers (12), and two M8 Nylon Locknuts
(13). Do not tighten the Locknut yet.
4. Tap a 30mm Square Inner Cap (22) into each end
of the Leg Lever (4).
Tap a 25mm Round Inner Cap (24) into the indi-
cated end of the weight tube. Tap the 1” Angled
Round Cap (20) onto the other end of the weight
tube.
5. Lubricate the M10 x 60mm Bolt (18). Attach the
Leg Lever (4) to the Frame (2) with the Bolt and
the M10 Nylon Locknut (19). Do not overtighten
the Locknut; the Leg Lever must be able to
pivot easily.
6. Tap two 19mm Round Inner Caps (9) into each
Pad Tube (10). Insert the Pad Tubes into the
holes in the Leg Lever (4). Slide two Foam Pads
(23) onto each Pad Tube.
3
1
2
22
24
9
10
10
9
4
23
23
19
2
4
4
20
22
3
14
12
12
13
13
6
5
18 Lubricate
Weight
Tube
4
6
High Side of
Weight Rests
1
