Planning Information
30" (762) Gas Range
M O D E L R 3 0 4
Dimensions in parentheses are in
millimeters unless otherwise specified.
4
30" min (762)
COUNTERTOP
TO COMBUSTIBLE
MATERIALS
30" (762) TO 36" (914)
COUNTERTOP
TO BOTTOM OF
VENTILATION HOOD
VENTILATION
HOOD
30 1 / 4 " (768)
FINISHED ROUGH
OPENING WIDTH
ISLAND INSTALLATIONS: 12" (305) MINIMUM CLEARANCE FROM BACK
OF RANGE TO COMBUSTIBLE REAR WALL ABOVE COUNTERTOP –
0" (0) TO NON-COMBUSTIBLE MATERIALS
G
5"
(127)
2"
(51)
12"
(305)
E
12"
(305)
10"
(254)
5 1 / 2 "
(140)
8"
(203)
LOCATION OF GAS SUPPLY EXTENDS
3" (76) ON FLOOR FROM BACK WALL
3"
(76)
36"
(914)
18" min (457)
TO COUNTERTOP
37"
(940) TO
COOKING
SURFACE
13" max
(330)
6" min (152)
TO
COMBUSTIBLE
MATERIALS
(BOTH SIDES)

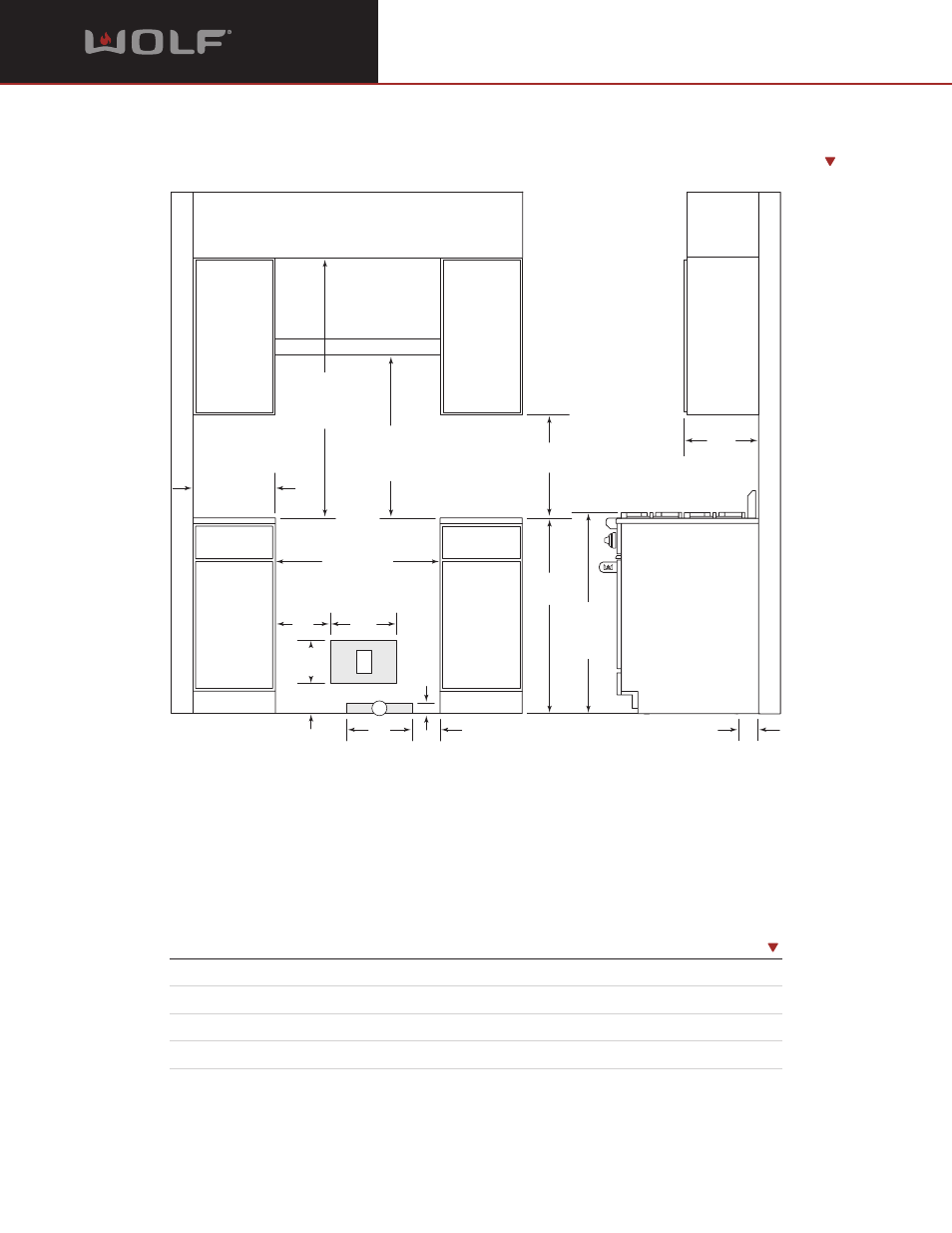

I N S T A L L A T I O N S P E C I F I C A T I O N S
D I M E N S I O N S
Overall Width of Range 30" (762)
Finished Rough Opening Width 30 1 / 4 " (768)
Location of Gas Supply Within shaded area
Location of Electrical Within shaded area
See Installation Instructions shipped with unit for detailed specifications.
