Cable Diagrams

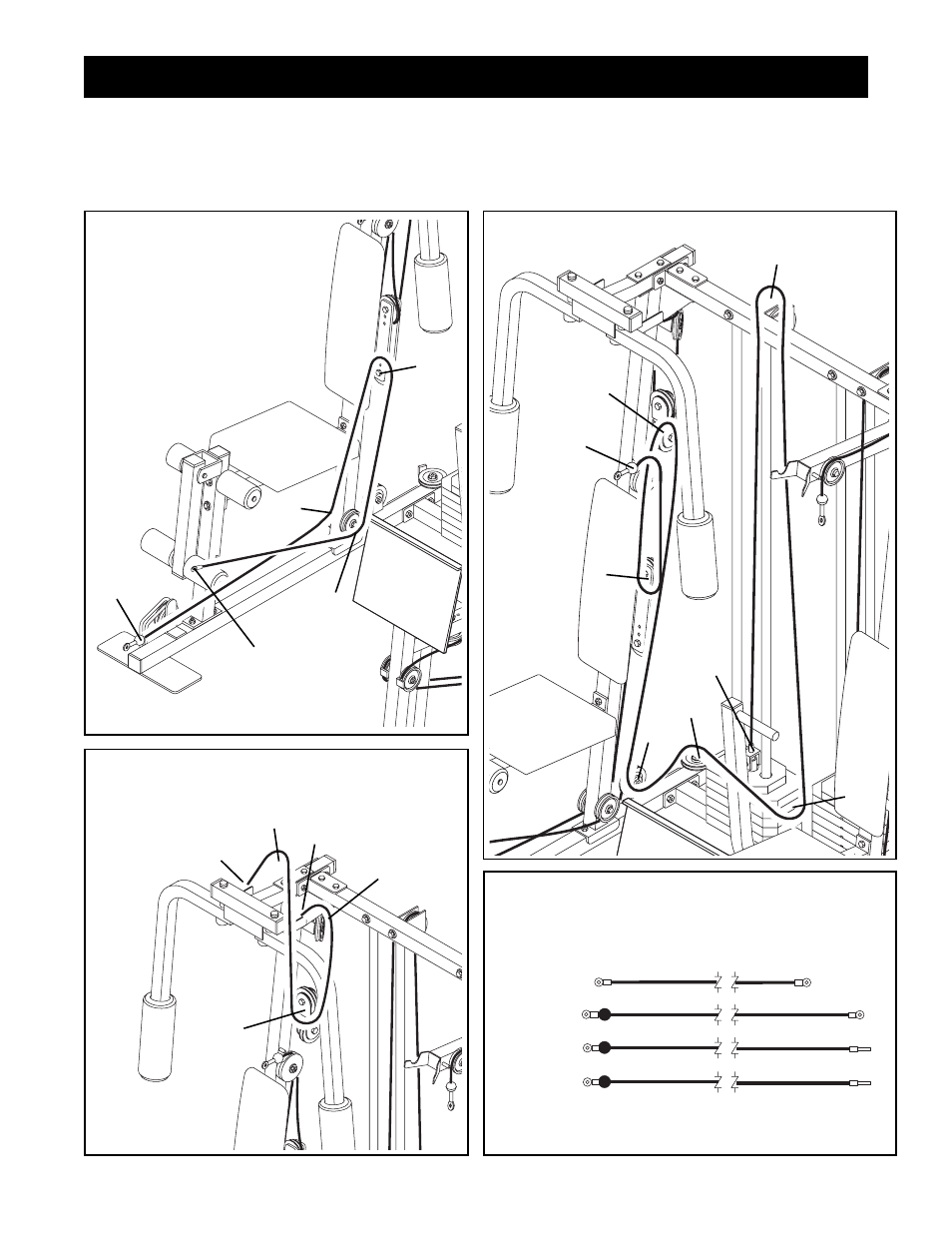

The cable diagrams below and on the next page show the proper routing of the Butterfly Cable (73), the Ab
Cable (74), the Low Pulley Cable (75) and the Press Cable (72). The numbers show the correct route for each
Cable.
Make sure that the Cables are routed correctly, that the Pulleys move smoothly, and that the
Cable Traps do not touch or bind the Cables. Incorrect cable routing can damage the home gym.
Low Pulley Cable (75)
5
4
3
1
2
Ab Cable (74)
7
3
1
4
5
8
2
1
3
4
5
2
Butterfly Cable (73)
Cable ID Chart
73, 52”
75, 143.5”
74, 224”
72, 389.5”
6
