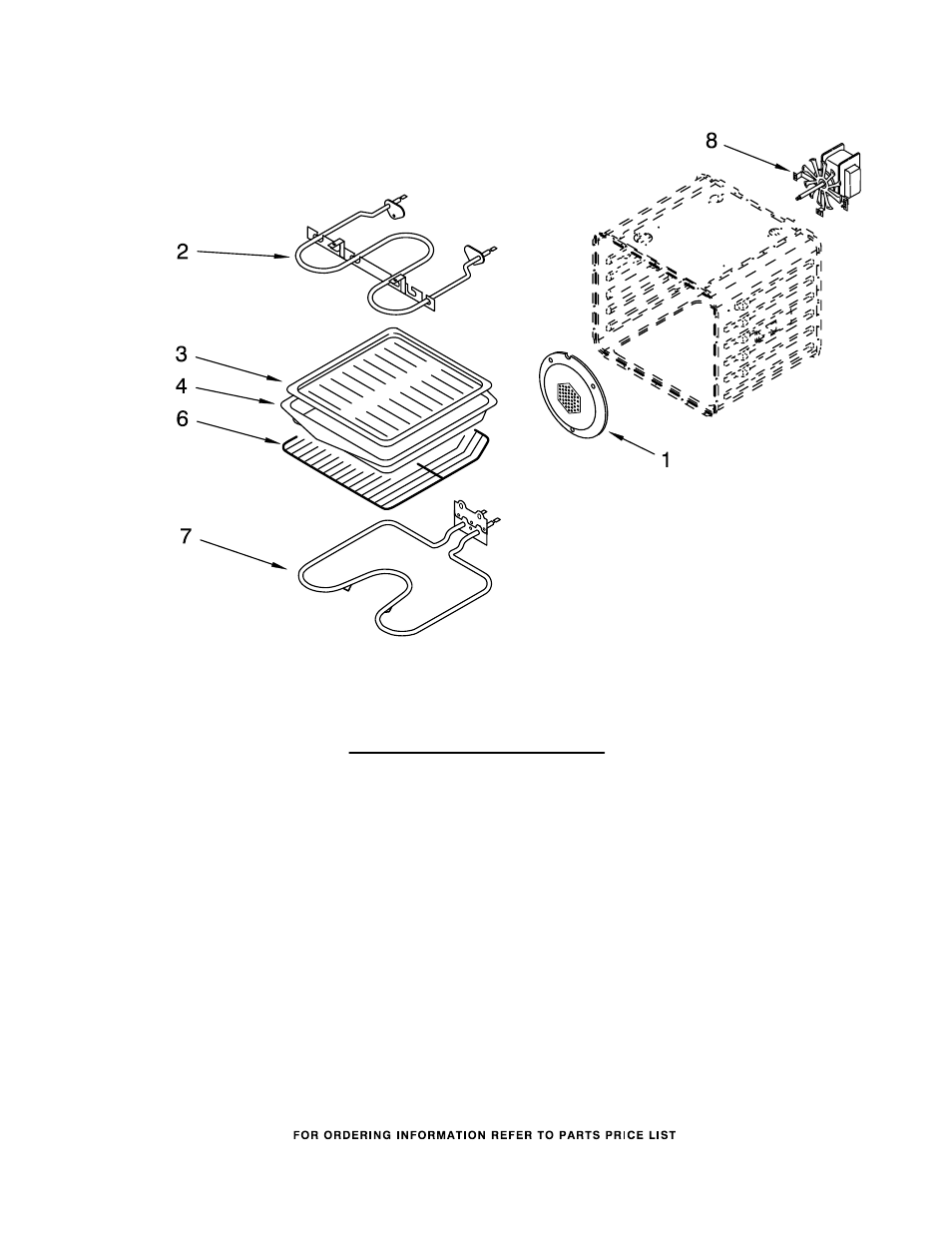

INTERNAL OVEN PARTS
7
For Models: GY398LXPB00, GY398LXPQ00, GY398LXPT00, GY398LXPS00
(Black) (White) (Biscuit) (S.Steel)
8186215
Illus. Part
No. No. DESCRIPTION
1
4448988 Cover, Fan
4449154 Screw
2
4456103 Element, Broil
4449154 Screw
3
4457277 Grill, Broiler
4
4457276 Pan, Broiler
6
4448717 Rack, Oven
7
4452153 Element, Bake
4449154 Screw
8
4451583 Motor, Convection
Fan
