Whirlpool RH2336XJQ0 User Manual
Range hood parts, Designer white)

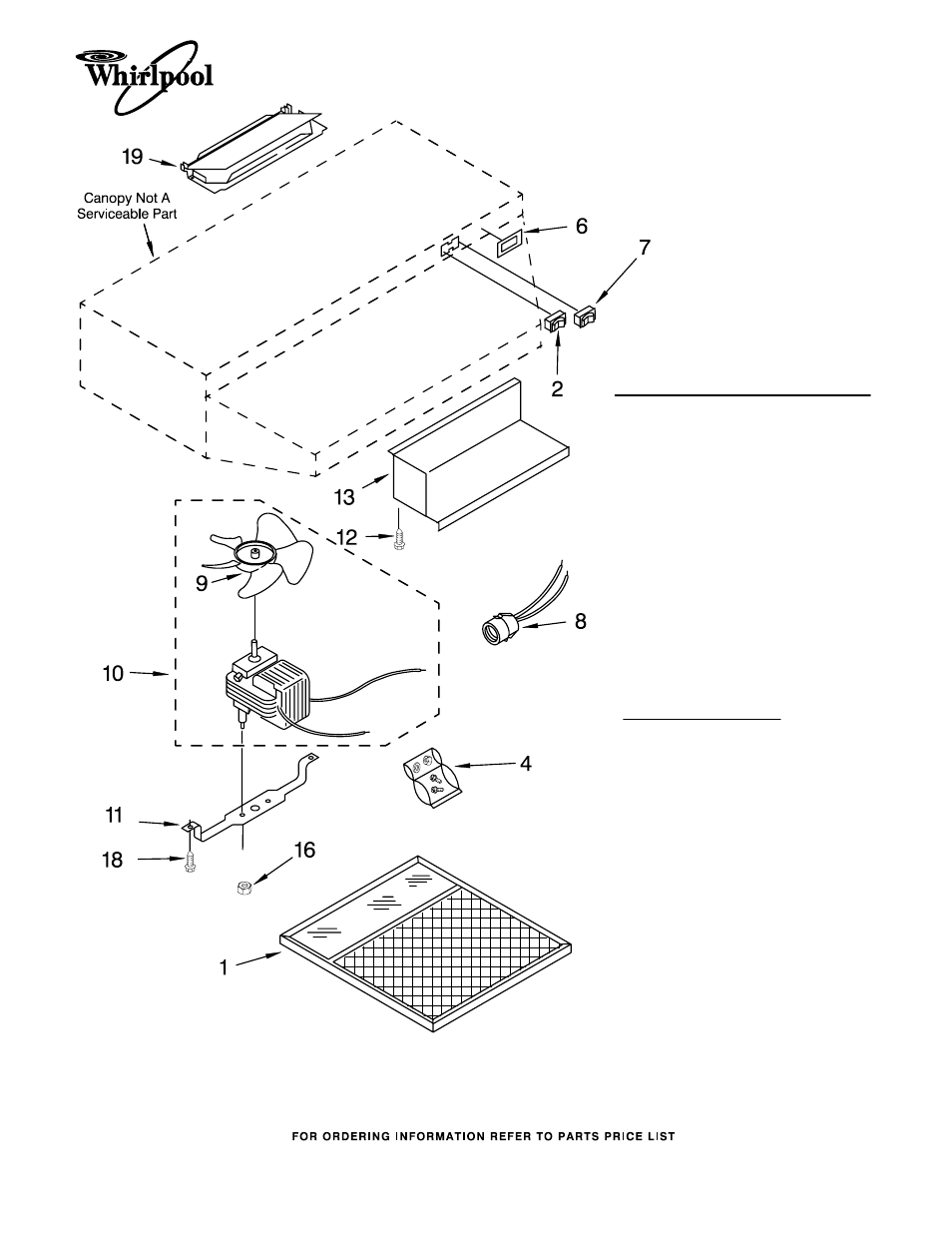

RANGE HOOD PARTS
1
(Designer White)
36" RANGE HOOD
(Vented)
(Use with Gas or Electric Range)
Illus. Part
No. No. DESCRIPTION
For Model: RH2336XJQ0
11−00 Litho in U.S.A. (rmb)
Part No. 8189634
1
883103 Filter, With Lens
2
883261 Switch, Light
4
883191 Installation
Hardware
6
8189511 Name Plate
7
883262 Switch, Fan
8
883094 Light Socket
9
830428 Blade, Fan
10
830757 Motor, 2−Speed
11
883126 Bracket, Motor
12
830465 Screw
13
883095 Cover, Wiring
16
883353 Nut, 6−32
18
884354 Screw,
19
830753 Damper
8−32 x 1/4 (2)
LITERATURE PARTS
LIT830735 Order Blank,
Filter
LIT883184 Wiring Diagram
LIT8284867 Installation
& Operating
Instructions
