8

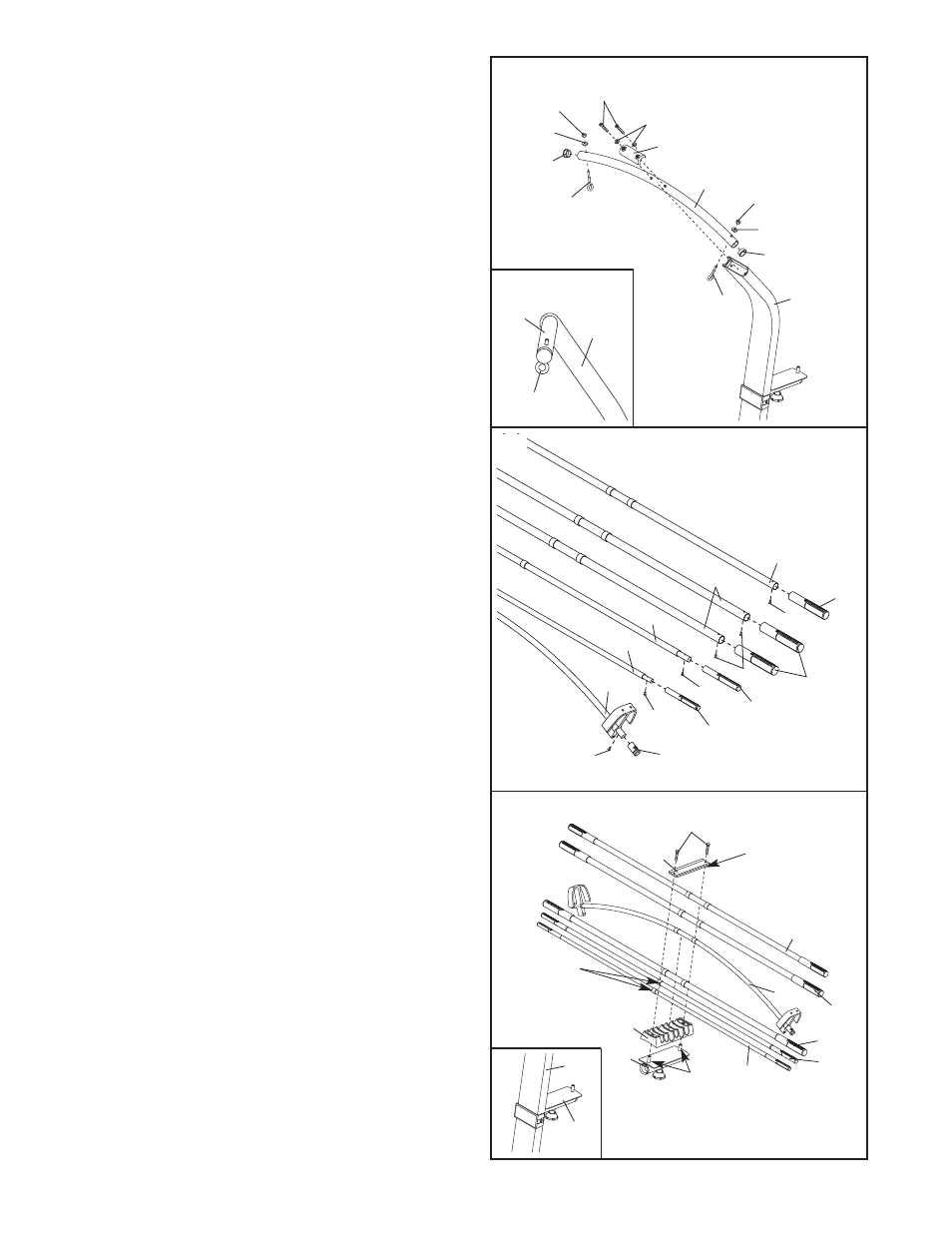

9.

Press two 38mm Round Inner Caps (38) into the
ends of the Top Frame (10).

Attach two Eyebolts (34) to the Top Frame (10)
with two M8 Washers (59) and two M8 Nylon
Locknuts (65).

Do not overtighten the Locknuts;

the Eyebolts must be able to rotate freely.

Attach the Top Frame (10) to the Lat Tower (4)
with two M10 x 65mm Button Head Screws (70),
two M10 Washers (75), and the Top Frame Cover
(93).

Make sure that the Eyebolts (34) are ori-

ented as shown in the inset drawing. If they
are not, turn the Top Frame around and reat-
tach it.

9

38

65

65

10

34

59

34

70

59

93

75

4

38

34

10

4

Side View

10. Attach the two 10-pound Short Resistance Caps

(20) to the 10-pound Center Resistance Bar (44)
with two M4 x 12mm Flat Head Screws (85).

Using ten M4 x 12mm Flat Head Screws (85),
attach the two 10-pound Resistance Caps (101)
to the 10-pound Removable Resistance Bar (67),
the two 20-pound Resistance Caps (88) to the
20-pound Removable Resistance Bar (36), the
four 80-pound Resistance Caps (100) to the two
80-pound Resistance Bars (95), and the two 40-
pound Resistance Caps (79) to the 40-pound
Resistance Bars (96).

10

79

88

101

20

100

67

36

95

96

85

85

85

85

85

44

11

86

72

Rings on

this side

96

95

95

44

36

67

18

Rods

Edges

up

35

18

4

11. Locate the Fulcrum (18) on the Lat Tower (4) (see

the inset drawing). Slide the Tray (35) onto the
rods on the Fulcrum.

Make sure the Tray is ori-

ented as shown in the drawing.

Set the Resistance Bars into the Tray (35) in the
following order: the 10-pound Removable
Resistance Bar (67), the 20-pound Removable
Resistance Bar (36), an 80-pound Resistance Bar
(95), the 10-pound Center Resistance Bar (44), an
80-pound Resistance Bar (95), and the 40-pound
Resistance Bar (96).

Make sure the indicated

rings are on the side shown and the arrows
point toward the Tray.

Attach the Cover Plate (72), with the edges up, to
the Tray (35) with two M8 x 19mm Button Head
Screws (86).
