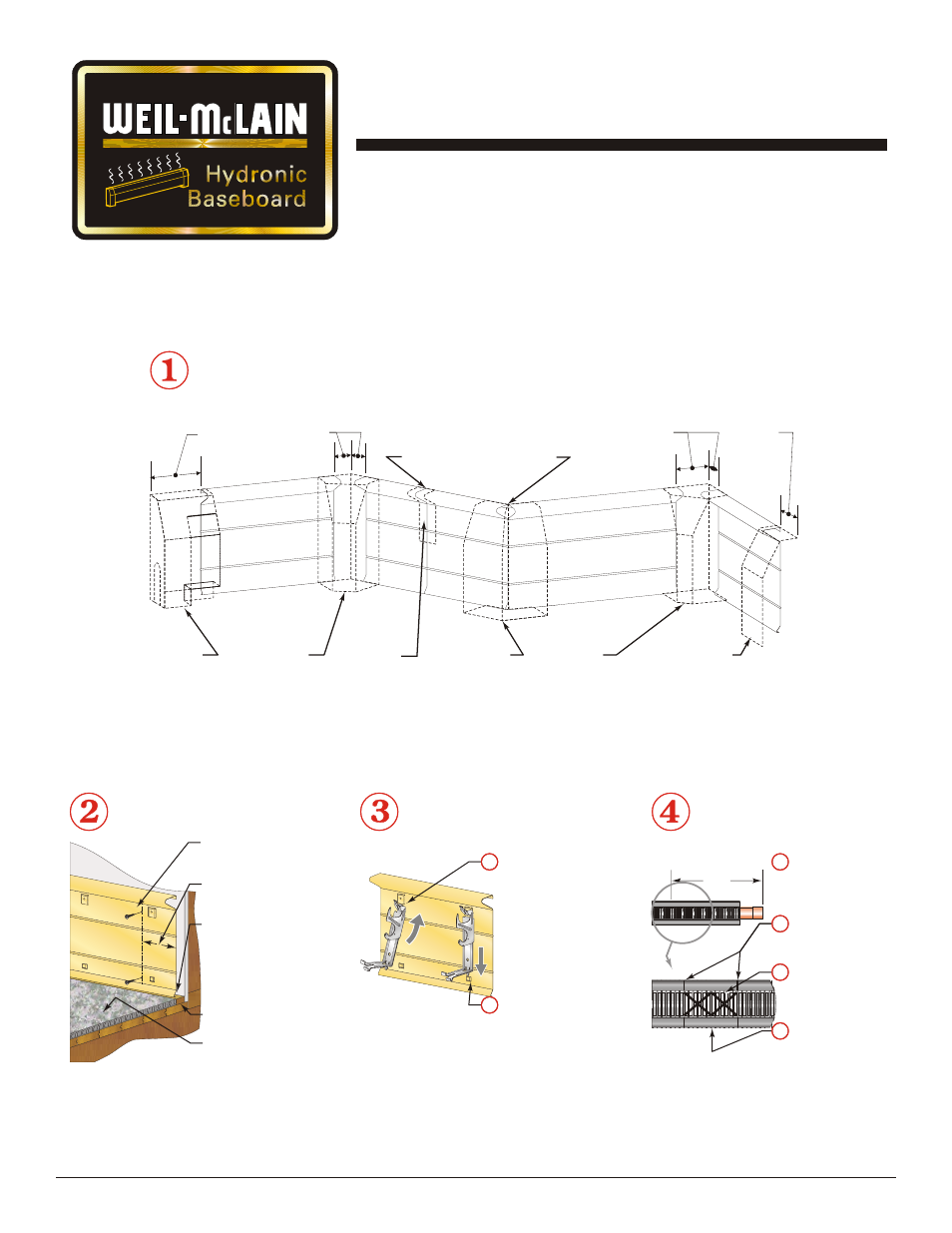

Position back panels

Back panels must be positioned correctly to accommodate accessories, as shown below.

Hinged

end cap

Inside

bay corner

Outside

corner

Splice

Inside

corner

Plain end cap

or wall end

Min 3 ¾"

Max 4 ½"

Min 1

Z\v

"

Max 1

>|zn

"

Min 0"

Max 2

Z|x

"

Butt back panels together.

Min 3"

Max 3

Z\v

"

T

HERMA

T

RIM

MODEL TT HYDRONIC BASEBOARD

ASSEMBLY INSTRUCTIONS

Attach back panel to wall

Screw or nail into wall
studs at top and bottom.

No closer than 3 inches
from end of panel.

Bottom of panel must
never be lower than the
surface of the finished
floor or carpet.
Add shim as shown if
necessary.

Shim (if needed)

Finished floor surface
or carpeting.

Install brackets

Position brackets evenly along length of
panel, approximately every 2 feet.

Insert top bracket tab
into top slot in back
panel.

Press bracket flat
against back panel
and slide down so
bottom tab enters
bottom slot in back
panel.

a

b

New

length

Cut element

When a shorter length is needed

Measure from the
female end for the
required length.

Cut copper using
tube cutter and
ream to remove
burrs.

New

length

a

Remove 6 fins on
each side of the
location to be cut.

c

Cut glide rails with
tin snips.

b

d
