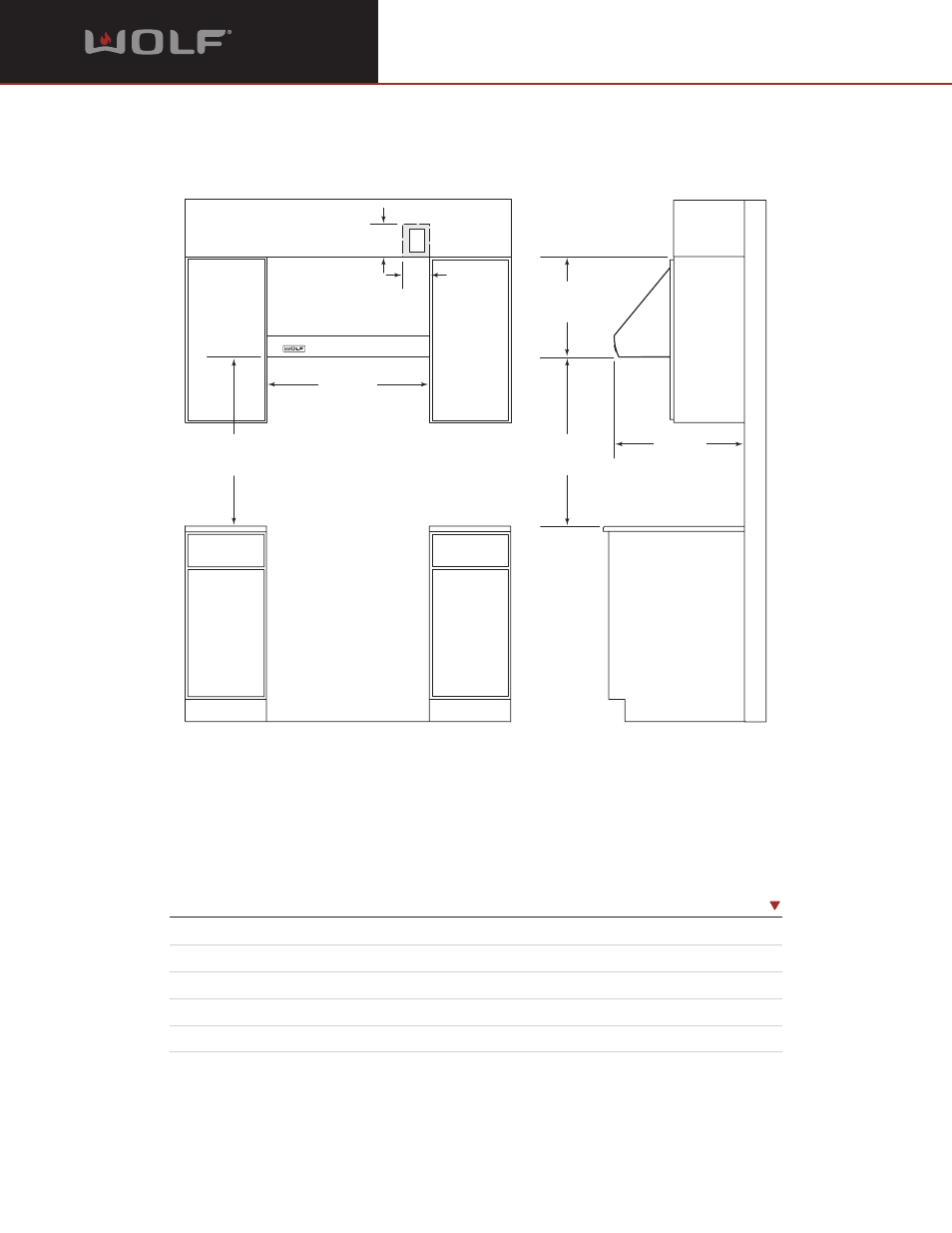

30" (762)
WIDTH OF HOOD
NOTE: Horizontal discharge is only applicable on 24" (610) deep wall hoods with a remote blower. Horizontal discharge cannot be
used with an internal blower.
30" TO 36"
(762–914)
TO COUNTERTOP
30" TO 36"
(762–914)
TO COUNTERTOP
18" (457)
HEIGHT
OF HOOD
24" (610)
DEPTH OF HOOD
E
6"
(152)
5"
(127)
LOCATION OF
ELECTRICAL
D I M E N S I O N S
Overall Width of Hood 30" (762)
Overall Height of Hood 18" (457)
Overall Depth of Hood (excluding rail) 24" (610)
Countertop to Bottom of Hood 30" (762) to 36" (914)
Location of Electrical Within shaded area
See Installation Instructions shipped with unit for detailed specifications.
I N S T A L L A T I O N S P E C I F I C A T I O N S
Dimensions in parentheses are in
millimeters unless otherwise specified.
Planning Information
Pro 24" (610) Deep Wall Ventilation Hood
M O D E L P W 3 0 2 4 1 8 ( R )
