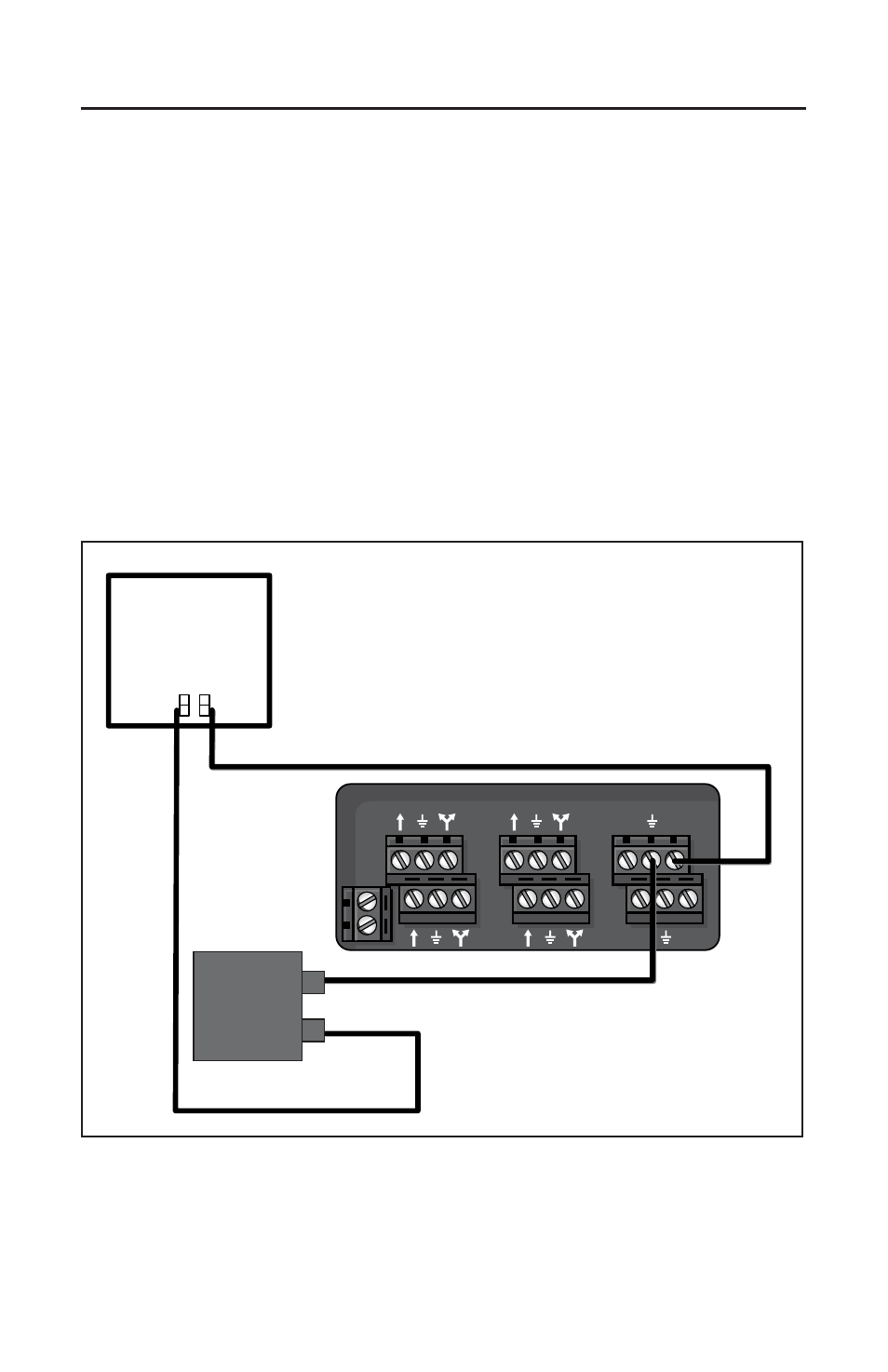

Figure 3. Wiring for Command operation with an SC-2
Operating your Dumbo Pylon with TrainMaster Command Control
Y
ou may choose to wire your accessory with an SC-2 Switch and Accessory Controller
(available separately, 6-22980) or the Accessory Switch Controller (available separately,
6-14182). Refer to these manuals for additional information.
SC-2 wiring and operation
Three wires (not included) are needed to connect your Pylon to the SC-2 and a separate
accessory transformer. We recommend using 22 gauge wire. Refer to Figure 3.
1. Attach one wire to the transformer Common/Ground/U terminal and connect it to the
accessory COMM (common) position on the SC-2.
2. Connect one of the Pylon terminals to the accessory ON/OFF toggle position on the SC-2.
3. Finally, connect the remaining Pylon terminal to the transformer Power/A terminal.
Use the AUX2 button on your CAB-1 Remote Controller to toggle the Pylon ON and OFF.
