Woods Equipment FZ - Manual (Page 2)

t
ruefloat
™
dEcK suspEnsion
and
p
ower
t
ilt
™
option
Woods Equipment Company 2606 South Illinois Route 2, PO Box 1000, Oregon, Illinois 61061 tel 800-319-6637 www.WoodsEquipment.com
spEciFications FZ23B FZ28K FZ25d FE21B
Horsepower 23 gas 28 gas 25 diesel 21 gas
Engine Vanguard V-Twin OHV Kawasaki V-Twin OHV Kubota 3-cylinder Liquid-cooled Vanguard V-Twin OHV
Lubrication Full pressure with spin-on filter Full pressure with spin-on filter
Air Filter System Dual-clean/pleated with foam
pre-cleaner
Heavy-duty canister style—
dual element
Heavy-duty canister style—
dual element
Dual-clean/pleated with foam
pre-cleaner
Fuel Capacity 11 gallons 11 gallons 11 gallons 6 gallons
Speed (forward) 10 mph 10 mph 12 mph 9 mph
Drive System Twin hydrostatic pumps and separate wheel motors; spin-on automotive style oil filter -- uses 20w50
weight oil
10 cc hydrostatic pumps, sep. whl. mtrs., spin-on
oil filter, uses 20w50 weight oil
Drive Tires 23" x 10.5" — 12 23" x 10.5" — 12 23" x 10.5" — 12 20" x 11" — 10
Decks Available MX — 54", 61" MX — 54", 61"/ AT — 72"* MX — 54", 61" Pro 52"* or 61"*
Deck Design
(except 72") Fabricated 5" deep deck with welded bumper and patented V-Baffle system, TrueFloat deck suspension,
3-bearing greasable spindles
Fabricated full float deck with welded bumper;
large, sealed bearings
Cutting Height 1" — 5" 1" — 5" (1" - 4.5" for 72") 1" — 5" 1"— 5"
Blade Tip Speed 17,800 fpm for 54"; 18,400 fpm for 61"; 17,800 for 72" 19,000 fpm
Deck Tilt/Height Adjust PowerTilt option on MX deck with power height adjustment Manual tilt and height adjust (no power tilt option)
Est. Weight w/61" Deck 1,457 lbs. 1,472 lbs. 1,431 lbs. 1,080 lbs.
Features Fully adjustable suspension seat, cup holder, storage compartment, hour meter, flexible ShrubSaver,
discharge chute
Adjustable comfort seat, hour meter
Options Available Mulch kits, headlights, tire chains, dozer blade, broom, blower-driven bagger, snow thrower, ROPS, cab Blower-driven bagger, mulch kits, suspension seat
Warranty 2 years or 2,000 hours commercial or consumer use
*PowerTilt will not fit these decks.

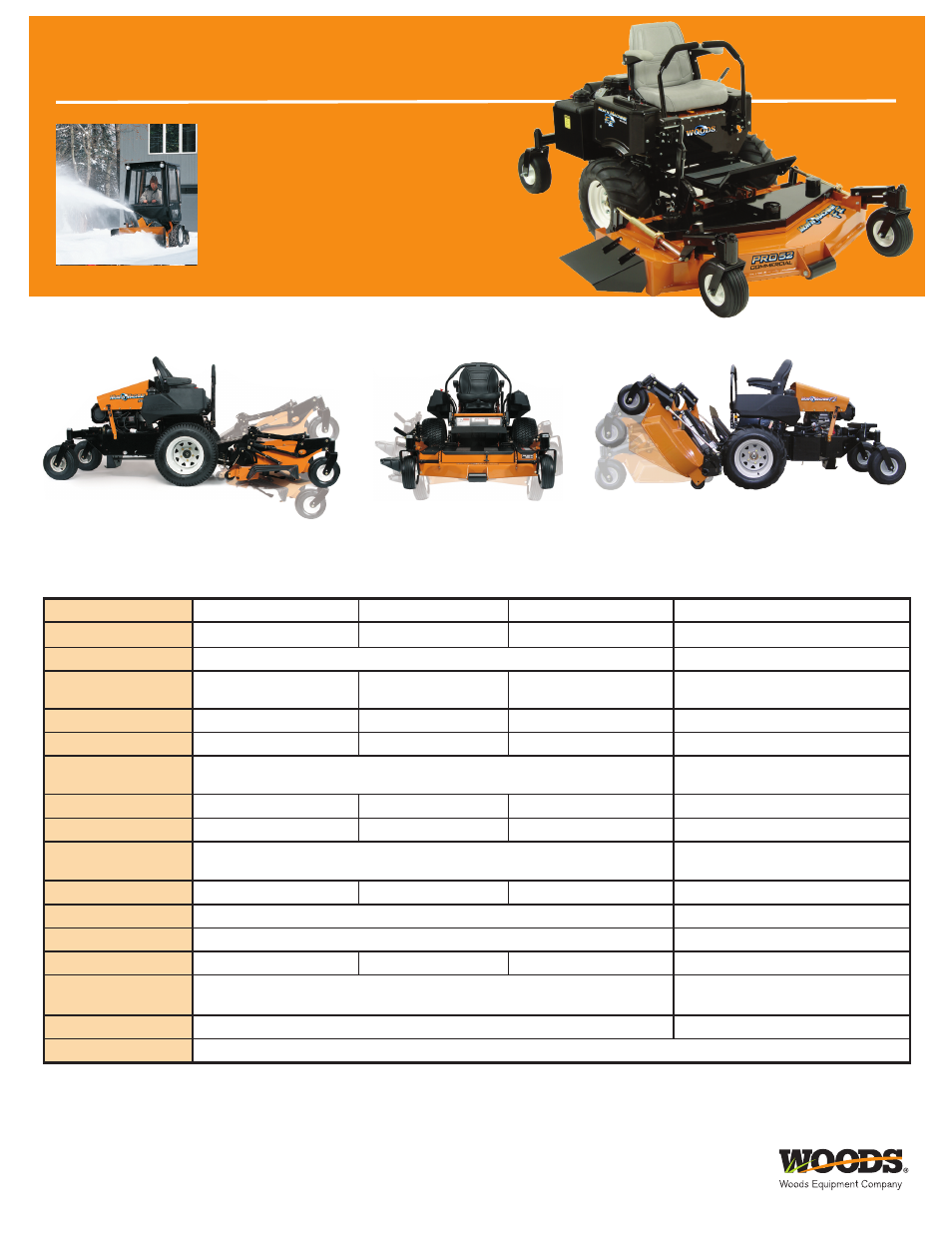

Woods fZ-FE SerieS
Easily custoMiZEd
A wide variety of attachments
turn your FZ tractor into so
much more. Snow thrower,
sweeper, and dozer blade
make the Woods Mow'n
Machine an "All-Season
Performer."
Woods model FE21B
with Pro 52" Deck.
TrueFloat technology and large deck caster wheels make climbing tall curbs
easy, while preventing scalping and making cutting in rough areas even easier.
PowerTilt electrically lifts deck allowng
for easy maintenance (optional on FZ models)
Warning! Some images may show safety equipment removed to provide a better view. Equipment should never be operated without safety equipment. Some machines in this brochure may be
shown with optional equipment. Always operate machines in accordance with supplied operator’s manuals. ©2007 Woods Equipment Company. All rights reserved. WOODS, the Woods logo,
“Tested. Proven. Unbeatable.”, and WoodsCare are trademarks of Woods Equipment Company. All other trademarks, trade names, or service marks not owned by Woods Equipment Company
that appear in this brochure are the property of their respective companies or mark holders. Specifications subject to change without notice. B-10061B
contact your local Woods dEalEr to discovEr thE “tEstEd. provEn. unBEataBlE.” ™ advantagE oF our FZ- and FE-sEriEs coMMErcial-gradE/rEsidEntial ZEro-turn MoWEr.
