7

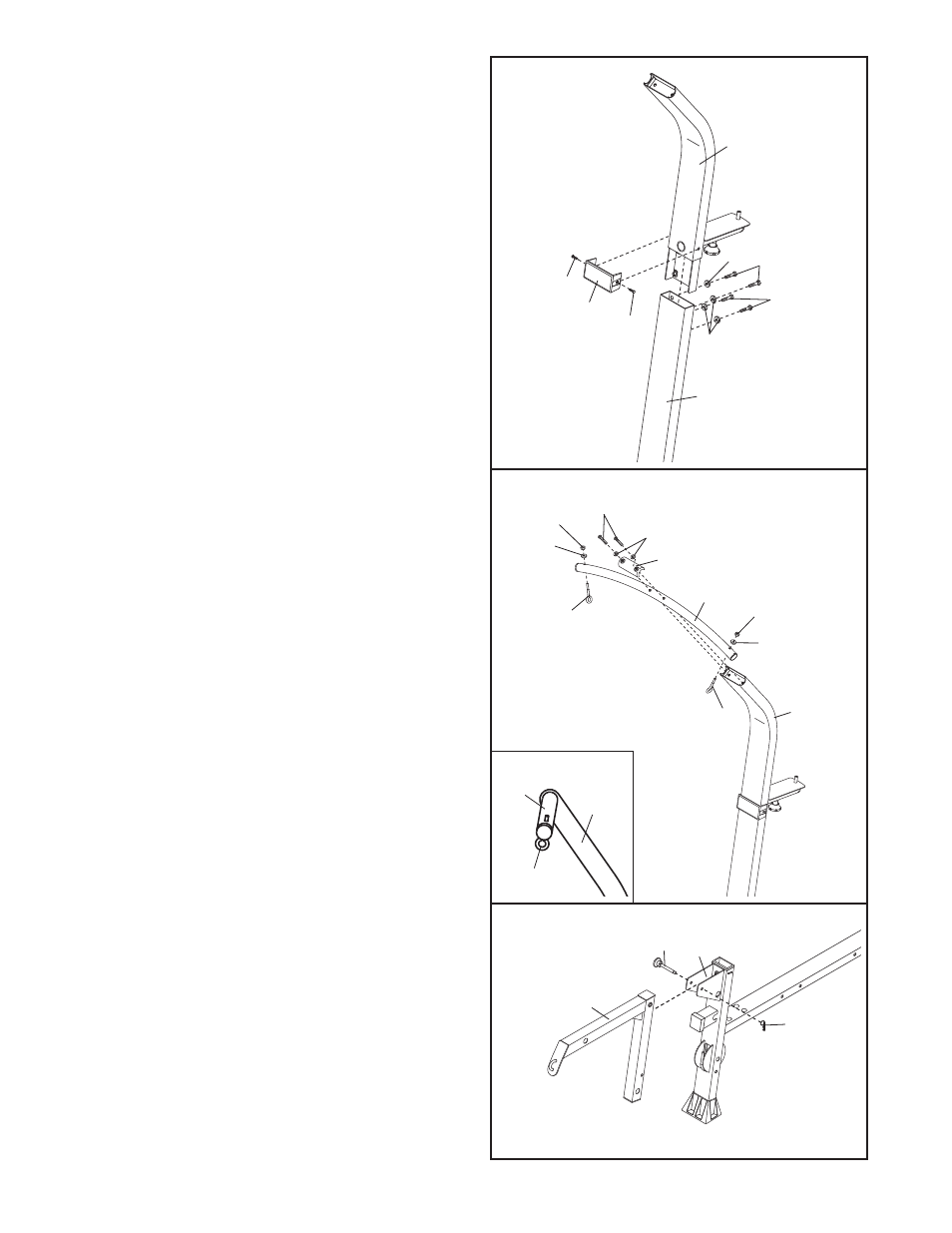

8. Attach the Leg Lever (7) to the Front Leg (6) with
a Long Pin (107) and a Cotter Pin (108).
8
6
7
108
107
6. Attach the Lat Tower (4) to the Upright (3) with
four M10 x 25mm Button Screws (87), and four
M10 Lock Washers (103).
Attach the Name Plate (89) to the Lat Tower (4)
with two M4 x 16mm Screws (62).
6
4
3
89
62
62
87
87
103
103
7. Attach two Eyebolts (34) to the Top Frame (10)
with two M8 Washers (59) and two M8 Nylon
Locknuts (65).
Do not overtighten the Locknuts;
the Eyebolts must be able to rotate freely.
Attach the Top Frame (10) to the Lat Tower (4)
with two M10 x 65mm Button Screws (70), two
M10 Washers (75), and the Top Frame Cover
(93).
Make sure that the Eyebolts (34) are ori-
ented as shown in the inset drawing. If they
are not, turn the Top Frame around and reat-
tach it.
7
65
65
10
34
59
34
70
59
93
75
4
34
10
4
Side View
