WHEELS & TIRES
KEY PART
NO. NO. DESCRIPTION
1 59192 Cap Valve Tire
2 65139 Stem Valve
3 106222X Tire F Ts 15 X 6 0 - 6 Service
4 59904 Tube Front (Service Item Only)
5 106732X427 Rim Asm 6"front White Service
6 278H Fit ting Grease (Front Wheel Only)
7 9040H Bear ing Flange (Front Wheel
Only)
8 106108X427 Rim Asm 8"rear White Service
9 106268X Tire R Ts 18x9.5-8 C Service
10 7152J Tube Rear (Service Item Only)
11 104757X428 Cap Axle Blk 1 50 X 1 00
- - 144334 Sealant, Tire (10 oz. Tube)
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION KEY PART
NO. NO. DESCRIPTION
12 162392 Decal Grille
13 162391 Decal Deck
14 160396 De cal V-belt Schematic 42"
16 145005 Decal Battery Danger/Poison
20 64-1733-29 Decal HP Engine
- - 138311 Decal Lift Handle
- - 186073 Manual Owner’s English
- - 186074 Manual Owner’s French 1 157163 De cal Instruction Operat English
2 162398 Decal Steering
3 164578 De cal Hood Rh
4 164579 De cal Hood Lh
5 179128 Decal Deck “B”
6 170563 Decal Warning
7 162462 Decal Side Panel
9 171448 De cal Fender Logo
10 157140 De cal Danger English
11 181251 De cal Clutch/brake
6
2
1
5,8
4,10
3,9
11
7

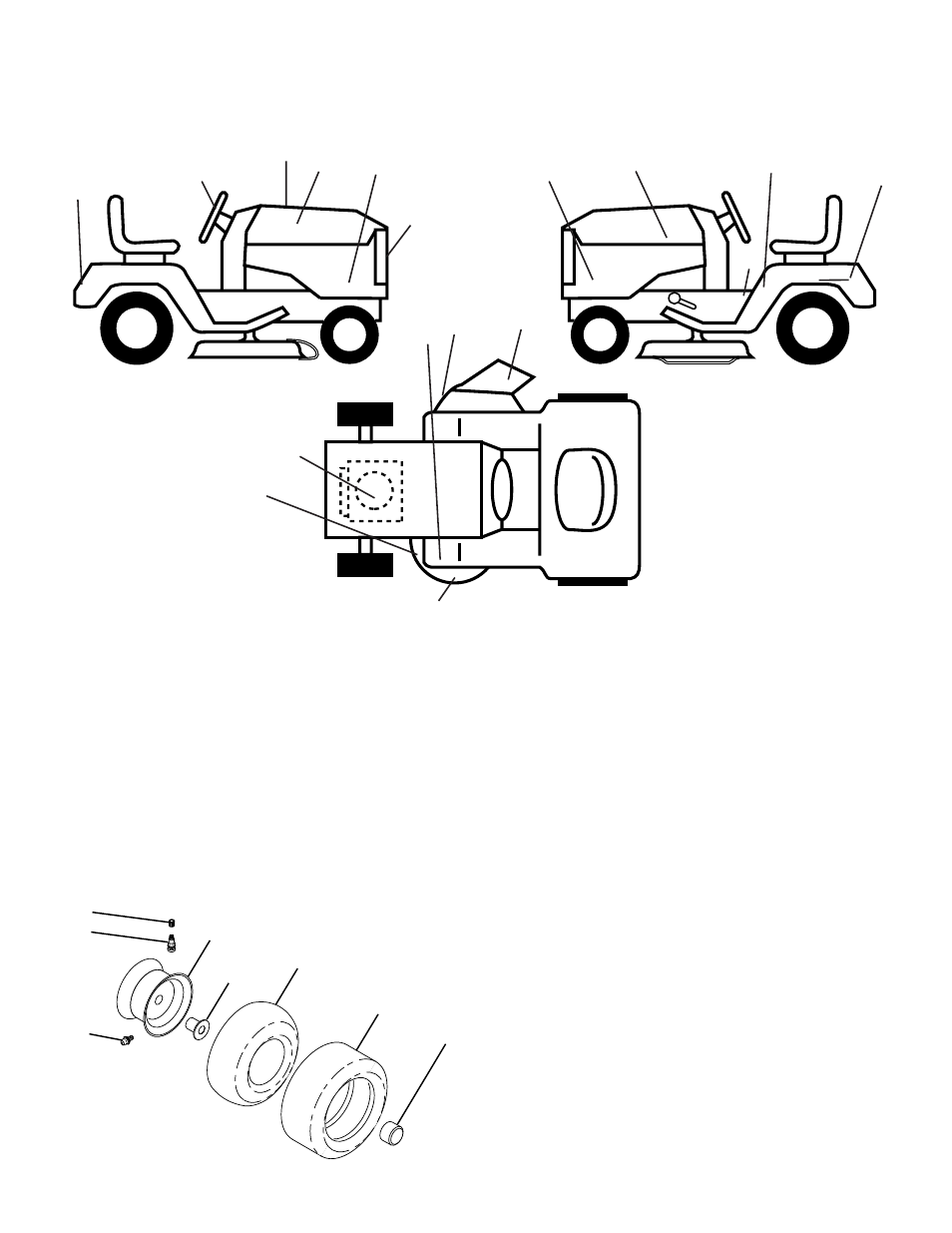

REPAIR PARTS
TRACTOR - - MODEL NUMBER WE165T42A, PRODUCT NO. 954 57 07-96
