4

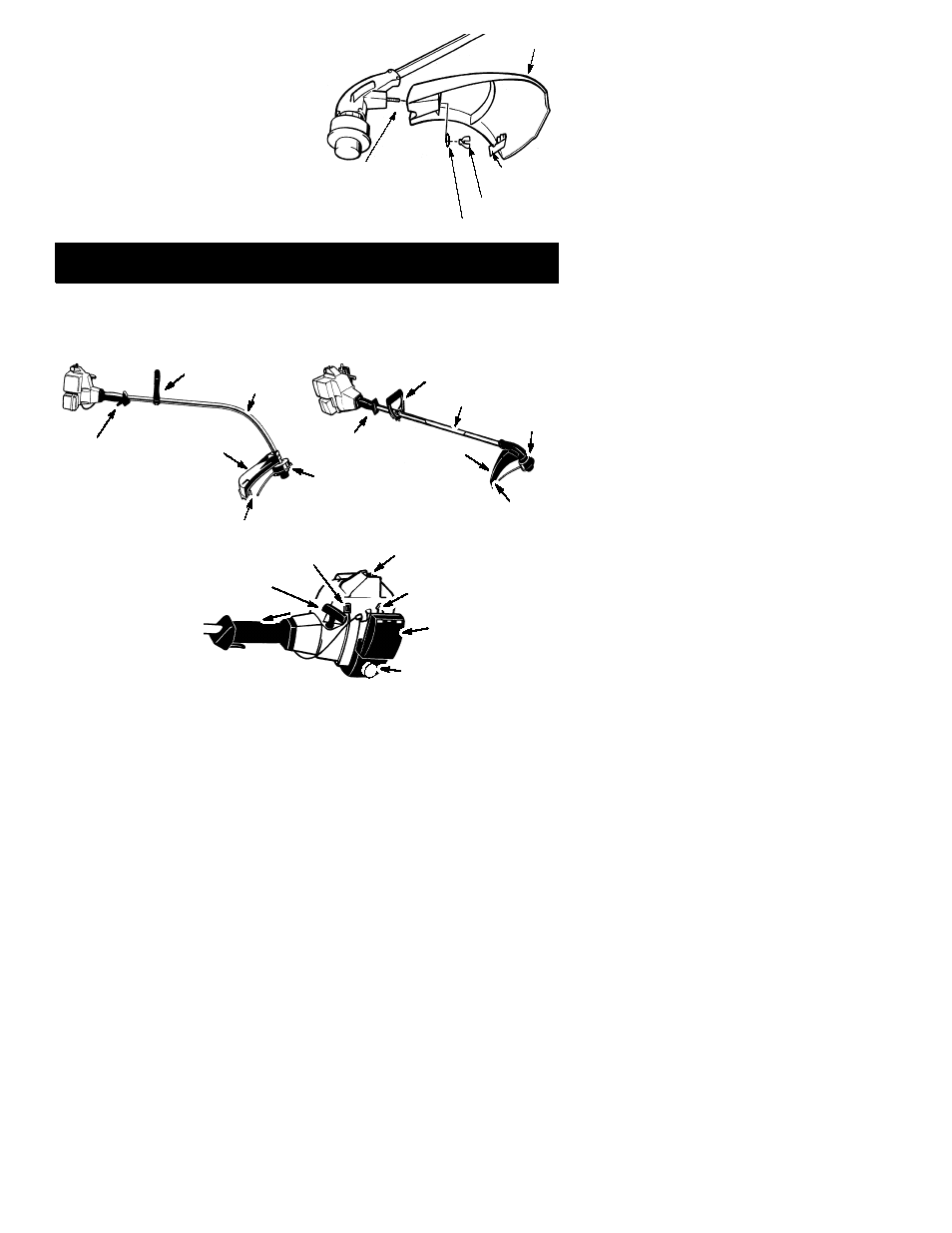

STYLE B
1. Remove washer and wing nut from shield.
2. Assemble parts as shown in illustration.
3. Securely tighten wing nut onto bolt.
Shield
NOTE: Remove
and use washer and
wing nut from this
bolt for assembling
shield.
Wing Nut
Washer
Line Limiter
Blade
OPERATION
KNOW YOUR TRIMMER
READ THIS INSTRUCTION MANUAL AND SAFETY RULES BEFORE OPERATING YOUR UNIT.
Compare the illustrations with your unit to familiarize yourself with the location of the various controls
and adjustments. Save this manual for future reference.
Primer Bulb
Fuel Mix Fill Cap
Assist Handle
Starter Rope
Handle
ON/STOP
Switch
Throttle Trigger
Choke Lever
Spark Plug
Shield
Trimmer Head
Tube
Line Limiter Blade
Shield
STYLE A STYLE B
Tube
Trimmer Head
Assist Handle
Line Limiter Blade
Throttle
Trigger
ON/STOP SWITCH
The ON/STOP switch is used to stop engine. To
stop the engine, push and release the engine
ON/STOP switch.
PRIMER BULB
The PRIMER BULB removes air from the car-
buretor and fuel lines and fills them with fuel.
This allows you to start the engine with fewer
pulls on the starter rope. Activate the primer
bulb by pressing it and allowing it to return to
its original form.
CHOKE
The CHOKE helps to supply fuel to the engine
to aid in cold starting. Activate the choke by
moving the choke lever to the FULL CHOKE
position. After the engine attempts to start, move
the choke lever to the HALF CHOKE position.
Once engine has started, move the choke lever
to the OFF CHOKE position.
